Description

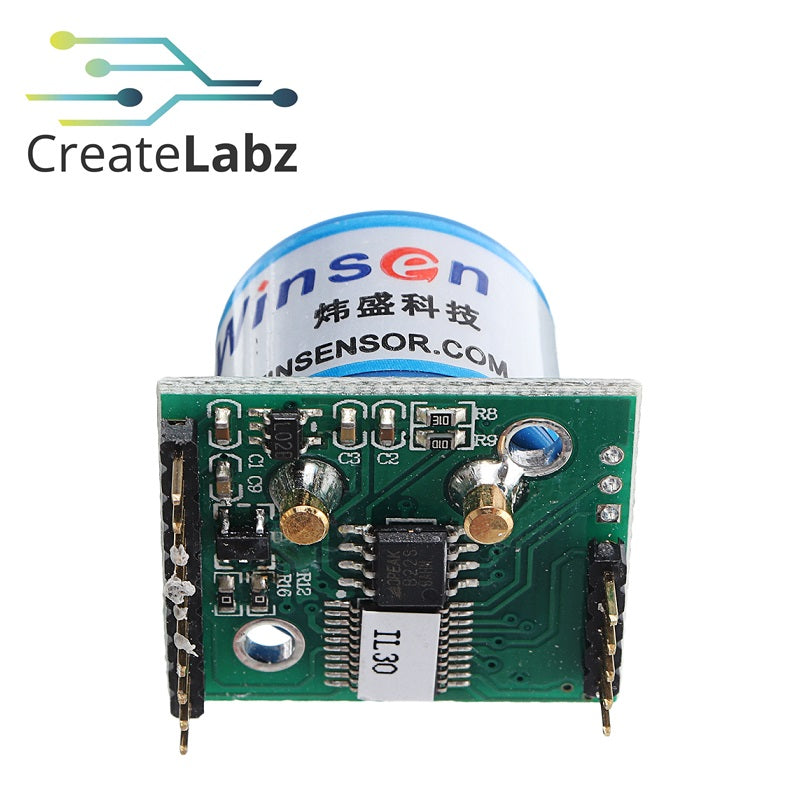

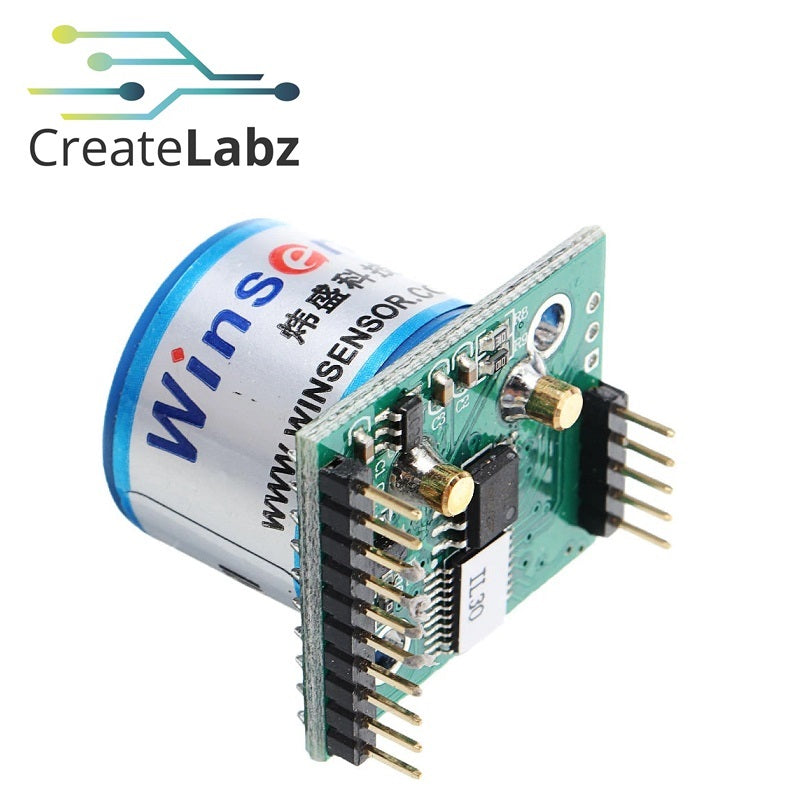

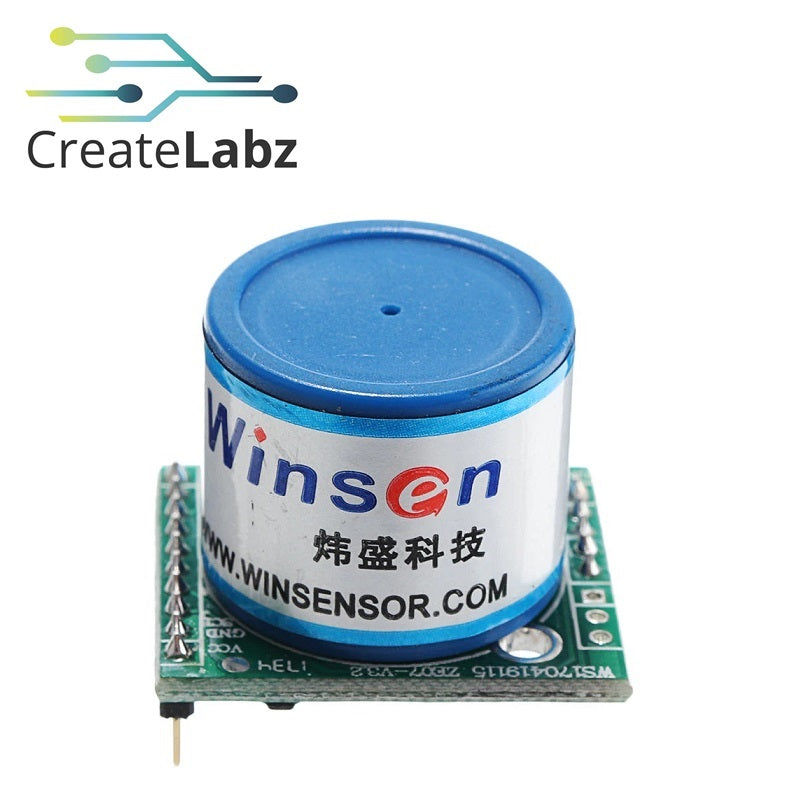

ZE07-CO is a general-purpose and miniaturization electrochemical carbon monoxide detection module. It utilizes electrochemical principle to detect CO in air which makes the module with high selectivity and stability. Built-in temperature sensor can do temperature compensation; and it has digital output and analog voltage output. It is a combination of mature electrochemical detection principle and sophisticated circuit design.
Features:
- High sensitivity & resolution& Stability
- Extremely low power consumption
- Provide UART/Analog Voltage output
- Excellent ability of Anti-interference
- Provide Temperature compensation
- Excellent Linear output
Specifications:
- Model No.: ZE07-CO
- Target Gas: CO gas
- Interference Gas: Alcohol and other gases
- Output Data:
- Ø DAC (0.4~2V standard voltage output correspondingto 0~full scale)
- Ø UART Output (3V-TTL Electrical Level)
- Working Voltage: 5V~12V (No voltage reverse connect protection)
- Warm Up Time: ≤3 minutes
- Response Time: ≤60s
- Resume Time: ≤60s
- Detection range: 0~500ppm
- Resolution: 0.1ppm
- Operating Temperature: -10°C~55°C
- Operating Humidity: 15%RH~90%RH (No condensation)
- Storage Temperature: -10°C~55°C
- Working Life: 3-5 years (in air)
Application:
- CO gas safety monitoring
- Air ventilation system,
- Kitchen, indoor garage, portable detector, etc
Package Includes:
1x ZE07 Electrochemical Carbon Monoxide
Note: Product Images are shown for illustrative purposes only and may differ from the actual products
