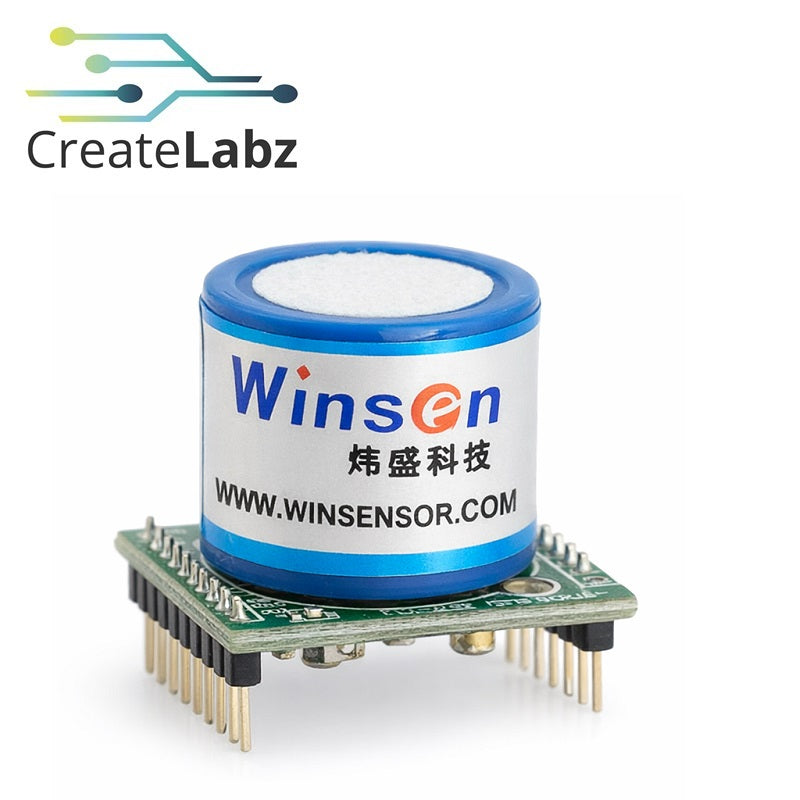

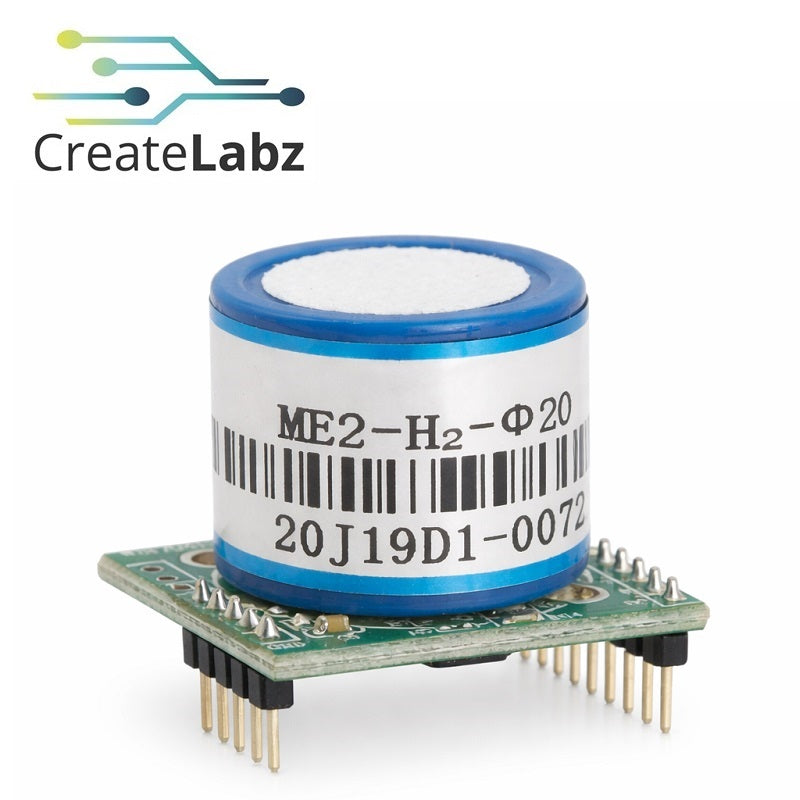

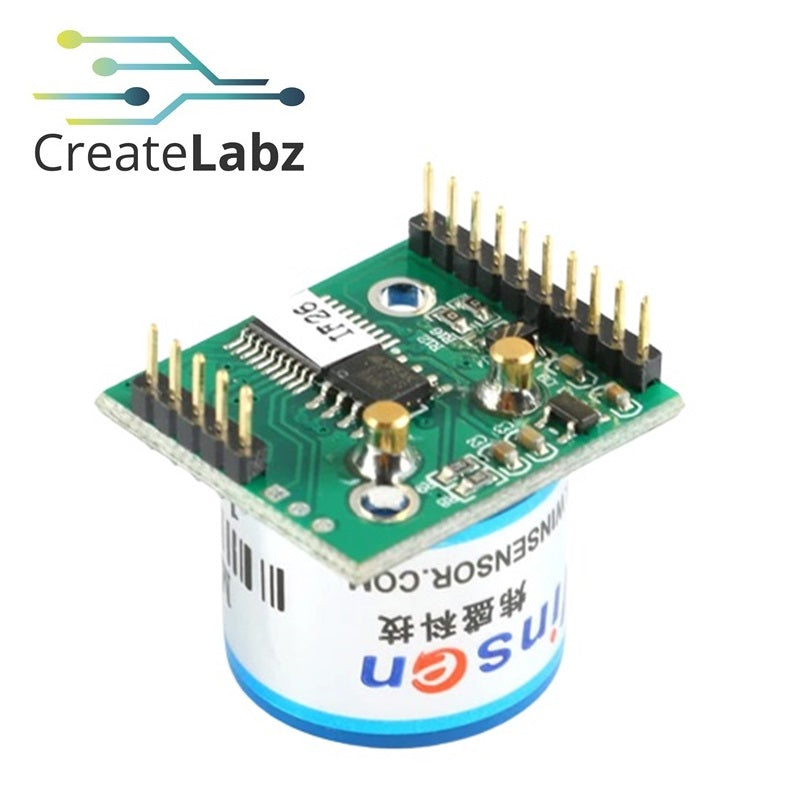

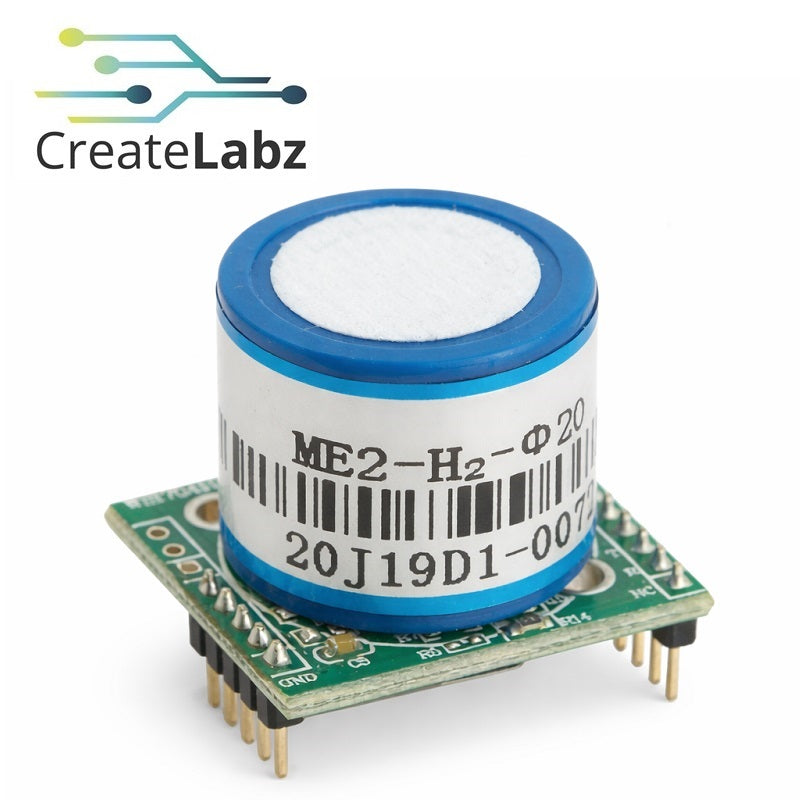

ZE07 Electrochemical Hydrogen (H2) Sensor Module

CreateLabz StoreSKU: 21-003

Price:
₱1,096

Shipping calculated at checkout

Stock:
Sold out

Description

ZE07-H2 is a general-purpose and miniaturization electrochemical hydrogen detection module. It utilizes electrochemical principle to detect H2 gas in air which makes the module with high selectivity and stability. Built-in temperature sensor can do temperature compensation; and it has digital output and analog voltage output. It is a combination of mature electrochemical detection principle and sophisticated circuit design.
Features:

  • High sensitivity & resolution& Stability
  • Extremely low power consumption
  • Provide UART/Analog Voltage output
  • Excellent ability of Anti-interference
  • Provide Temperature compensation
  • Excellent Linear output

Specifications:

  • Model No.: ZE07-H2
  • Target Gas: Hydrogen  gas
  • Interference Gas: Alcohol and other gases
  • Output Data:
  • Ø  DAC (0.4~2V standard voltage output correspondingto 0~full scale)
  • Ø  UART Output (3V-TTL Electrical Level)
  • Working Voltage: 5V~12V (No voltage reverse connect protection)
  • Warm Up Time: ≤3 minutes
  • Response Time: ≤60s
  • Resume Time: ≤60s
  • Detection range: 0~30000ppm
  • Resolution: 50ppm
  • Operating Temperature: -10°C~55°C
  • Operating Humidity: 15%RH~90%RH (No condensation)
  • Storage Temperature: -10°C~55°C
  • Working Life: 3-5 years (in air)

Application:

  • H2 gas leakage detection
  • Energy storage battery safety
  • Portable detector

Package Includes:
1x ZE07 Electrochemical Hydrogen
Note: Product Images are shown for illustrative purposes only and may differ from the actual products
