Description

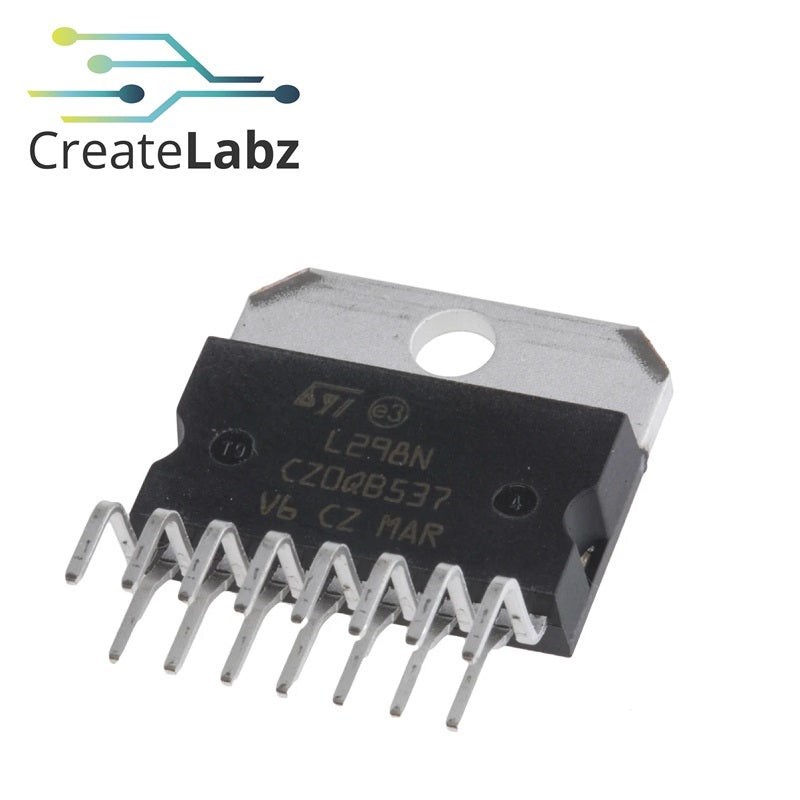

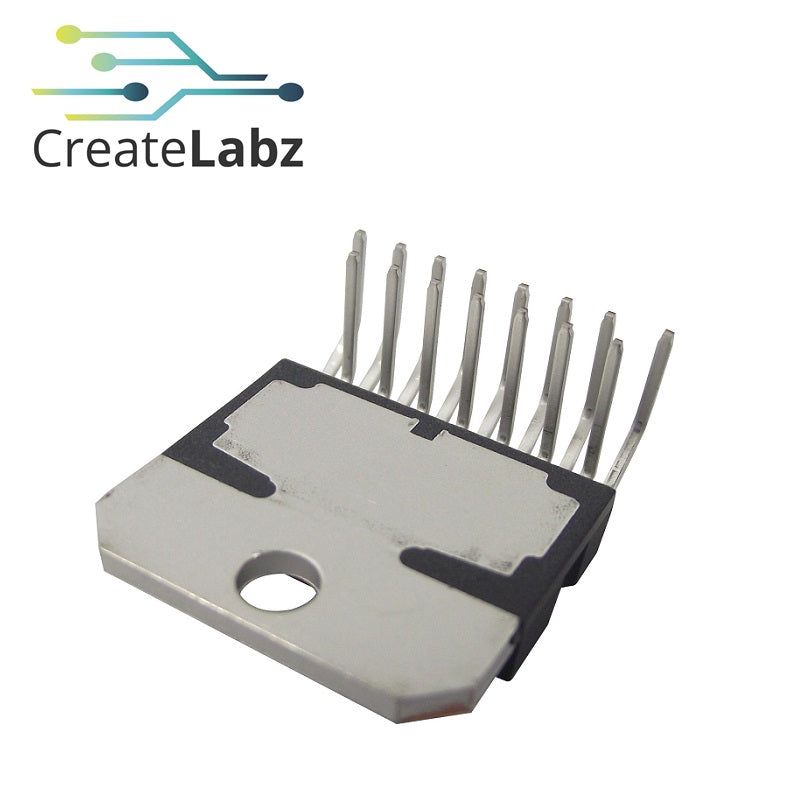

The L298 is an integrated monolithic circuit in a 15- lead Multiwatt and PowerSO20 packages. It is a high-voltage, a high current dual full-bridge driver designed to accept standard TTL logic levels and drive inductive loads such as relays, solenoids, DC, and stepping motors. Two enable inputs are provided to enable or disable the device independently of the input signals. The emitters of the lower transistors of each bridge are connected together, and the corresponding external terminal can be used for the connection of an external sensing resistor. An additional supply input is provided so that the logic works at a lower voltage.
Features:
- Low saturation voltage
- Over-temperature protection
- High noise immunity
- Applications: Motor Drive & Control
- Operating Supply Voltage Up To 46 V
- Total Dc Current Up To 4 A
- Low Saturation Voltage
- Overtemperature Protection
- Logical “0” Input Voltage Up To 1.5 V (High Noise Immunity)
- Device Marking: L298N
- Device Type: Brushed Motor
- Operating Temperature Range: -25°C to +130°C
- Supply Voltage Range: 4.5V to 7V
- Driver Case Style: Multiwatt
- No. of Pins: 15
Package Includes:
1x L298N Motor Driver Chip IC
Note: Product Images are shown for illustrative purposes only and may differ from the actual products
