Description
The Gravity: Analog TDS Sensor/Meter for Arduino is a kit that allows you to measure the total dissolved solids (TDS) in water using an Arduino board. TDS is a measure of the dissolved minerals, salts, and other substances in water, and can be used to reflect the cleanliness and quality of the water. This TDS meter kit can be used for a variety of applications, including testing the quality of domestic water, hydroponics, and other fields. It is compatible with Arduino boards and can be easily integrated into a variety of projects. Yes, the Gravity: Analog TDS Sensor/Meter for Arduino is designed to be compatible with a wide range of voltage inputs, from 3.3V to 5.5V, making it compatible with both 5V and 3.3V control systems or boards. It also has an analog voltage output range of 0V to 2.3V, which allows it to be easily integrated into a variety of projects. One of the key features of this TDS sensor is its use of an AC signal as the excitation source. This can help prevent polarization of the probe, which can extend its lifespan and improve the stability of the output signal. Additionally, the TDS probe is waterproof, allowing it to be immersed in water for long periods of time for measurement purposes.
Attention:
1.The probe can not be used in water above 55 degrees centigrade.
2.The probe can not be left too close to the edge of the container, otherwise, it will affect the reading.
3.The head and the cable of the probe are waterproof, but the connector and the signal transmitter board are not waterproof. Please be careful.
Features:
- Wide Voltage Input: 3.3~5.5V
- Good Compatibility Output: 0~2.3V analog signal output, compatible with 5V or 3.3V controller
- AC Excitation Source: effectively prevent the probe from polarization
- Waterproof Probe
- Easy to Use: Arduino compatible, simple connection, plug, and play without soldering
Specifications:

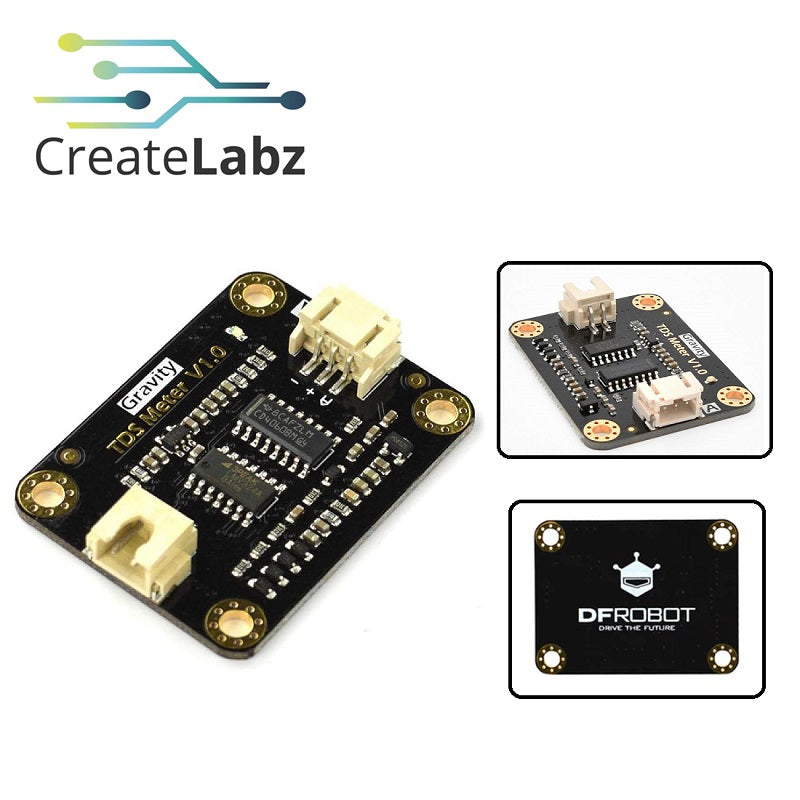

- Signal Transmitter Board
- Input Voltage: 3.3 ~ 5.5V
- Output Voltage: 0 ~ 2.3V
- Working Current: 3 ~ 6mA
- TDS Measurement Range: 0 ~ 1000ppm
- TDS Measurement Accuracy: +- 10% F.S. (25 C)
- Module Size: 42 x 32mm
- Module Interface: PH2.0-3P
- Electrode Interface: XH2.54-2P
TDS probe:
- Number of Needles: 2
- Total Length: 83cm
- Connection Interface: XH2.54-2P
- Color: Black
- Other: Waterproof Probe

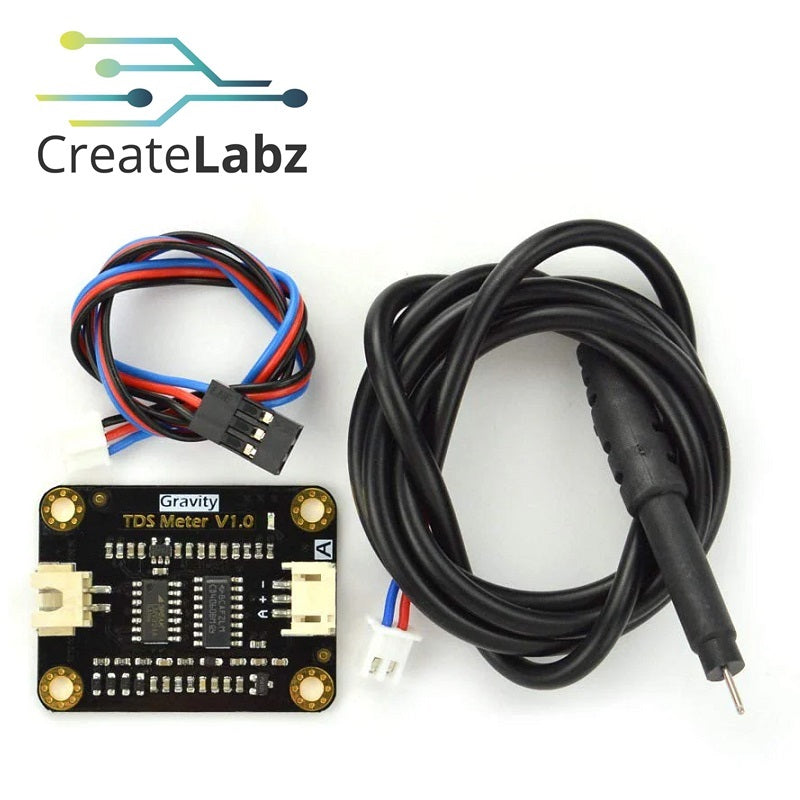

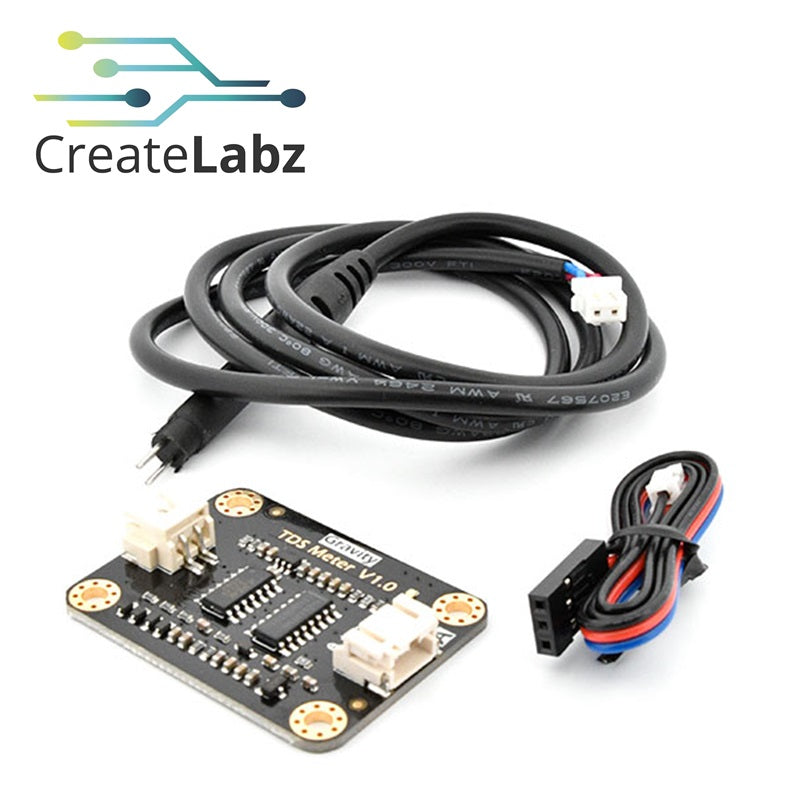

Package Contents:
- Analog TDS Meter for Arduino x1
- Waterproof TDS Probe x1
- 3Pin Analog Sensor Cable x1
Note: Product Images are shown for illustrative purposes only and may differ from the actual products.
