Description

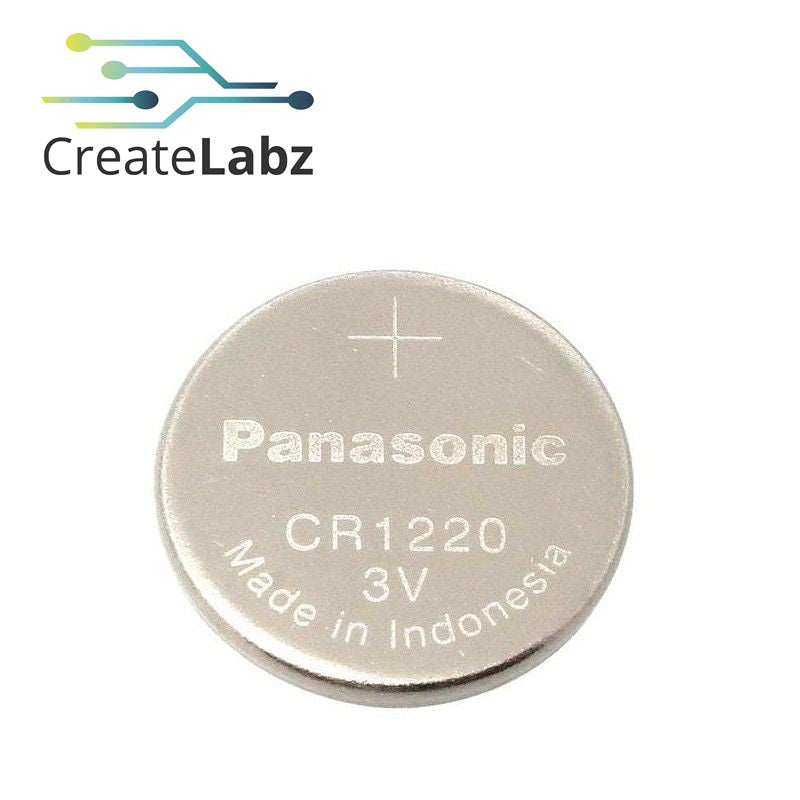

This CR1220 3V Button Cell Battery is normally called the coin cell as the size and shape is similar to a coin. Besides, the code CR1220 tells us the diameter and height of the cell. The diameter is 12mm whereas the height is 2mm. It looks small and thin, but it is capable of delivering an output voltage of 3V (nominal). For devices where traditional batteries cannot be used, Lithium Coin CR1220 has a proven track record. You can use the batteries for digital watches, laser pens, calculators, fitness appliances, car keys, and medical devices like a tensiometer and a clinical thermometer. These batteries can be stacked (in series) to make a 6V CR1220-sized pack of batteries. By the way, this coin cell battery is Non-Rechargeable, DO NOT charge it.
Features:
- Ultra-compact power: The Panasonic lithium coin CR1220 battery has a high voltage of 3V and an ultra-compact design, which means lots of power in one battery. So when you needed two, three, or more traditional batteries, now you only need one lithium battery. Your small devices are by this provided with a powerful source of energy.
- High reliability and safety: Repeated tests were conducted by Panasonic on the various performance and safety characteristics of the Lithium Coin CR1220 battery. Also the effects of environmental factors such as temperature were tested. A wealth of corroborative data on the performance of the Panasonic batteries has been accumulated and this cannot be pinpointed by short-term accelerated tests. The result is that Panasonic have won approval under the UL safety standards in the United States and wide recognition throughout the world for their high reliability and safety.
- Very low self-discharge: Because the Panasonic lithium coin CR1220 batteries are chemically very stable, they still have 90% of their original capacity even after 10 years. The stability is the result of the combination of lithium and manganese dioxide. The long-lasting function of these batteries has been verified at all operating temperatures under low-load discharge conditions.
Specification:
- Can be used in a wide range of temperatures (-30°C to +60°C)
- High voltage (3V)
- Self-discharge is very low; long shelf life of up to 10 years
- A full line up for use in a wide variety of applications
- No mercury added
- Very high weight-to-power ratio
- High leak protection
- Diameter: 12.5 mm
Packing list:

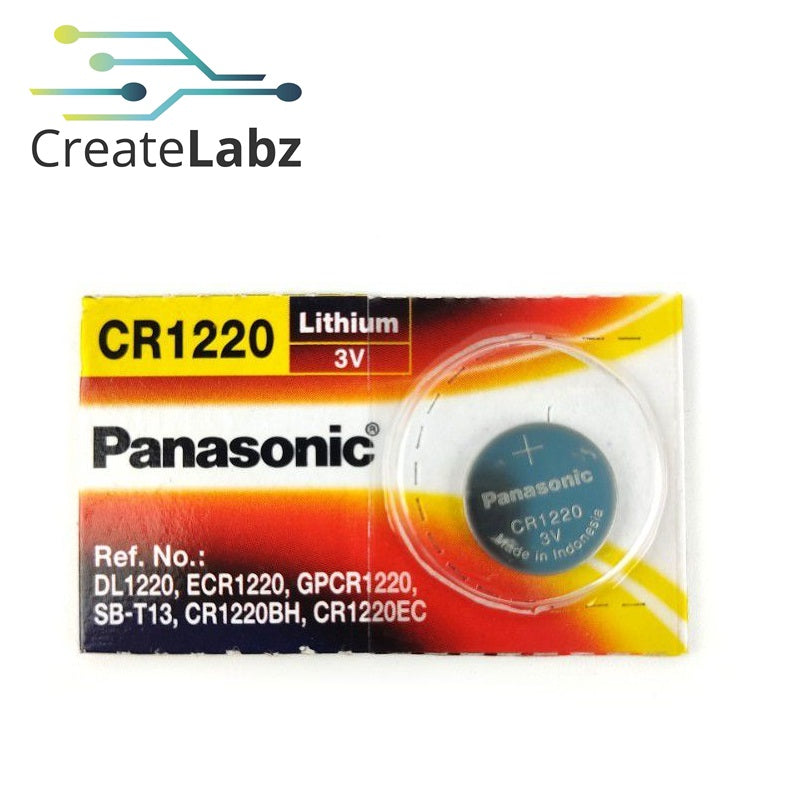

1 x Panasonic 3V Lithium Battery CR1220
Note: Product Images are shown for illustrative purposes only and may differ from the actual products
