Description

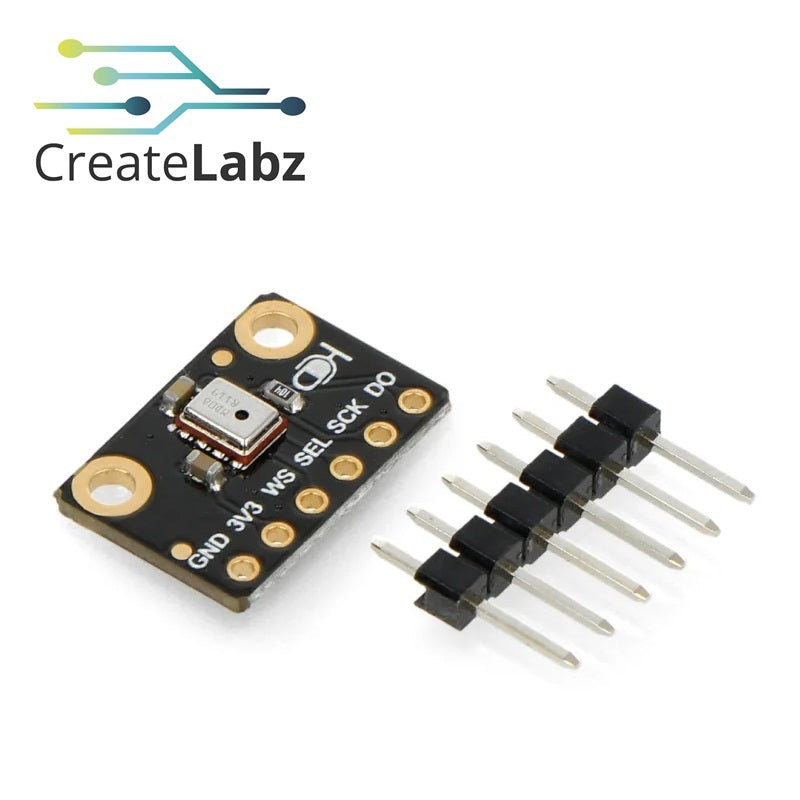

This digital I2S MEMS Microphone works well with microcontrollers with I2S audio outputs like ESP32. Compared with traditional analog ones, this microphone features low noise, high sensitivity & reliability, and other excellent performances, which make it applicable to projects like voice recognition, recording, AI learning, Bluetooth audio transmission, and so on. This module uses surface mount MEMS I2S microphone sensor with top port, no components at the bottom, which can be embedded into various applications conveniently. Besides, DFRobot provides users with Arduino library for this product to allow them easily get started on ESP32.
Features:
- Small in size
- Low power consumption & high performance
- I2S digital output with low noise
- MEMS sensor with high reliability
- Provides Arduino library for working on ESP32
Application:
- Voice recognition
- AI learning
- Recording
- Bluetooth audio streaming
- Smart home audio projects

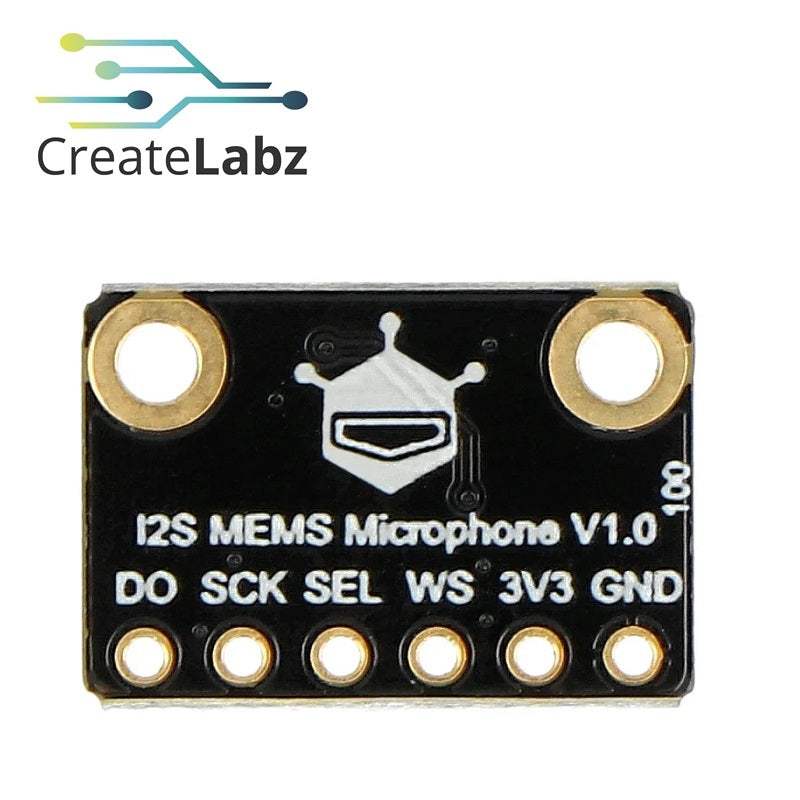

Pinout:
- 3V3 - DC 3.3V Power +
- GND- Negative pole of power supply
- SCK- I2S clock, Serial data clock for I2S interface
- SEL- Select left or right channel, Left/Right Channel Select. When set low, the microphone outputs its signal in the left channel of the I²S frame; when set high, the microphone outputs its signal in the right channel
- WS- Data field select, Select the data of the left or right channel, connect to WS of I2S interface
- DO- Data output, Serial data output of the I2S microphone
Specification:
- Operating Voltage: DC 3.3V
- Microphone Packaging Process: MEMS
- Direction: Omnidirectional
- Data Port: I2S
- Sound Pressure Level: 140dB
- Signal-to-noise Ratio: 59dB
- Dimension: 11mm×16mm/0.43×0.63"
Package Includes:
1x DFRobot Fermion: I2S MEMS Microphone
Note: Product Images are shown for illustrative purposes only and may differ from the actual products
