Documents/Arduino/libraries/lvgl

#define LV_CONF_INCLUDE_SIMPLE

#include
#include
#include "esp_heap_caps.h"

/* ===== BLUETOOTH SERIAL ===== */
#include "BluetoothSerial.h"
BluetoothSerial SerialBT;

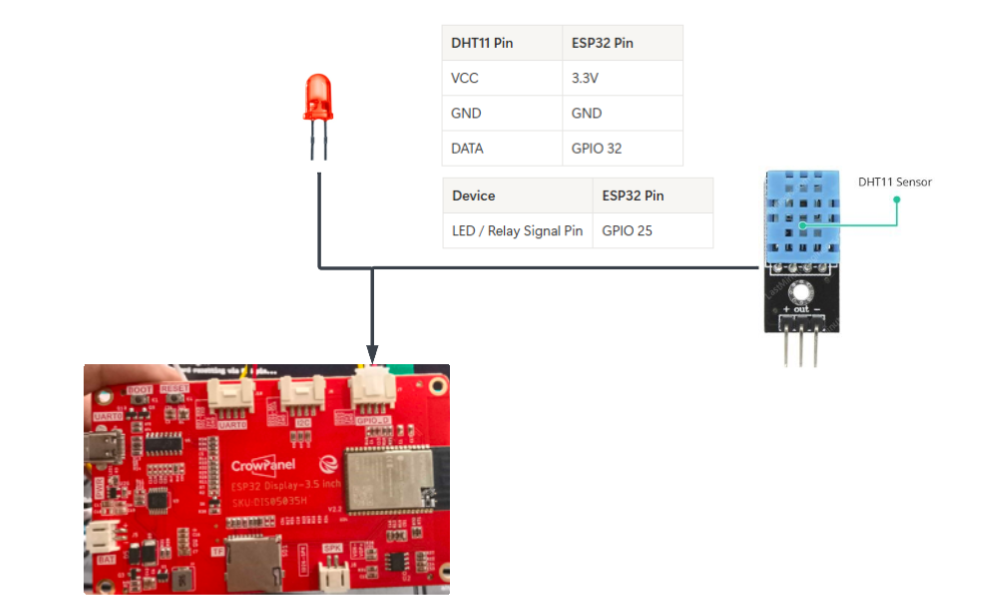

/* ===== DHT SENSOR ===== */
#include

#define DHTPIN 32
#define DHTTYPE DHT11
DHT dht(DHTPIN, DHTTYPE);

/* Global sensor values for LVGL */
float g_temperature = 0;
float g_humidity = 0;

extern "C" {
  #include
}

TFT_eSPI tft = TFT_eSPI();

/* ================= Screen Settings ================= */
static const uint16_t screenWidth  = 320;
static const uint16_t screenHeight = 240;

/* ================= LVGL Buffer ================= */
static lv_disp_draw_buf_t draw_buf;
static lv_color_t buf1[screenWidth * 20];

/* ================= LVGL Tick Timer ================= */
hw_timer_t * lv_timer = NULL;

void IRAM_ATTR onTimer() {
  lv_tick_inc(1);
}

/* ================= Display Flush ================= */
void my_disp_flush(lv_disp_drv_t *disp,
                   const lv_area_t *area,
                   lv_color_t *color_p)
{
  uint32_t w = area->x2 - area->x1 + 1;
  uint32_t h = area->y2 - area->y1 + 1;

  tft.startWrite();
  tft.setAddrWindow(area->x1, area->y1, w, h);
  tft.pushColors((uint16_t *)color_p, w * h, true);
  tft.endWrite();

  lv_disp_flush_ready(disp);
}

/* ================= Touch Read ================= */
void my_touchpad_read(lv_indev_drv_t *indev_driver,
                      lv_indev_data_t *data)
{
  uint16_t x, y;

  if (tft.getTouch(&x, &y, 40))
  {
    data->state = LV_INDEV_STATE_PR;
  data->point.x = screenWidth - x;
data->point.y = y;
  }
  else
  {
    data->state = LV_INDEV_STATE_REL;
  }
}

/* ================= Setup ================= */
void setup()
{
  Serial.begin(115200);

  /* Backlight pin */
  pinMode(27, OUTPUT);
  digitalWrite(27, HIGH);

  /* Start Bluetooth Serial */
  SerialBT.begin("CrowPanel_Control");
  Serial.println("Bluetooth Serial started");

  /* Start DHT sensor */
  dht.begin();

  tft.init();
  tft.setRotation(3);
  tft.setSwapBytes(true);

  uint16_t calData[5] = { 292, 3607, 302, 3486, 7 };
  tft.setTouch(calData);

  /* Display test */
  tft.fillScreen(TFT_RED);
  delay(500);
  tft.fillScreen(TFT_GREEN);
  delay(500);
  tft.fillScreen(TFT_BLUE);
  delay(500);
  tft.fillScreen(TFT_BLACK);

  /* Initialize LVGL */
  lv_init();

  lv_disp_draw_buf_init(&draw_buf, buf1, NULL,
                        screenWidth * 20);

  /* 1ms LVGL tick timer */
  lv_timer = timerBegin(0, 80, true);
  timerAttachInterrupt(lv_timer, &onTimer, true);
  timerAlarmWrite(lv_timer, 1000, true);
  timerAlarmEnable(lv_timer);

  /* Register display */
  static lv_disp_drv_t disp_drv;
  lv_disp_drv_init(&disp_drv);
  disp_drv.hor_res = screenWidth;
  disp_drv.ver_res = screenHeight;
  disp_drv.flush_cb = my_disp_flush;
  disp_drv.draw_buf = &draw_buf;
  lv_disp_drv_register(&disp_drv);

  /* Register touch */
  static lv_indev_drv_t indev_drv;
  lv_indev_drv_init(&indev_drv);
  indev_drv.type = LV_INDEV_TYPE_POINTER;
  indev_drv.read_cb = my_touchpad_read;
  lv_indev_drv_register(&indev_drv);

  /* Load LVGL demo */
  lv_demo_widgets();
}

/* ================= Loop ================= */
void loop()
{
  lv_timer_handler();
  delay(5);

  /* ===== Read DHT11 every ~2 seconds ===== */
  static unsigned long lastRead = 0;

  if (millis() - lastRead > 2000) {

    float t = dht.readTemperature();
    float h = dht.readHumidity();

    if (!isnan(t) && !isnan(h)) {

      g_temperature = t;
      g_humidity = h;

      Serial.print("Temp: ");
      Serial.print(t);
      Serial.print("  Hum: ");
      Serial.println(h);

      SerialBT.print("Temp:");
      SerialBT.print(t);
      SerialBT.print("C  Hum:");
      SerialBT.print(h);
      SerialBT.println("%");
    }

    lastRead = millis();
  }

  /* ===== Bluetooth command handler ===== */
  if (SerialBT.available()) {

    String cmd = SerialBT.readStringUntil('\n');
    cmd.trim();

    Serial.print("Received: ");
    Serial.println(cmd);

    if (cmd == "ON") {
      digitalWrite(27, HIGH);
      SerialBT.println("Screen ON");
    }

    if (cmd == "OFF") {
      digitalWrite(27, LOW);
      SerialBT.println("Screen OFF");
    }
  }
}



// //                            USER DEFINED SETTINGS
// //   Set driver type, fonts to be loaded, pins used and SPI control method etc.
// //
// //   See the User_Setup_Select.h file if you wish to be able to define multiple
// //   setups and then easily select which setup file is used by the compiler.
// //
// //   If this file is edited correctly then all the library example sketches should
// //   run without the need to make any more changes for a particular hardware setup!
// //   Note that some sketches are designed for a particular TFT pixel width/height

// // User defined information reported by "Read_User_Setup" test & diagnostics example
// #define USER_SETUP_INFO "User_Setup"

// // Define to disable all #warnings in library (can be put in User_Setup_Select.h)
// //#define DISABLE_ALL_LIBRARY_WARNINGS

// // ##################################################################################
// //
// // Section 1. Call up the right driver file and any options for it
// //
// // ##################################################################################

// // Define STM32 to invoke optimised processor support (only for STM32)
// //#define STM32

// // Defining the STM32 board allows the library to optimise the performance
// // for UNO compatible "MCUfriend" style shields
// //#define NUCLEO_64_TFT
// //#define NUCLEO_144_TFT

// // STM32 8-bit parallel only:
// // If STN32 Port A or B pins 0-7 are used for 8-bit parallel data bus bits 0-7
// // then this will improve rendering performance by a factor of ~8x
// //#define STM_PORTA_DATA_BUS
// //#define STM_PORTB_DATA_BUS

// // Tell the library to use parallel mode (otherwise SPI is assumed)
// //#define TFT_PARALLEL_8_BIT
// //#defined TFT_PARALLEL_16_BIT // **** 16-bit parallel ONLY for RP2040 processor ****

// // Display type -  only define if RPi display
// //#define RPI_DISPLAY_TYPE // 20MHz maximum SPI

// // Only define one driver, the other ones must be commented out
// #define ILI9341_DRIVER       // Generic driver for common displays
// //#define ILI9341_2_DRIVER     // Alternative ILI9341 driver, see https://github.com/Bodmer/TFT_eSPI/issues/1172
// //#define ST7735_DRIVER      // Define additional parameters below for this display
// //#define ILI9163_DRIVER     // Define additional parameters below for this display
// //#define S6D02A1_DRIVER
// //#define RPI_ILI9486_DRIVER // 20MHz maximum SPI
// //#define HX8357D_DRIVER
// //#define ILI9481_DRIVER
// //#define ILI9486_DRIVER
// //#define ILI9488_DRIVER     // WARNING: Do not connect ILI9488 display SDO to MISO if other devices share the SPI bus (TFT SDO does NOT tristate when CS is high)
// //#define ST7789_DRIVER      // Full configuration option, define additional parameters below for this display
// //#define ST7789_2_DRIVER    // Minimal configuration option, define additional parameters below for this display
// //#define R61581_DRIVER
// //#define RM68140_DRIVER
// //#define ST7796_DRIVER
// //#define SSD1351_DRIVER
// //#define SSD1963_480_DRIVER
// //#define SSD1963_800_DRIVER
// //#define SSD1963_800ALT_DRIVER
// //#define ILI9225_DRIVER
// //#define GC9A01_DRIVER

// // Some displays support SPI reads via the MISO pin, other displays have a single
// // bi-directional SDA pin and the library will try to read this via the MOSI line.
// // To use the SDA line for reading data from the TFT uncomment the following line:

// // #define TFT_SDA_READ      // This option is for ESP32 ONLY, tested with ST7789 and GC9A01 display only

// // For ST7735, ST7789 and ILI9341 ONLY, define the colour order IF the blue and red are swapped on your display
// // Try ONE option at a time to find the correct colour order for your display

// //  #define TFT_RGB_ORDER TFT_RGB  // Colour order Red-Green-Blue
// //  #define TFT_RGB_ORDER TFT_BGR  // Colour order Blue-Green-Red

// // For M5Stack ESP32 module with integrated ILI9341 display ONLY, remove // in line below

// // #define M5STACK

// // For ST7789, ST7735, ILI9163 and GC9A01 ONLY, define the pixel width and height in portrait orientation
// // #define TFT_WIDTH  80
// // #define TFT_WIDTH  128
// // #define TFT_WIDTH  172 // ST7789 172 x 320
// // #define TFT_WIDTH  170 // ST7789 170 x 320
// // #define TFT_WIDTH  240 // ST7789 240 x 240 and 240 x 320
// // #define TFT_HEIGHT 160
// // #define TFT_HEIGHT 128
// // #define TFT_HEIGHT 240 // ST7789 240 x 240
// // #define TFT_HEIGHT 320 // ST7789 240 x 320
// // #define TFT_HEIGHT 240 // GC9A01 240 x 240

// // For ST7735 ONLY, define the type of display, originally this was based on the
// // colour of the tab on the screen protector film but this is not always true, so try
// // out the different options below if the screen does not display graphics correctly,
// // e.g. colours wrong, mirror images, or stray pixels at the edges.
// // Comment out ALL BUT ONE of these options for a ST7735 display driver, save this
// // this User_Setup file, then rebuild and upload the sketch to the board again:

// // #define ST7735_INITB
// // #define ST7735_GREENTAB
// // #define ST7735_GREENTAB2
// // #define ST7735_GREENTAB3
// // #define ST7735_GREENTAB128    // For 128 x 128 display
// // #define ST7735_GREENTAB160x80 // For 160 x 80 display (BGR, inverted, 26 offset)
// // #define ST7735_ROBOTLCD       // For some RobotLCD Arduino shields (128x160, BGR, https://docs.arduino.cc/retired/getting-started-guides/TFT)
// // #define ST7735_REDTAB
// // #define ST7735_BLACKTAB
// // #define ST7735_REDTAB160x80   // For 160 x 80 display with 24 pixel offset

// // If colours are inverted (white shows as black) then uncomment one of the next
// // 2 lines try both options, one of the options should correct the inversion.

// // #define TFT_INVERSION_ON
// // #define TFT_INVERSION_OFF


// // ##################################################################################
// //
// // Section 2. Define the pins that are used to interface with the display here
// //
// // ##################################################################################

// // If a backlight control signal is available then define the TFT_BL pin in Section 2
// // below. The backlight will be turned ON when tft.begin() is called, but the library
// // needs to know if the LEDs are ON with the pin HIGH or LOW. If the LEDs are to be
// // driven with a PWM signal or turned OFF/ON then this must be handled by the user
// // sketch. e.g. with digitalWrite(TFT_BL, LOW);

// // #define TFT_BL   32            // LED back-light control pin
// // #define TFT_BACKLIGHT_ON HIGH  // Level to turn ON back-light (HIGH or LOW)



// // We must use hardware SPI, a minimum of 3 GPIO pins is needed.
// // Typical setup for ESP8266 NodeMCU ESP-12 is :
// //
// // Display SDO/MISO  to NodeMCU pin D6 (or leave disconnected if not reading TFT)
// // Display LED       to NodeMCU pin VIN (or 5V, see below)
// // Display SCK       to NodeMCU pin D5
// // Display SDI/MOSI  to NodeMCU pin D7
// // Display DC (RS/AO)to NodeMCU pin D3
// // Display RESET     to NodeMCU pin D4 (or RST, see below)
// // Display CS        to NodeMCU pin D8 (or GND, see below)
// // Display GND       to NodeMCU pin GND (0V)
// // Display VCC       to NodeMCU 5V or 3.3V
// //
// // The TFT RESET pin can be connected to the NodeMCU RST pin or 3.3V to free up a control pin
// //
// // The DC (Data Command) pin may be labelled AO or RS (Register Select)
// //
// // With some displays such as the ILI9341 the TFT CS pin can be connected to GND if no more
// // SPI devices (e.g. an SD Card) are connected, in this case comment out the #define TFT_CS
// // line below so it is NOT defined. Other displays such at the ST7735 require the TFT CS pin
// // to be toggled during setup, so in these cases the TFT_CS line must be defined and connected.
// //
// // The NodeMCU D0 pin can be used for RST
// //
// //
// // Note: only some versions of the NodeMCU provide the USB 5V on the VIN pin
// // If 5V is not available at a pin you can use 3.3V but backlight brightness
// // will be lower.


// // ###### EDIT THE PIN NUMBERS IN THE LINES FOLLOWING TO SUIT YOUR ESP8266 SETUP ######

// // For NodeMCU - use pin numbers in the form PIN_Dx where Dx is the NodeMCU pin designation
// #define TFT_MISO  PIN_D6  // Automatically assigned with ESP8266 if not defined
// #define TFT_MOSI  PIN_D7  // Automatically assigned with ESP8266 if not defined
// #define TFT_SCLK  PIN_D5  // Automatically assigned with ESP8266 if not defined

// #define TFT_CS    PIN_D8  // Chip select control pin D8
// #define TFT_DC    PIN_D3  // Data Command control pin
// #define TFT_RST   PIN_D4  // Reset pin (could connect to NodeMCU RST, see next line)
// //#define TFT_RST  -1     // Set TFT_RST to -1 if the display RESET is connected to NodeMCU RST or 3.3V


// //#define TFT_BL PIN_D1  // LED back-light (only for ST7789 with backlight control pin)

// //#define TOUCH_CS PIN_D2     // Chip select pin (T_CS) of touch screen

// //#define TFT_WR PIN_D2       // Write strobe for modified Raspberry Pi TFT only


// // ######  FOR ESP8266 OVERLAP MODE EDIT THE PIN NUMBERS IN THE FOLLOWING LINES  ######

// // Overlap mode shares the ESP8266 FLASH SPI bus with the TFT so has a performance impact
// // but saves pins for other functions. It is best not to connect MISO as some displays
// // do not tristate that line when chip select is high!
// // Note: Only one SPI device can share the FLASH SPI lines, so a SPI touch controller
// // cannot be connected as well to the same SPI signals.
// // On NodeMCU 1.0 SD0=MISO, SD1=MOSI, CLK=SCLK to connect to TFT in overlap mode
// // On NodeMCU V3  S0 =MISO, S1 =MOSI, S2 =SCLK
// // In ESP8266 overlap mode the following must be defined

// //#define TFT_SPI_OVERLAP

// // In ESP8266 overlap mode the TFT chip select MUST connect to pin D3
// //#define TFT_CS   PIN_D3
// //#define TFT_DC   PIN_D5  // Data Command control pin
// //#define TFT_RST  PIN_D4  // Reset pin (could connect to NodeMCU RST, see next line)
// //#define TFT_RST  -1  // Set TFT_RST to -1 if the display RESET is connected to NodeMCU RST or 3.3V


// // ###### EDIT THE PIN NUMBERS IN THE LINES FOLLOWING TO SUIT YOUR ESP32 SETUP   ######

// // For ESP32 Dev board (only tested with ILI9341 display)
// // The hardware SPI can be mapped to any pins

// //#define TFT_MISO 19
// //#define TFT_MOSI 23
// //#define TFT_SCLK 18
// //#define TFT_CS   15  // Chip select control pin
// //#define TFT_DC    2  // Data Command control pin
// //#define TFT_RST   4  // Reset pin (could connect to RST pin)
// //#define TFT_RST  -1  // Set TFT_RST to -1 if display RESET is connected to ESP32 board RST

// // For ESP32 Dev board (only tested with GC9A01 display)
// // The hardware SPI can be mapped to any pins

// //#define TFT_MOSI 15 // In some display driver board, it might be written as "SDA" and so on.
// //#define TFT_SCLK 14
// //#define TFT_CS   5  // Chip select control pin
// //#define TFT_DC   27  // Data Command control pin
// //#define TFT_RST  33  // Reset pin (could connect to Arduino RESET pin)
// //#define TFT_BL   22  // LED back-light

// //#define TOUCH_CS 21     // Chip select pin (T_CS) of touch screen

// //#define TFT_WR 22    // Write strobe for modified Raspberry Pi TFT only

// // For the M5Stack module use these #define lines
// //#define TFT_MISO 19
// //#define TFT_MOSI 23
// //#define TFT_SCLK 18
// //#define TFT_CS   14  // Chip select control pin
// //#define TFT_DC   27  // Data Command control pin
// //#define TFT_RST  33  // Reset pin (could connect to Arduino RESET pin)
// //#define TFT_BL   32  // LED back-light (required for M5Stack)

// // ######       EDIT THE PINs BELOW TO SUIT YOUR ESP32 PARALLEL TFT SETUP        ######

// // The library supports 8-bit parallel TFTs with the ESP32, the pin
// // selection below is compatible with ESP32 boards in UNO format.
// // Wemos D32 boards need to be modified, see diagram in Tools folder.
// // Only ILI9481 and ILI9341 based displays have been tested!

// // Parallel bus is only supported for the STM32 and ESP32
// // Example below is for ESP32 Parallel interface with UNO displays

// // Tell the library to use 8-bit parallel mode (otherwise SPI is assumed)
// //#define TFT_PARALLEL_8_BIT

// // The ESP32 and TFT the pins used for testing are:
// //#define TFT_CS   33  // Chip select control pin (library pulls permanently low
// //#define TFT_DC   15  // Data Command control pin - must use a pin in the range 0-31
// //#define TFT_RST  32  // Reset pin, toggles on startup

// //#define TFT_WR    4  // Write strobe control pin - must use a pin in the range 0-31
// //#define TFT_RD    2  // Read strobe control pin

// //#define TFT_D0   12  // Must use pins in the range 0-31 for the data bus
// //#define TFT_D1   13  // so a single register write sets/clears all bits.
// //#define TFT_D2   26  // Pins can be randomly assigned, this does not affect
// //#define TFT_D3   25  // TFT screen update performance.
// //#define TFT_D4   17
// //#define TFT_D5   16
// //#define TFT_D6   27
// //#define TFT_D7   14

// // ######       EDIT THE PINs BELOW TO SUIT YOUR STM32 SPI TFT SETUP        ######

// // The TFT can be connected to SPI port 1 or 2
// //#define TFT_SPI_PORT 1 // SPI port 1 maximum clock rate is 55MHz
// //#define TFT_MOSI PA7
// //#define TFT_MISO PA6
// //#define TFT_SCLK PA5

// //#define TFT_SPI_PORT 2 // SPI port 2 maximum clock rate is 27MHz
// //#define TFT_MOSI PB15
// //#define TFT_MISO PB14
// //#define TFT_SCLK PB13

// // Can use Ardiuno pin references, arbitrary allocation, TFT_eSPI controls chip select
// //#define TFT_CS   D5 // Chip select control pin to TFT CS
// //#define TFT_DC   D6 // Data Command control pin to TFT DC (may be labelled RS = Register Select)
// //#define TFT_RST  D7 // Reset pin to TFT RST (or RESET)
// // OR alternatively, we can use STM32 port reference names PXnn
// //#define TFT_CS   PE11 // Nucleo-F767ZI equivalent of D5
// //#define TFT_DC   PE9  // Nucleo-F767ZI equivalent of D6
// //#define TFT_RST  PF13 // Nucleo-F767ZI equivalent of D7

// //#define TFT_RST  -1   // Set TFT_RST to -1 if the display RESET is connected to processor reset
//                         // Use an Arduino pin for initial testing as connecting to processor reset
//                         // may not work (pulse too short at power up?)

// // ##################################################################################
// //
// // Section 3. Define the fonts that are to be used here
// //
// // ##################################################################################

// // Comment out the #defines below with // to stop that font being loaded
// // The ESP8366 and ESP32 have plenty of memory so commenting out fonts is not
// // normally necessary. If all fonts are loaded the extra FLASH space required is
// // about 17Kbytes. To save FLASH space only enable the fonts you need!

// #define LOAD_GLCD   // Font 1. Original Adafruit 8 pixel font needs ~1820 bytes in FLASH
// #define LOAD_FONT2  // Font 2. Small 16 pixel high font, needs ~3534 bytes in FLASH, 96 characters
// #define LOAD_FONT4  // Font 4. Medium 26 pixel high font, needs ~5848 bytes in FLASH, 96 characters
// #define LOAD_FONT6  // Font 6. Large 48 pixel font, needs ~2666 bytes in FLASH, only characters 1234567890:-.apm
// #define LOAD_FONT7  // Font 7. 7 segment 48 pixel font, needs ~2438 bytes in FLASH, only characters 1234567890:-.
// #define LOAD_FONT8  // Font 8. Large 75 pixel font needs ~3256 bytes in FLASH, only characters 1234567890:-.
// //#define LOAD_FONT8N // Font 8. Alternative to Font 8 above, slightly narrower, so 3 digits fit a 160 pixel TFT
// #define LOAD_GFXFF  // FreeFonts. Include access to the 48 Adafruit_GFX free fonts FF1 to FF48 and custom fonts

// // Comment out the #define below to stop the SPIFFS filing system and smooth font code being loaded
// // this will save ~20kbytes of FLASH
// #define SMOOTH_FONT


// // ##################################################################################
// //
// // Section 4. Other options
// //
// // ##################################################################################

// // For RP2040 processor and SPI displays, uncomment the following line to use the PIO interface.
// //#define RP2040_PIO_SPI // Leave commented out to use standard RP2040 SPI port interface

// // For RP2040 processor and 8 or 16-bit parallel displays:
// // The parallel interface write cycle period is derived from a division of the CPU clock
// // speed so scales with the processor clock. This means that the divider ratio may need
// // to be increased when overclocking. It may also need to be adjusted dependant on the
// // display controller type (ILI94341, HX8357C etc.). If RP2040_PIO_CLK_DIV is not defined
// // the library will set default values which may not suit your display.
// // The display controller data sheet will specify the minimum write cycle period. The
// // controllers often work reliably for shorter periods, however if the period is too short
// // the display may not initialise or graphics will become corrupted.
// // PIO write cycle frequency = (CPU clock/(4 * RP2040_PIO_CLK_DIV))
// //#define RP2040_PIO_CLK_DIV 1 // 32ns write cycle at 125MHz CPU clock
// //#define RP2040_PIO_CLK_DIV 2 // 64ns write cycle at 125MHz CPU clock
// //#define RP2040_PIO_CLK_DIV 3 // 96ns write cycle at 125MHz CPU clock

// // For the RP2040 processor define the SPI port channel used (default 0 if undefined)
// //#define TFT_SPI_PORT 1 // Set to 0 if SPI0 pins are used, or 1 if spi1 pins used

// // For the STM32 processor define the SPI port channel used (default 1 if undefined)
// //#define TFT_SPI_PORT 2 // Set to 1 for SPI port 1, or 2 for SPI port 2

// // Define the SPI clock frequency, this affects the graphics rendering speed. Too
// // fast and the TFT driver will not keep up and display corruption appears.
// // With an ILI9341 display 40MHz works OK, 80MHz sometimes fails
// // With a ST7735 display more than 27MHz may not work (spurious pixels and lines)
// // With an ILI9163 display 27 MHz works OK.

// // #define SPI_FREQUENCY   1000000
// // #define SPI_FREQUENCY   5000000
// // #define SPI_FREQUENCY  10000000
// // #define SPI_FREQUENCY  20000000
// #define SPI_FREQUENCY  27000000
// // #define SPI_FREQUENCY  40000000
// // #define SPI_FREQUENCY  55000000 // STM32 SPI1 only (SPI2 maximum is 27MHz)
// // #define SPI_FREQUENCY  80000000

// // Optional reduced SPI frequency for reading TFT
// #define SPI_READ_FREQUENCY  20000000

// // The XPT2046 requires a lower SPI clock rate of 2.5MHz so we define that here:
// #define SPI_TOUCH_FREQUENCY  2500000

// // The ESP32 has 2 free SPI ports i.e. VSPI and HSPI, the VSPI is the default.
// // If the VSPI port is in use and pins are not accessible (e.g. TTGO T-Beam)
// // then uncomment the following line:
//

// // Comment out the following #define if "SPI Transactions" do not need to be
// // supported. When commented out the code size will be smaller and sketches will
// // run slightly faster, so leave it commented out unless you need it!

// // Transaction support is needed to work with SD library but not needed with TFT_SdFat
// // Transaction support is required if other SPI devices are connected.

// // Transactions are automatically enabled by the library for an ESP32 (to use HAL mutex)
// // so changing it here has no effect

// // #define SUPPORT_TRANSACTIONS
// #define ILI9488_DRIVER - 3.5inch spi tft red color
#define ILI9341_DRIVER

#define TFT_WIDTH  480
#define TFT_HEIGHT 320

#define TFT_MOSI 13
#define TFT_MISO 12
#define TFT_SCLK 14
#define TFT_CS   15
#define TFT_DC   2
#define TFT_RST  -1

#define TFT_BL   27
#define TFT_BACKLIGHT_ON HIGH

#define SPI_FREQUENCY       27000000
#define SPI_READ_FREQUENCY  10000000

#define XPT2046_TOUCH
#define TOUCH_CS  33
#define SPI_TOUCH_FREQUENCY 2000000

#define USE_HSPI_PORT




// This header file contains a list of user setup files and defines which one the
// compiler uses when the IDE performs a Verify/Compile or Upload.
//
// Users can create configurations for different boards and TFT displays.
// This makes selecting between hardware setups easy by "uncommenting" one line.

// The advantage of this hardware configuration method is that the examples provided
// with the library should work with immediately without any other changes being
// needed. It also improves the portability of users sketches to other hardware
// configurations and compatible libraries.
//
// Create a shortcut to this file on your desktop to permit quick access for editing.
// Re-compile and upload after making and saving any changes to this file.

// Example User_Setup files are stored in the "User_Setups" folder. These can be used
// unmodified or adapted for a particular hardware configuration.

#ifndef USER_SETUP_LOADED //  Lets PlatformIO users define settings in
                          //  platformio.ini, see notes in "Tools" folder.

///////////////////////////////////////////////////////
//   User configuration selection lines are below    //
///////////////////////////////////////////////////////

// Only ONE line below should be uncommented to define your setup.  Add extra lines and files as needed.

#include            // Default setup is root library folder

//#include   // Setup file for ESP8266 configured for my ILI9341
//#include    // Setup file for ESP8266 configured for my ST7735
//#include   // Setup file for ESP8266 configured for my ILI9163
//#include   // Setup file for ESP8266 configured for my S6D02A1
//#include         // Setup file for ESP8266 configured for my stock RPi TFT
//#include      // Setup file for ESP8266 configured for my modified RPi TFT
//#include      // Setup file for ESP8266 configured for my ST7735 128x128 display
//#include     // Setup file for ESP8266 configured for my ILI9163 128x128 display
//#include      // Setup file for ESP8266 configured for my ST7735
//#include  // Setup file for ESP8266 configured for ESP8266 and RPi TFT with touch

//#include  // Setup file configured for ESP32 and RPi TFT with touch
//#include // Setup file for the ESP32 based M5Stack (Basic Core only)
//#include   // Setup file for the ESP32 with parallel bus TFT
//#include   // Setup file for the ESP32 with parallel bus TFT
//#include            // Setup file for ESP8266 configured for HX8357D
//#include   // Setup file for the ESP32 with parallel bus TFT
//#include             // Setup file for ESP8266 and any Waveshare ePaper display
//#include             // Setup file for ESP8266 configured for ST7789

//#include 	 // Setup file configured for RM68140 with parallel bus

//#include            // Setup file for ESP8266 and ILI9488 SPI bus TFT
//#include            // Setup file for ESP32 and ILI9488 SPI bus TFT

//#include            // Setup file for ESP32 and TTGO T4 version 1.2
//#include       // Setup file for ESP32 and TTGO T4 version 1.3
//#include            // Setup file for ESP32 and TTGO TM ST7789 SPI bus TFT
//#include             // Setup file for DSTIKE/ESP32/ESP8266 configured for ST7789 240 x 240
//#include     // Setup file for ESP32 and TTGO T-Display ST7789V SPI bus TFT
//#include   // Setup file for ESP32 and TTGO T-Wristband ST7735 SPI bus TFT

//#include     // ESP32   RPi MHS-4.0 inch Display-B
//#include   // ESP8266 RPi MHS-4.0 inch Display-B

//#include           // Setup for Nucleo board
//#include  // Setup for Nucleo board and parallel display
//#include   // Setup for Nucleo board and parallel display
//#include       // Setup for "Blue/Black Pill"

//#include       // Setup for Nucleo board

//#include  // Setup for Nucleo board and parallel display
//#include  // Setup for STM32 port A parallel display

//#include       // Setup file configured for ESP32 and RPi ST7796 TFT with touch

//#include            // Setup file for ESP32 and SPI ILI9341 240x320
//#include             // Setup file for ESP8266 & ESP32 configured for my ST7735S 80x160
//#include    // Setup file for ESP32 and TTGO T-CameraPlus ST7789 SPI bus TFT    240x240
//#include       // Setup file for ESP32 and TTGO T-Watch ST7789 SPI bus TFT  240x240
//#include       // Setup file for ESP32 and GC9A01 SPI bus TFT  240x240

//#include             // Setup file for ESP32 configured for ST7735 128 x 128 animated eyes

//#include   // Setup file for ESP32 and SSD1963 TFT display

//#include     // Setup file for LilyGo LilyPi with ILI9481 display
//#include      // Setup file for LilyGo LilyPi with ST7796 display

//#include               // Setup file for RP2040 with SPI ILI9341
//#include       // Setup file for RP2040 with PIO SPI ILI9341
//#include  // Setup file for RP2040 with SPI ILI9341

//#include      // Setup file for Seeed XIAO with GC9A01 240x240

//#include      // Setup file for ESP32 S2 with SPI ILI9341
//#include     // Setup file for ESP32 S3 with SPI ILI9341
//#include     // Setup file for ESP32 C3 with SPI ILI9341
//#include  // Setup file for ESP32 S3 with SPI ILI9488

//#include        // Setup file for ESP32 S2 with ST7789
//#include   // Setup file for ESP32 with ST7789 1.47" 172x320

//#include  // Setup file for Pico/RP2040 with 8-bit parallel ILI9488
//#include  // Setup file for Pico/RP2040 with 8-bit parallel ILI9481
//#include  // Setup file for Pico/RP2040 with 8-bit parallel ILI9341
//#include  // Setup file for Pico/RP2040 with 8-bit parallel ILI9486
//#include   // Setup file for Pico/RP2040 with 8-bit parallel ST7796

//#include   // Setup file for RP2040 16-bit parallel display
//#include  // Setup file for RP2040 16-bit parallel display
//#include  // Setup file for RP2040 16-bit parallel display
//#include  // Setup file for Waveshare RP2040 board with onboard ST7735 0.96" 160x80 display

//#include            // Setup file for ESP8266 and ST7789 135 x 240 TFT

//#include        // Setup file for ESP32 and Lilygo TTV ST7789 SPI bus TFT  135x240
//#include   // Setup file for Lilygo T-Display RP2040 (ST7789 on SPI bus with 135x240 TFT)

//#include  // Setup file for Pico Explorer Base by Pimoroni for RP2040 (ST7789 on SPI bus with 240x240 TFT)

//#include            // Setup file for ESP32 and GC9A01 240 x 240 TFT

//#include         // Setup file for ESP32 based WT32_SC01 from Seeed

//#include       // Setup file for ESP32/ESP8266 based SSD1351 128x128 1.5inch OLED display

//#include      // Setup file for ESP32/ESP8266 based ST7789 240X280 1.69inch TFT

//#include      // Setup file for the ESP32 TouchDown based on ILI9488 480 x 320 TFT

//#include      // Setup file for the ESP32 TouchDown S3 based on ILI9488 480 x 320 TFT

//#include      // For the LilyGo T-Display S3 based ESP32S3 with ST7789 170 x 320 TFT
//#include             // For the LilyGo T-HMI S3 based ESP32S3 with ST7789 240 x 320 TFT
//#include       // For the LilyGo T-Dongle S3 based ESP32 with ST7735 80 x 160 TFT
//#include          // For the LilyGo T-Embed S3 based ESP32S3 with ST7789 170 x 320 TFT
//#include          // For the LilyGo T-QT Pro S3 based ESP32S3 with GC9A01 128 x 128 TFT
// #include          // For the LilyGo T-PICO-Pro with ST7796 222 x 480 TFT
// #include          // For the LilyGo T-BEAM V1.x with ST7796 222 x 480 TFT

//#include       // For the ESP32 S3 Box Lite
//#include             // For the ESP32 S3 Box

//#include             // Setup file for Bw16-based boards with ST7735 160 x 80 TFT
//#include             // Setup file for Waveshare ESP32-S3-Touch-LCD-1.28 board with GC9A01 240*240 TFT

//#include      // Template file for a setup


//#include           // Setup file for Dustin Watts PCB with ILI9488
//#include            // Setup file for Dustin Watts PCB with ST7796
//#include      // Setup file for Dustin Watts Pico PCB with ST7796
//#include       // Setup file for Dustin Watts PCB with ST7789 240 x 240 on 3.3V adapter board
//#include       // Setup file for Dustin Watts PCB with GC9A01 240 x 240 on 3.3V adapter board
//#include      // Setup file for Dustin Watts PCB with GC9A01 240 x 240 on 3.3V adapter board
//#include     // Setup file for Dustin Watts PCB with ST7789 240 x 240 on 3.3V adapter board
//#include     // Setup file for Dustin Watts PCB with ILI9341
//#include

#endif // USER_SETUP_LOADED



/////////////////////////////////////////////////////////////////////////////////////
//                                                                                 //
//     DON'T TINKER WITH ANY OF THE FOLLOWING LINES, THESE ADD THE TFT DRIVERS     //
//       AND ESP8266 PIN DEFINITONS, THEY ARE HERE FOR BODMER'S CONVENIENCE!       //
//                                                                                 //
/////////////////////////////////////////////////////////////////////////////////////


// Identical looking TFT displays may have a different colour ordering in the 16-bit colour
#define TFT_BGR 0   // Colour order Blue-Green-Red
#define TFT_RGB 1   // Colour order Red-Green-Blue

// Legacy setup support, RPI_DISPLAY_TYPE replaces RPI_DRIVER
#if defined (RPI_DRIVER)
  #if !defined (RPI_DISPLAY_TYPE)
    #define RPI_DISPLAY_TYPE
  #endif
#endif

// Legacy setup support, RPI_ILI9486_DRIVER form is deprecated
// Instead define RPI_DISPLAY_TYPE and also define driver (e.g. ILI9486_DRIVER)
#if defined (RPI_ILI9486_DRIVER)
  #if !defined (ILI9486_DRIVER)
    #define ILI9486_DRIVER
  #endif
  #if !defined (RPI_DISPLAY_TYPE)
    #define RPI_DISPLAY_TYPE
  #endif
#endif

// Invoke 18-bit colour for selected displays
#if !defined (RPI_DISPLAY_TYPE) && !defined (TFT_PARALLEL_8_BIT) && !defined (TFT_PARALLEL_16_BIT) && !defined (ESP32_PARALLEL)
  #if defined (ILI9481_DRIVER) || defined (ILI9486_DRIVER) || defined (ILI9488_DRIVER)
    #define SPI_18BIT_DRIVER
  #endif
#endif

// Load the right driver definition - do not tinker here !
#if   defined (ILI9341_DRIVER) || defined(ILI9341_2_DRIVER) || defined (ILI9342_DRIVER)
     #include
     #define  TFT_DRIVER 0x9341
#elif defined (ST7735_DRIVER)
     #include
     #define  TFT_DRIVER 0x7735
#elif defined (ILI9163_DRIVER)
     #include
     #define  TFT_DRIVER 0x9163
#elif defined (S6D02A1_DRIVER)
     #include
     #define  TFT_DRIVER 0x6D02
#elif defined (ST7796_DRIVER)
      #include "TFT_Drivers/ST7796_Defines.h"
      #define  TFT_DRIVER 0x7796
#elif defined (ILI9486_DRIVER)
     #include
     #define  TFT_DRIVER 0x9486
#elif defined (ILI9481_DRIVER)
     #include
     #define  TFT_DRIVER 0x9481
#elif defined (ILI9488_DRIVER)
     #include
     #define  TFT_DRIVER 0x9488
#elif defined (HX8357D_DRIVER)
     #include "TFT_Drivers/HX8357D_Defines.h"
     #define  TFT_DRIVER 0x8357
#elif defined (EPD_DRIVER)
     #include "TFT_Drivers/EPD_Defines.h"
     #define  TFT_DRIVER 0xE9D
#elif defined (ST7789_DRIVER)
     #include "TFT_Drivers/ST7789_Defines.h"
     #define  TFT_DRIVER 0x7789
#elif defined (R61581_DRIVER)
     #include "TFT_Drivers/R61581_Defines.h"
     #define  TFT_DRIVER 0x6158
#elif defined (ST7789_2_DRIVER)
     #include "TFT_Drivers/ST7789_2_Defines.h"
     #define  TFT_DRIVER 0x778B
#elif defined (RM68140_DRIVER)
     #include "TFT_Drivers/RM68140_Defines.h"
     #define  TFT_DRIVER 0x6814
#elif defined (SSD1351_DRIVER)
     #include "TFT_Drivers/SSD1351_Defines.h"
     #define  TFT_DRIVER 0x1351
#elif defined (SSD1963_480_DRIVER)
     #include "TFT_Drivers/SSD1963_Defines.h"
     #define  TFT_DRIVER 0x1963
#elif defined (SSD1963_800_DRIVER)
     #include "TFT_Drivers/SSD1963_Defines.h"
     #define  TFT_DRIVER 0x1963
#elif defined (SSD1963_800ALT_DRIVER)
     #include "TFT_Drivers/SSD1963_Defines.h"
     #define  TFT_DRIVER 0x1963
#elif defined (SSD1963_800BD_DRIVER)
     #include "TFT_Drivers/SSD1963_Defines.h"
     #define  TFT_DRIVER 0x1963
#elif defined (GC9A01_DRIVER)
     #include "TFT_Drivers/GC9A01_Defines.h"
     #define  TFT_DRIVER 0x9A01
#elif defined (ILI9225_DRIVER)
     #include "TFT_Drivers/ILI9225_Defines.h"
     #define  TFT_DRIVER 0x9225
#elif defined (RM68120_DRIVER)
     #include "TFT_Drivers/RM68120_Defines.h"
     #define  TFT_DRIVER 0x6812
#elif defined (HX8357B_DRIVER)
     #include "TFT_Drivers/HX8357B_Defines.h"
     #define  TFT_DRIVER 0x835B
#elif defined (HX8357C_DRIVER)
     #include "TFT_Drivers/HX8357C_Defines.h"
     #define  TFT_DRIVER 0x835C

                              // <<<<<<<<<<<<<<<<<<<<<<<< ADD NEW DRIVER HERE
                              // XYZZY_init.h and XYZZY_rotation.h must also be added in TFT_eSPI.cpp
#elif defined (XYZZY_DRIVER)
     #include "TFT_Drivers/XYZZY_Defines.h"
     #define  TFT_DRIVER 0x0000
#else
     #define  TFT_DRIVER 0x0000
#endif

// These are the pins for ESP8266 boards
//      Name   GPIO    NodeMCU      Function
#define PIN_D0  16  // GPIO16       WAKE
#define PIN_D1   5  // GPIO5        User purpose
#define PIN_D2   4  // GPIO4        User purpose
#define PIN_D3   0  // GPIO0        Low on boot means enter FLASH mode
#define PIN_D4   2  // GPIO2        TXD1 (must be high on boot to go to UART0 FLASH mode)
#define PIN_D5  14  // GPIO14       HSCLK
#define PIN_D6  12  // GPIO12       HMISO
#define PIN_D7  13  // GPIO13       HMOSI  RXD2
#define PIN_D8  15  // GPIO15       HCS    TXD0 (must be low on boot to enter UART0 FLASH mode)
#define PIN_D9   3  //              RXD0
#define PIN_D10  1  //              TXD0

#define PIN_MOSI 8  // SD1          FLASH and overlap mode
#define PIN_MISO 7  // SD0
#define PIN_SCLK 6  // CLK
#define PIN_HWCS 0  // D3

#define PIN_D11  9  // SD2
#define PIN_D12 10  // SD4



/**
 * @file lv_demo_widgets.c
 *
 */
/* ===== Sensor values coming from main sketch ===== */

/*********************
 *      INCLUDES
 *********************/
#include "lv_demo_widgets.h"
#include "driver/gpio.h"
#define LED_PIN 25

#ifdef __cplusplus
extern "C" {
#endif

extern float g_temperature;
extern float g_humidity;

#ifdef __cplusplus
}
#endif

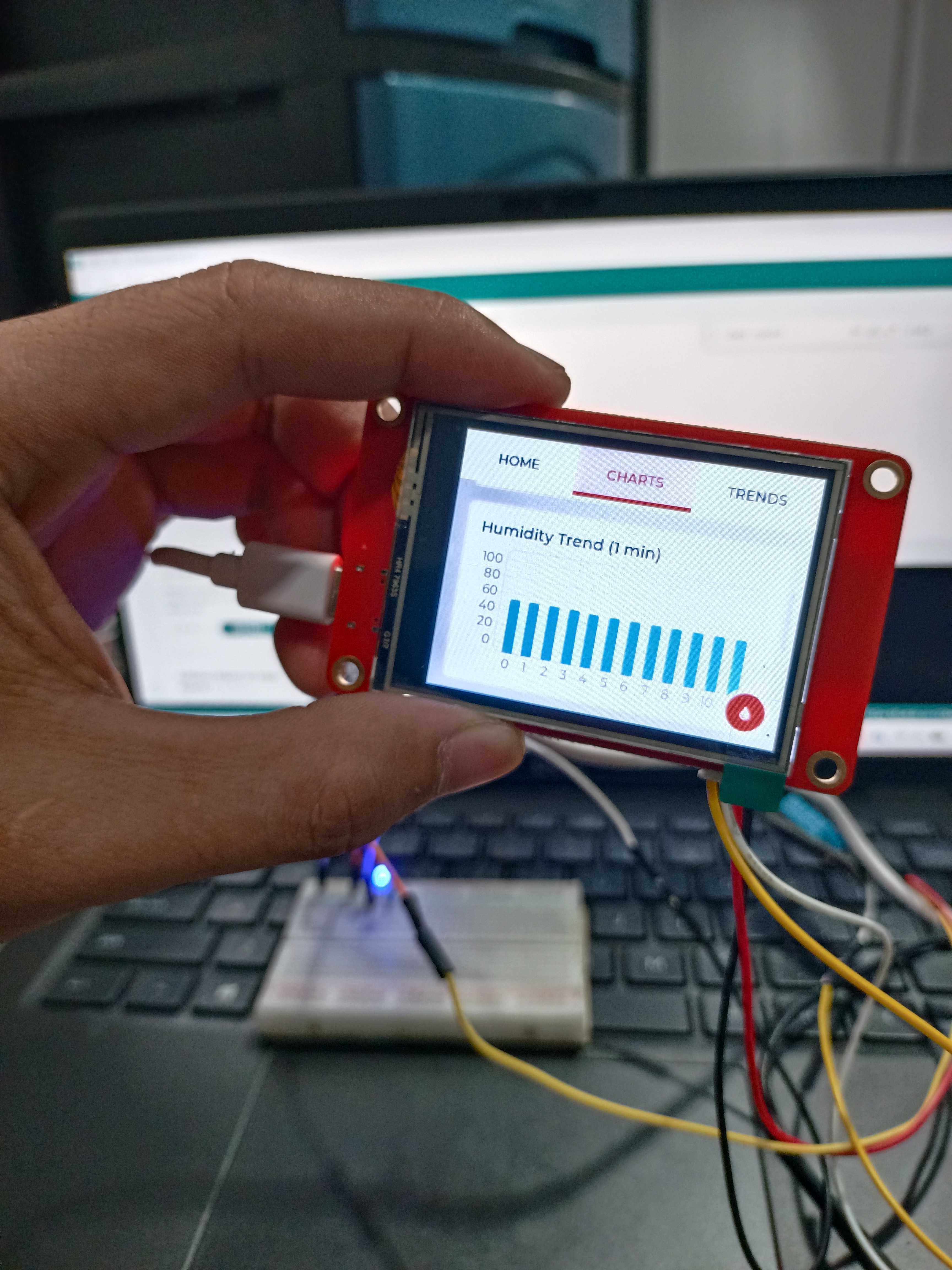

static lv_obj_t *chart1;
static lv_chart_series_t *ser1;

static lv_obj_t *chart2;
static lv_chart_series_t *ser2;

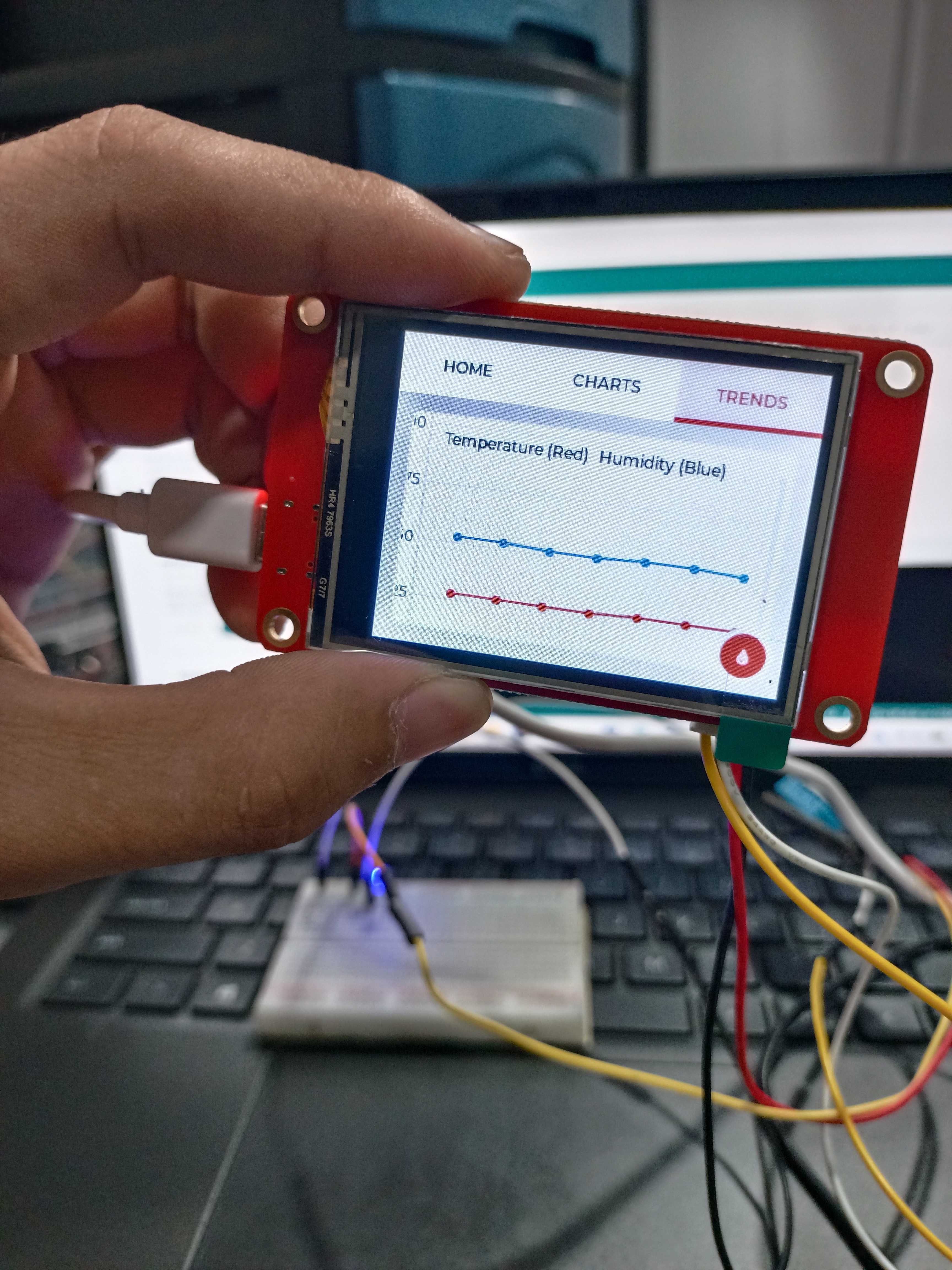

static lv_obj_t * chart3;
static lv_chart_series_t * ser3;
static lv_chart_series_t * ser4;

/* ===== Gauge objects ===== */
static lv_meter_indicator_t *arc_temp;
static lv_meter_indicator_t *needle_temp;

static lv_meter_indicator_t *arc_hum;
static lv_meter_indicator_t *needle_hum;

static lv_obj_t *temp_meter;
static lv_obj_t *hum_meter;

static lv_obj_t *temp_center;
static lv_obj_t *hum_center;

static lv_obj_t *email_label;
static lv_obj_t *call_label;

#if LV_USE_DEMO_WIDGETS

#if LV_MEM_CUSTOM == 0 && LV_MEM_SIZE < (38ul * 1024ul)
    #error Insufficient memory for lv_demo_widgets. Please set LV_MEM_SIZE to at least 38KB (38ul * 1024ul).  48KB is recommended.
#endif

/*********************
 *      DEFINES
 *********************/

/**********************
 *      TYPEDEFS
 **********************/
typedef enum {
    DISP_SMALL,
    DISP_MEDIUM,
    DISP_LARGE,
} disp_size_t;

/**********************
 *  STATIC PROTOTYPES
 **********************/
static void profile_create(lv_obj_t * parent);
static void analytics_create(lv_obj_t * parent);
static void shop_create(lv_obj_t * parent);
static void color_changer_create(lv_obj_t * parent);

static lv_obj_t * create_meter_box(lv_obj_t * parent, const char * title, const char * text1, const char * text2,
                                   const char * text3);
static lv_obj_t * create_shop_item(lv_obj_t * parent, const void * img_src, const char * name, const char * category,
                                   const char * price);

static void color_changer_event_cb(lv_event_t * e);
static void color_event_cb(lv_event_t * e);
static void ta_event_cb(lv_event_t * e);
static void birthday_event_cb(lv_event_t * e);
static void calendar_event_cb(lv_event_t * e);
static void slider_event_cb(lv_event_t * e);
static void chart_event_cb(lv_event_t * e);
static void shop_chart_event_cb(lv_event_t * e);
static void meter1_indic1_anim_cb(void * var, int32_t v);
static void meter1_indic2_anim_cb(void * var, int32_t v);
static void meter1_indic3_anim_cb(void * var, int32_t v);
static void meter2_timer_cb(lv_timer_t * timer);
static void meter3_anim_cb(void * var, int32_t v);

/**********************
 *  STATIC VARIABLES
 **********************/
static disp_size_t disp_size;

static lv_obj_t * tv;
static lv_obj_t * calendar;
static lv_style_t style_text_muted;
static lv_style_t style_title;
static lv_style_t style_icon;
static lv_style_t style_bullet;

static lv_obj_t * meter1;
static lv_obj_t * meter2;
static lv_obj_t * meter3;

static lv_obj_t * chart1;
static lv_obj_t * chart2;
static lv_obj_t * chart3;

static lv_chart_series_t * ser1;
static lv_chart_series_t * ser2;
static lv_chart_series_t * ser3;
static lv_chart_series_t * ser4;

static const lv_font_t * font_large;
static const lv_font_t * font_normal;

static uint32_t session_desktop = 1000;
static uint32_t session_tablet = 1000;
static uint32_t session_mobile = 1000;

static lv_timer_t * meter2_timer;

/**********************
 *      MACROS
 **********************/

/**********************
 *   GLOBAL FUNCTIONS
 **********************/

void lv_demo_widgets(void)
{

        gpio_reset_pin((gpio_num_t)LED_PIN);
    gpio_set_direction((gpio_num_t)LED_PIN, GPIO_MODE_OUTPUT);
    gpio_set_level((gpio_num_t)LED_PIN, 0);

    if(LV_HOR_RES <= 320) disp_size = DISP_SMALL;
    else if(LV_HOR_RES < 720) disp_size = DISP_MEDIUM;
    else disp_size = DISP_LARGE;

    font_large = LV_FONT_DEFAULT;
    font_normal = LV_FONT_DEFAULT;

    lv_coord_t tab_h;
    if(disp_size == DISP_LARGE) {
        tab_h = 70;
#if LV_FONT_MONTSERRAT_24
        font_large     = &lv_font_montserrat_24;
#else
        LV_LOG_WARN("LV_FONT_MONTSERRAT_24 is not enabled for the widgets demo. Using LV_FONT_DEFAULT instead.");
#endif
#if LV_FONT_MONTSERRAT_16
        font_normal    = &lv_font_montserrat_16;
#else
        LV_LOG_WARN("LV_FONT_MONTSERRAT_16 is not enabled for the widgets demo. Using LV_FONT_DEFAULT instead.");
#endif
    }
    else if(disp_size == DISP_MEDIUM) {
        tab_h = 45;
#if LV_FONT_MONTSERRAT_20
        font_large     = &lv_font_montserrat_20;
#else
        LV_LOG_WARN("LV_FONT_MONTSERRAT_20 is not enabled for the widgets demo. Using LV_FONT_DEFAULT instead.");
#endif
#if LV_FONT_MONTSERRAT_14
        font_normal    = &lv_font_montserrat_14;
#else
        LV_LOG_WARN("LV_FONT_MONTSERRAT_14 is not enabled for the widgets demo. Using LV_FONT_DEFAULT instead.");
#endif
    }
    else {   /* disp_size == DISP_SMALL */
        tab_h = 45;
#if LV_FONT_MONTSERRAT_18
        font_large     = &lv_font_montserrat_18;
#else
        LV_LOG_WARN("LV_FONT_MONTSERRAT_18 is not enabled for the widgets demo. Using LV_FONT_DEFAULT instead.");
#endif
#if LV_FONT_MONTSERRAT_12
        font_normal    = &lv_font_montserrat_12;
#else
        LV_LOG_WARN("LV_FONT_MONTSERRAT_12 is not enabled for the widgets demo. Using LV_FONT_DEFAULT instead.");
#endif
    }

#if LV_USE_THEME_DEFAULT
    lv_theme_default_init(NULL, lv_palette_main(LV_PALETTE_GREEN), lv_palette_main(LV_PALETTE_RED), LV_THEME_DEFAULT_DARK,
                          font_normal);
#endif
/* ===== Force grey background ===== */
lv_obj_set_style_bg_color(lv_scr_act(), lv_color_hex(0xD3D3D3), LV_PART_MAIN);
lv_obj_set_style_bg_opa(lv_scr_act(), LV_OPA_COVER, LV_PART_MAIN);

/* ===== Set grey background for the whole UI ===== */
lv_obj_set_style_bg_color(lv_scr_act(), lv_palette_lighten(LV_PALETTE_GREY, 3), 0);
lv_obj_set_style_bg_opa(lv_scr_act(), LV_OPA_COVER, 0);

    lv_style_init(&style_text_muted);
    lv_style_set_text_opa(&style_text_muted, LV_OPA_50);

    lv_style_init(&style_title);
    lv_style_set_text_font(&style_title, font_large);

    lv_style_init(&style_icon);
    lv_style_set_text_color(&style_icon, lv_theme_get_color_primary(NULL));
    lv_style_set_text_font(&style_icon, font_large);

    lv_style_init(&style_bullet);
    lv_style_set_border_width(&style_bullet, 0);
    lv_style_set_radius(&style_bullet, LV_RADIUS_CIRCLE);

    tv = lv_tabview_create(lv_scr_act(), LV_DIR_TOP, tab_h);

    /* ===== Force grey dashboard background ===== */
lv_obj_set_style_bg_color(tv, lv_color_hex(0xD3D3D3), LV_PART_MAIN);
lv_obj_set_style_bg_opa(tv, LV_OPA_COVER, LV_PART_MAIN);

/* Also change tab pages */
lv_obj_set_style_bg_color(lv_tabview_get_content(tv), lv_color_hex(0xD3D3D3), LV_PART_MAIN);
lv_obj_set_style_bg_opa(lv_tabview_get_content(tv), LV_OPA_COVER, LV_PART_MAIN);

    lv_obj_set_style_text_font(lv_scr_act(), font_normal, 0);

    if(disp_size == DISP_LARGE) {
        lv_obj_t * tab_btns = lv_tabview_get_tab_btns(tv);
        lv_obj_set_style_pad_left(tab_btns, LV_HOR_RES / 2, 0);
        lv_obj_t * logo = lv_img_create(tab_btns);
        LV_IMG_DECLARE(img_lvgl_logo);
        lv_img_set_src(logo, &img_lvgl_logo);
        lv_obj_align(logo, LV_ALIGN_LEFT_MID, -LV_HOR_RES / 2 + 25, 0);

        lv_obj_t * label = lv_label_create(tab_btns);
        lv_obj_add_style(label, &style_title, 0);
        lv_label_set_text(label, "LVGL v8");
        lv_obj_align_to(label, logo, LV_ALIGN_OUT_RIGHT_TOP, 10, 0);

        label = lv_label_create(tab_btns);
        lv_label_set_text(label, "Widgets demo");
        lv_obj_add_style(label, &style_text_muted, 0);
        lv_obj_align_to(label, logo, LV_ALIGN_OUT_RIGHT_BOTTOM, 10, 0);
    }

lv_obj_t * t1 = lv_tabview_add_tab(tv, "HOME");
lv_obj_t * t2 = lv_tabview_add_tab(tv, "CHARTS");
lv_obj_t * t3 = lv_tabview_add_tab(tv, "TRENDS");
    profile_create(t1);
    analytics_create(t2);
    shop_create(t3);

    color_changer_create(tv);
}

void lv_demo_widgets_close(void)
{

gpio_reset_pin((gpio_num_t)LED_PIN);
gpio_set_direction((gpio_num_t)LED_PIN, GPIO_MODE_OUTPUT);
gpio_set_level((gpio_num_t)LED_PIN, 0);

    /*Delete all animation*/
    lv_anim_del(NULL, NULL);

    lv_timer_del(meter2_timer);
    meter2_timer = NULL;

    lv_obj_clean(lv_scr_act());

    lv_style_reset(&style_text_muted);
    lv_style_reset(&style_title);
    lv_style_reset(&style_icon);
    lv_style_reset(&style_bullet);
}
static void dht_update_cb(lv_timer_t * timer)
{
    /* Update temperature gauge */
    lv_meter_set_indicator_value(temp_meter, needle_temp, g_temperature);
    lv_meter_set_indicator_end_value(temp_meter, arc_temp, g_temperature);

    char buf[16];
    sprintf(buf,"%.1f°C", g_temperature);
    lv_label_set_text(temp_center, buf);

    /* Update humidity gauge */
    lv_meter_set_indicator_value(hum_meter, needle_hum, g_humidity);
    lv_meter_set_indicator_end_value(hum_meter, arc_hum, g_humidity);

    sprintf(buf,"%.0f%%", g_humidity);
    lv_label_set_text(hum_center, buf);
}



static void dashboard_update_cb(lv_timer_t * t)
{
    char buf[40];

    sprintf(buf, " Temperature: %.1f °C", g_temperature);
    lv_label_set_text(email_label, buf);

    sprintf(buf, " Humidity: %.0f %%", g_humidity);
    lv_label_set_text(call_label, buf);
}
/**********************
 *   STATIC FUNCTIONS
 **********************/

static void bulb_event_cb(lv_event_t * e)
{
    lv_obj_t * sw = lv_event_get_target(e);

    bool state = lv_obj_has_state(sw, LV_STATE_CHECKED);

    gpio_set_level((gpio_num_t)LED_PIN, state ? 1 : 0);
}


static void bulb_button_cb(lv_event_t * e)
{
    static bool state = false;
    state = !state;

    gpio_set_level((gpio_num_t)LED_PIN, state);

    lv_obj_t * btn = lv_event_get_target(e);
    lv_obj_t * label = lv_obj_get_child(btn, 0);

    if(state) {
        lv_label_set_text(label, "Bulb ON");
        lv_obj_set_style_bg_color(btn, lv_palette_main(LV_PALETTE_GREEN), 0);
    } else {
        lv_label_set_text(label, "Bulb OFF");
        lv_obj_set_style_bg_color(btn, lv_palette_main(LV_PALETTE_RED), 0);
    }
}
static void profile_create(lv_obj_t * parent)
{

    /* ===================== BULB CONTROL PANEL ===================== */

lv_obj_t * bulb_panel = lv_obj_create(parent);
lv_obj_set_height(bulb_panel, LV_SIZE_CONTENT);
lv_obj_set_flex_flow(bulb_panel, LV_FLEX_FLOW_COLUMN);
lv_obj_set_style_pad_all(bulb_panel, 10, 0);

lv_obj_t * bulb_title = lv_label_create(bulb_panel);
lv_label_set_text(bulb_title, "Light Control");

lv_obj_t * bulb_btn = lv_btn_create(bulb_panel);
lv_obj_set_size(bulb_btn, 140, 50);
lv_obj_add_event_cb(bulb_btn, bulb_button_cb, LV_EVENT_CLICKED, NULL);

lv_obj_t * bulb_label = lv_label_create(bulb_btn);
lv_label_set_text(bulb_label, "Bulb OFF");
lv_obj_center(bulb_label);

lv_obj_set_style_bg_color(bulb_btn, lv_palette_main(LV_PALETTE_RED), 0);


   /* ===================== NEW TOP PANEL: GAUGES ===================== */
lv_obj_t * gauge_panel = lv_obj_create(parent);
lv_obj_set_height(gauge_panel, LV_SIZE_CONTENT);

/* Temperature meter */
temp_meter = lv_meter_create(gauge_panel);
lv_obj_set_size(temp_meter, 170, 170);

lv_meter_scale_t * scale_temp = lv_meter_add_scale(temp_meter);
lv_meter_set_scale_range(temp_meter, scale_temp, 0, 40, 270, 135);
lv_meter_set_scale_ticks(temp_meter, scale_temp, 21, 2, 10, lv_palette_main(LV_PALETTE_GREY));
lv_meter_set_scale_major_ticks(temp_meter, scale_temp, 5, 4, 15, lv_color_black(), 10);

arc_temp =
    lv_meter_add_arc(temp_meter, scale_temp, 10, lv_palette_main(LV_PALETTE_BLUE), 0);
lv_meter_set_indicator_start_value(temp_meter, arc_temp, 0);
lv_meter_set_indicator_end_value(temp_meter, arc_temp, 24);

needle_temp =
    lv_meter_add_needle_line(temp_meter, scale_temp, 4, lv_palette_main(LV_PALETTE_RED), -10);
lv_meter_set_indicator_value(temp_meter, needle_temp, 24);

temp_center = lv_label_create(temp_meter);
lv_label_set_text(temp_center, "24.5°C");
lv_obj_align(temp_center, LV_ALIGN_CENTER, 0, 20);

lv_obj_t * temp_caption = lv_label_create(gauge_panel);
lv_obj_add_style(temp_caption, &style_text_muted, 0);
lv_label_set_text(temp_caption, "Temperature");


/* Humidity meter */
hum_meter = lv_meter_create(gauge_panel);
lv_obj_set_size(hum_meter, 170, 170);

lv_meter_scale_t * scale_hum = lv_meter_add_scale(hum_meter);
lv_meter_set_scale_range(hum_meter, scale_hum, 0, 100, 270, 135);
lv_meter_set_scale_ticks(hum_meter, scale_hum, 21, 2, 10, lv_palette_main(LV_PALETTE_GREY));
lv_meter_set_scale_major_ticks(hum_meter, scale_hum, 5, 4, 15, lv_color_black(), 10);

arc_hum =
    lv_meter_add_arc(hum_meter, scale_hum, 10, lv_palette_main(LV_PALETTE_CYAN), 0);
lv_meter_set_indicator_start_value(hum_meter, arc_hum, 0);
lv_meter_set_indicator_end_value(hum_meter, arc_hum, 63);

needle_hum =
    lv_meter_add_needle_line(hum_meter, scale_hum, 4, lv_palette_main(LV_PALETTE_BLUE), -10);
lv_meter_set_indicator_value(hum_meter, needle_hum, 63);

hum_center = lv_label_create(hum_meter);
lv_label_set_text(hum_center, "63%");
lv_obj_align(hum_center, LV_ALIGN_CENTER, 0, 20);

lv_obj_t * hum_caption = lv_label_create(gauge_panel);
lv_obj_add_style(hum_caption, &style_text_muted, 0);
lv_label_set_text(hum_caption, "Humidity");

lv_timer_create(dht_update_cb, 2000, NULL);

    /* ===================== PANEL 1 ===================== */
    lv_obj_t * panel1 = lv_obj_create(parent);
    lv_obj_set_height(panel1, LV_SIZE_CONTENT);

    lv_obj_t * name = lv_label_create(panel1);
    lv_label_set_text(name, "Environment Dashboard");
    lv_obj_add_style(name, &style_title, 0);

    lv_obj_t * dsc = lv_label_create(panel1);
    lv_obj_add_style(dsc, &style_text_muted, 0);
    lv_label_set_text(dsc, "Indoor environmental monitoring system");
    lv_label_set_long_mode(dsc, LV_LABEL_LONG_WRAP);

    lv_obj_t * email_icn = lv_label_create(panel1);
    lv_obj_add_style(email_icn, &style_icon, 0);
    lv_label_set_text(email_icn, LV_SYMBOL_TINT);

email_label = lv_label_create(panel1);
lv_label_set_text(email_label, "🌡 Temperature: 24.5 °C");

    lv_obj_t * call_icn = lv_label_create(panel1);
    lv_obj_add_style(call_icn, &style_icon, 0);
   lv_label_set_text(call_icn, LV_SYMBOL_TINT);

   call_label = lv_label_create(panel1);
lv_label_set_text(call_label, "💧 Humidity: 63%");

    lv_obj_t * log_out_btn = lv_btn_create(panel1);
    lv_obj_set_height(log_out_btn, LV_SIZE_CONTENT);

    lv_obj_t * label = lv_label_create(log_out_btn);
    lv_label_set_text(label, "Refresh");
    lv_obj_center(label);

    lv_obj_t * invite_btn = lv_btn_create(panel1);
    lv_obj_add_state(invite_btn, LV_STATE_DISABLED);
    lv_obj_set_height(invite_btn, LV_SIZE_CONTENT);

    label = lv_label_create(invite_btn);
    lv_label_set_text(label, "Calibrate");
    lv_obj_center(label);

    /*Create a keyboard*/
    lv_obj_t * kb = lv_keyboard_create(lv_scr_act());
    lv_obj_add_flag(kb, LV_OBJ_FLAG_HIDDEN);

    lv_timer_create(dashboard_update_cb, 2000, NULL);

   /* ===================== PANEL 2 ===================== */
lv_obj_t * panel2 = lv_obj_create(parent);
lv_obj_set_height(panel2, LV_SIZE_CONTENT);

lv_obj_t * panel2_title = lv_label_create(panel2);
lv_label_set_text(panel2_title, "Sensor Configuration");
lv_obj_add_style(panel2_title, &style_title, 0);

/* Reuse: user_name_label + user_name  -> Temp threshold */
lv_obj_t * user_name_label = lv_label_create(panel2);
lv_label_set_text(user_name_label, "Temperature Alert (°C)");
lv_obj_add_style(user_name_label, &style_text_muted, 0);

lv_obj_t * user_name = lv_textarea_create(panel2);
lv_textarea_set_one_line(user_name, true);
lv_textarea_set_placeholder_text(user_name, "e.g. 30");
lv_obj_add_event_cb(user_name, ta_event_cb, LV_EVENT_ALL, kb);

/* Reuse: password_label + password -> Humidity threshold */
lv_obj_t * password_label = lv_label_create(panel2);
lv_label_set_text(password_label, "Humidity Alert (%)");
lv_obj_add_style(password_label, &style_text_muted, 0);

lv_obj_t * password = lv_textarea_create(panel2);
lv_textarea_set_one_line(password, true);
lv_textarea_set_password_mode(password, false);
lv_textarea_set_placeholder_text(password, "e.g. 75");
lv_obj_add_event_cb(password, ta_event_cb, LV_EVENT_ALL, kb);

/* Reuse: gender_label + gender -> Sampling interval */
lv_obj_t * gender_label = lv_label_create(panel2);
lv_label_set_text(gender_label, "Sampling Interval");
lv_obj_add_style(gender_label, &style_text_muted, 0);

lv_obj_t * gender = lv_dropdown_create(panel2);
lv_dropdown_set_options_static(gender, "1 sec\n5 sec\n10 sec\n30 sec\n60 sec");

/* Reuse: birthday_label + birthdate -> Calibration date */
lv_obj_t * birthday_label = lv_label_create(panel2);
lv_label_set_text(birthday_label, "Last Calibration Date");
lv_obj_add_style(birthday_label, &style_text_muted, 0);

lv_obj_t * birthdate = lv_textarea_create(panel2);
lv_textarea_set_one_line(birthdate, true);
lv_textarea_set_placeholder_text(birthdate, "YYYY-MM-DD");
lv_obj_add_event_cb(birthdate, birthday_event_cb, LV_EVENT_ALL, NULL);

   /* ===================== PANEL 3 ===================== */
lv_obj_t * panel3 = lv_obj_create(parent);

lv_obj_t * panel3_title = lv_label_create(panel3);
lv_label_set_text(panel3_title, "System Controls");
lv_obj_add_style(panel3_title, &style_title, 0);

/* Reuse: experience_label -> Ventilation speed */
lv_obj_t * experience_label = lv_label_create(panel3);
lv_label_set_text(experience_label, "Ventilation Speed (%)");
lv_obj_add_style(experience_label, &style_text_muted, 0);

/* Reuse: slider1 */
lv_obj_t * slider1 = lv_slider_create(panel3);
lv_obj_set_width(slider1, LV_PCT(95));
lv_slider_set_range(slider1, 0, 100);
lv_slider_set_value(slider1, 60, LV_ANIM_OFF);
lv_obj_add_event_cb(slider1, slider_event_cb, LV_EVENT_ALL, NULL);
lv_obj_refresh_ext_draw_size(slider1);

/* Reuse: team_player_label -> Auto regulation */
lv_obj_t * team_player_label = lv_label_create(panel3);
lv_label_set_text(team_player_label, "BULB SWITCH");
lv_obj_add_style(team_player_label, &style_text_muted, 0);

/* Reuse: sw1 */
// lv_obj_t * sw1 = lv_switch_create(panel3);
// lv_obj_add_state(sw1, LV_STATE_CHECKED);


lv_obj_t * sw1 = lv_switch_create(panel3);

/* Force OFF state */
lv_obj_clear_state(sw1, LV_STATE_CHECKED);

/* Refresh visual state */
lv_obj_invalidate(sw1);
/* OFF by default */

/* Reuse: hard_working_label -> Enable alerts */
lv_obj_t * hard_working_label = lv_label_create(panel3);
lv_label_set_text(hard_working_label, "Enable Alerts");
lv_obj_add_style(hard_working_label, &style_text_muted, 0);

/* Reuse: sw2 */
// lv_obj_t * sw2 = lv_switch_create(panel3);
// lv_obj_add_state(sw2, LV_STATE_CHECKED);

lv_obj_t * sw2 = lv_switch_create(panel3);

/* Start switch OFF */
lv_obj_clear_state(sw2, LV_STATE_CHECKED);

/* Attach LED control event */
lv_obj_add_event_cb(sw2, bulb_event_cb, LV_EVENT_VALUE_CHANGED, NULL);

    /* ===================== LAYOUT (GRID) ===================== */
    if(disp_size == DISP_LARGE) {
        static lv_coord_t grid_main_col_dsc[] = {LV_GRID_FR(1), LV_GRID_FR(1), LV_GRID_TEMPLATE_LAST};
        static lv_coord_t grid_main_row_dsc[] = {
            LV_GRID_CONTENT, /* gauge_panel */
            LV_GRID_CONTENT, /* panel1 */
            LV_GRID_CONTENT, /* panel2/panel3 */
            LV_GRID_TEMPLATE_LAST
        };

        /*Create the top panel*/
        static lv_coord_t grid_1_col_dsc[] = {LV_GRID_CONTENT, 5, LV_GRID_CONTENT, LV_GRID_FR(2), LV_GRID_FR(1), LV_GRID_FR(1), LV_GRID_TEMPLATE_LAST};
        static lv_coord_t grid_1_row_dsc[] = {LV_GRID_CONTENT, LV_GRID_CONTENT, 10, LV_GRID_CONTENT, LV_GRID_CONTENT, LV_GRID_TEMPLATE_LAST};

        static lv_coord_t grid_2_col_dsc[] = {LV_GRID_FR(1), LV_GRID_FR(1), LV_GRID_TEMPLATE_LAST};
        static lv_coord_t grid_2_row_dsc[] = {
            LV_GRID_CONTENT,  /*Title*/
            5,                /*Separator*/
            LV_GRID_CONTENT,  /*Box title*/
            30,               /*Boxes*/
            5,                /*Separator*/
            LV_GRID_CONTENT,  /*Box title*/
            30,               /*Boxes*/
            LV_GRID_TEMPLATE_LAST
        };

        lv_obj_set_grid_dsc_array(parent, grid_main_col_dsc, grid_main_row_dsc);

        /* ---- Place main panels in grid ---- */
       /* ---- Place main panels in grid ---- */

lv_obj_set_grid_cell(bulb_panel,  LV_GRID_ALIGN_STRETCH, 0, 2, LV_GRID_ALIGN_CENTER, 0, 1);
lv_obj_set_grid_cell(gauge_panel, LV_GRID_ALIGN_STRETCH, 0, 2, LV_GRID_ALIGN_CENTER, 1, 1);
lv_obj_set_grid_cell(panel1,      LV_GRID_ALIGN_STRETCH, 0, 2, LV_GRID_ALIGN_CENTER, 2, 1);
lv_obj_set_grid_cell(panel2,      LV_GRID_ALIGN_STRETCH, 0, 1, LV_GRID_ALIGN_START,  3, 1);
lv_obj_set_grid_cell(panel3,      LV_GRID_ALIGN_STRETCH, 1, 1, LV_GRID_ALIGN_STRETCH,3, 1);

        /* Gauge panel layout */
        static lv_coord_t gp_col[] = {LV_GRID_FR(1), LV_GRID_FR(1), LV_GRID_TEMPLATE_LAST};
        static lv_coord_t gp_row[] = {LV_GRID_CONTENT, LV_GRID_CONTENT, LV_GRID_TEMPLATE_LAST};
        lv_obj_set_grid_dsc_array(gauge_panel, gp_col, gp_row);

        lv_obj_set_grid_cell(temp_meter,   LV_GRID_ALIGN_CENTER, 0, 1, LV_GRID_ALIGN_CENTER, 0, 1);
        lv_obj_set_grid_cell(hum_meter,    LV_GRID_ALIGN_CENTER, 1, 1, LV_GRID_ALIGN_CENTER, 0, 1);
        lv_obj_set_grid_cell(temp_caption, LV_GRID_ALIGN_CENTER, 0, 1, LV_GRID_ALIGN_START,  1, 1);
        lv_obj_set_grid_cell(hum_caption,  LV_GRID_ALIGN_CENTER, 1, 1, LV_GRID_ALIGN_START,  1, 1);

        /* Panel 1 layout */
        lv_obj_set_grid_dsc_array(panel1, grid_1_col_dsc, grid_1_row_dsc);
        lv_obj_set_grid_cell(name,       LV_GRID_ALIGN_START,  2, 2, LV_GRID_ALIGN_CENTER, 0, 1);
        lv_obj_set_grid_cell(dsc,        LV_GRID_ALIGN_STRETCH,2, 4, LV_GRID_ALIGN_START,  1, 1);
        lv_obj_set_grid_cell(email_icn,  LV_GRID_ALIGN_CENTER, 2, 1, LV_GRID_ALIGN_CENTER, 3, 1);
        lv_obj_set_grid_cell(email_label,LV_GRID_ALIGN_START,  3, 1, LV_GRID_ALIGN_CENTER, 3, 1);
        lv_obj_set_grid_cell(call_icn,   LV_GRID_ALIGN_CENTER, 2, 1, LV_GRID_ALIGN_CENTER, 4, 1);
        lv_obj_set_grid_cell(call_label, LV_GRID_ALIGN_START,  3, 1, LV_GRID_ALIGN_CENTER, 4, 1);
        lv_obj_set_grid_cell(log_out_btn,LV_GRID_ALIGN_STRETCH,4, 1, LV_GRID_ALIGN_CENTER, 3, 2);
        lv_obj_set_grid_cell(invite_btn, LV_GRID_ALIGN_STRETCH,5, 1, LV_GRID_ALIGN_CENTER, 3, 2);

        /* Panel 2 layout */
        lv_obj_set_grid_dsc_array(panel2, grid_2_col_dsc, grid_2_row_dsc);
        lv_obj_set_grid_cell(panel2_title,    LV_GRID_ALIGN_START, 0, 2, LV_GRID_ALIGN_CENTER, 0, 1);
        lv_obj_set_grid_cell(user_name,       LV_GRID_ALIGN_STRETCH,0, 1, LV_GRID_ALIGN_CENTER, 3, 1);
        lv_obj_set_grid_cell(user_name_label, LV_GRID_ALIGN_START, 0, 1, LV_GRID_ALIGN_START,  2, 1);
        lv_obj_set_grid_cell(password,        LV_GRID_ALIGN_STRETCH,1, 1, LV_GRID_ALIGN_CENTER, 3, 1);
        lv_obj_set_grid_cell(password_label,  LV_GRID_ALIGN_START, 1, 1, LV_GRID_ALIGN_START,  2, 1);
        lv_obj_set_grid_cell(birthdate,       LV_GRID_ALIGN_STRETCH,1, 1, LV_GRID_ALIGN_CENTER, 6, 1);
        lv_obj_set_grid_cell(birthday_label,  LV_GRID_ALIGN_START, 1, 1, LV_GRID_ALIGN_START,  5, 1);
        lv_obj_set_grid_cell(gender,          LV_GRID_ALIGN_STRETCH,0, 1, LV_GRID_ALIGN_CENTER, 6, 1);
        lv_obj_set_grid_cell(gender_label,    LV_GRID_ALIGN_START, 0, 1, LV_GRID_ALIGN_START,  5, 1);

        /* Panel 3 layout */
        lv_obj_set_grid_dsc_array(panel3, grid_2_col_dsc, grid_2_row_dsc);
        lv_obj_set_grid_cell(panel3_title,     LV_GRID_ALIGN_START, 0, 2, LV_GRID_ALIGN_CENTER, 0, 1);
        lv_obj_set_grid_cell(slider1,          LV_GRID_ALIGN_CENTER,0, 2, LV_GRID_ALIGN_CENTER, 3, 1);
        lv_obj_set_grid_cell(experience_label, LV_GRID_ALIGN_START, 0, 1, LV_GRID_ALIGN_START,  2, 1);
        lv_obj_set_grid_cell(sw2,              LV_GRID_ALIGN_START, 1, 1, LV_GRID_ALIGN_CENTER, 6, 1);
        lv_obj_set_grid_cell(hard_working_label,LV_GRID_ALIGN_START,0, 1, LV_GRID_ALIGN_START,  5, 1);
        lv_obj_set_grid_cell(sw1,              LV_GRID_ALIGN_START, 0, 1, LV_GRID_ALIGN_CENTER, 6, 1);
        lv_obj_set_grid_cell(team_player_label,LV_GRID_ALIGN_START, 1, 1, LV_GRID_ALIGN_START,  5, 1);
    }
    else if(disp_size == DISP_MEDIUM) {
        static lv_coord_t grid_main_col_dsc[] = {LV_GRID_FR(1), LV_GRID_FR(1), LV_GRID_TEMPLATE_LAST};
        static lv_coord_t grid_main_row_dsc[] = {
           LV_GRID_CONTENT, /* bulb panel */
            LV_GRID_CONTENT, /* gauges */
            LV_GRID_CONTENT, /* dashboard */
            LV_GRID_CONTENT, /* config panels */
            LV_GRID_TEMPLATE_LAST
        };

        /*Create the top panel*/
        static lv_coord_t grid_1_col_dsc[] = {LV_GRID_CONTENT, 1, LV_GRID_CONTENT, LV_GRID_FR(1), LV_GRID_TEMPLATE_LAST};
        static lv_coord_t grid_1_row_dsc[] = {
            LV_GRID_CONTENT, /*Name*/
            LV_GRID_CONTENT, /*Description*/
            LV_GRID_CONTENT, /*Email*/
            -20,
            LV_GRID_CONTENT, /*Phone*/
            LV_GRID_CONTENT, /*Buttons*/
            LV_GRID_TEMPLATE_LAST
        };

        static lv_coord_t grid_2_col_dsc[] = {LV_GRID_FR(1), LV_GRID_FR(1), LV_GRID_TEMPLATE_LAST};
        static lv_coord_t grid_2_row_dsc[] = {
            LV_GRID_CONTENT,  /*Title*/
            5,                /*Separator*/
            LV_GRID_CONTENT,  /*Box title*/
            40,               /*Box*/
            LV_GRID_CONTENT,  /*Box title*/
            40,               /*Box*/
            LV_GRID_CONTENT,  /*Box title*/
            40,               /*Box*/
            LV_GRID_CONTENT,  /*Box title*/
            40,               /*Box*/
            LV_GRID_TEMPLATE_LAST
        };

        lv_obj_set_grid_dsc_array(parent, grid_main_col_dsc, grid_main_row_dsc);

        /* ---- Place main panels in grid ---- */
       lv_obj_set_grid_cell(bulb_panel,  LV_GRID_ALIGN_STRETCH, 0, 2, LV_GRID_ALIGN_CENTER, 0, 1);
lv_obj_set_grid_cell(gauge_panel, LV_GRID_ALIGN_STRETCH, 0, 2, LV_GRID_ALIGN_CENTER, 1, 1);
lv_obj_set_grid_cell(panel1,      LV_GRID_ALIGN_STRETCH, 0, 2, LV_GRID_ALIGN_CENTER, 2, 1);
lv_obj_set_grid_cell(panel2,      LV_GRID_ALIGN_STRETCH, 0, 1, LV_GRID_ALIGN_START,  3, 1);
lv_obj_set_grid_cell(panel3,      LV_GRID_ALIGN_STRETCH, 1, 1, LV_GRID_ALIGN_STRETCH,3, 1);

        /* Gauge panel layout */
        static lv_coord_t gp_col[] = {LV_GRID_FR(1), LV_GRID_FR(1), LV_GRID_TEMPLATE_LAST};
        static lv_coord_t gp_row[] = {LV_GRID_CONTENT, LV_GRID_CONTENT, LV_GRID_TEMPLATE_LAST};
        lv_obj_set_grid_dsc_array(gauge_panel, gp_col, gp_row);

        lv_obj_set_grid_cell(temp_meter,   LV_GRID_ALIGN_CENTER, 0, 1, LV_GRID_ALIGN_CENTER, 0, 1);
        lv_obj_set_grid_cell(hum_meter,    LV_GRID_ALIGN_CENTER, 1, 1, LV_GRID_ALIGN_CENTER, 0, 1);
        lv_obj_set_grid_cell(temp_caption, LV_GRID_ALIGN_CENTER, 0, 1, LV_GRID_ALIGN_START,  1, 1);
        lv_obj_set_grid_cell(hum_caption,  LV_GRID_ALIGN_CENTER, 1, 1, LV_GRID_ALIGN_START,  1, 1);

        lv_obj_set_width(log_out_btn, 120);
        lv_obj_set_width(invite_btn, 120);

        lv_obj_set_grid_dsc_array(panel1, grid_1_col_dsc, grid_1_row_dsc);
        lv_obj_set_grid_cell(name,       LV_GRID_ALIGN_START, 2, 2, LV_GRID_ALIGN_CENTER, 0, 1);
        lv_obj_set_grid_cell(dsc,        LV_GRID_ALIGN_STRETCH,2, 2, LV_GRID_ALIGN_START,  1, 1);
        lv_obj_set_grid_cell(email_label,LV_GRID_ALIGN_START, 3, 1, LV_GRID_ALIGN_CENTER, 2, 1);
        lv_obj_set_grid_cell(email_icn,  LV_GRID_ALIGN_CENTER,2, 1, LV_GRID_ALIGN_CENTER, 2, 1);
        lv_obj_set_grid_cell(call_icn,   LV_GRID_ALIGN_CENTER,2, 1, LV_GRID_ALIGN_CENTER, 4, 1);
        lv_obj_set_grid_cell(call_label, LV_GRID_ALIGN_START, 3, 1, LV_GRID_ALIGN_CENTER, 4, 1);
        lv_obj_set_grid_cell(log_out_btn,LV_GRID_ALIGN_START, 1, 1, LV_GRID_ALIGN_CENTER, 5, 1);
        lv_obj_set_grid_cell(invite_btn, LV_GRID_ALIGN_END,   3, 1, LV_GRID_ALIGN_CENTER, 5, 1);

        lv_obj_set_grid_dsc_array(panel2, grid_2_col_dsc, grid_2_row_dsc);
        lv_obj_set_grid_cell(panel2_title,    LV_GRID_ALIGN_START, 0, 2, LV_GRID_ALIGN_CENTER, 0, 1);
        lv_obj_set_grid_cell(user_name_label, LV_GRID_ALIGN_START, 0, 2, LV_GRID_ALIGN_START,  2, 1);
        lv_obj_set_grid_cell(user_name,       LV_GRID_ALIGN_STRETCH,0, 2, LV_GRID_ALIGN_START,  3, 1);
        lv_obj_set_grid_cell(password_label,  LV_GRID_ALIGN_START, 0, 2, LV_GRID_ALIGN_START,  4, 1);
        lv_obj_set_grid_cell(password,        LV_GRID_ALIGN_STRETCH,0, 2, LV_GRID_ALIGN_START,  5, 1);
        lv_obj_set_grid_cell(birthday_label,  LV_GRID_ALIGN_START, 0, 2, LV_GRID_ALIGN_START,  6, 1);
        lv_obj_set_grid_cell(birthdate,       LV_GRID_ALIGN_STRETCH,0, 2, LV_GRID_ALIGN_START,  7, 1);
        lv_obj_set_grid_cell(gender_label,    LV_GRID_ALIGN_START, 0, 2, LV_GRID_ALIGN_START,  8, 1);
        lv_obj_set_grid_cell(gender,          LV_GRID_ALIGN_STRETCH,0, 2, LV_GRID_ALIGN_START,  9, 1);

        lv_obj_set_grid_dsc_array(panel3, grid_2_col_dsc, grid_2_row_dsc);
        lv_obj_set_grid_cell(panel3_title,     LV_GRID_ALIGN_START, 0, 2, LV_GRID_ALIGN_CENTER, 0, 1);
        lv_obj_set_grid_cell(slider1,          LV_GRID_ALIGN_CENTER,0, 2, LV_GRID_ALIGN_CENTER, 3, 1);
        lv_obj_set_grid_cell(experience_label, LV_GRID_ALIGN_START, 0, 1, LV_GRID_ALIGN_START,  2, 1);
        lv_obj_set_grid_cell(hard_working_label,LV_GRID_ALIGN_START,0, 1, LV_GRID_ALIGN_START,  4, 1);
        lv_obj_set_grid_cell(sw2,              LV_GRID_ALIGN_START, 0, 1, LV_GRID_ALIGN_START,  5, 1);
        lv_obj_set_grid_cell(team_player_label,LV_GRID_ALIGN_START, 0, 1, LV_GRID_ALIGN_START,  6, 1);
        lv_obj_set_grid_cell(sw1,              LV_GRID_ALIGN_START, 0, 1, LV_GRID_ALIGN_START,  7, 1);
    }
    else if(disp_size == DISP_SMALL) {
        static lv_coord_t grid_main_col_dsc[] = {LV_GRID_FR(1), LV_GRID_TEMPLATE_LAST};
        static lv_coord_t grid_main_row_dsc[] = {
            LV_GRID_CONTENT, /* gauge_panel */
            LV_GRID_CONTENT, /* panel1 */
            LV_GRID_CONTENT, /* panel2 */
            LV_GRID_CONTENT, /* panel3 */
            LV_GRID_TEMPLATE_LAST
        };
        lv_obj_set_grid_dsc_array(parent, grid_main_col_dsc, grid_main_row_dsc);

        /*Create the top panel*/
        static lv_coord_t grid_1_col_dsc[] = {LV_GRID_CONTENT, LV_GRID_FR(1), LV_GRID_TEMPLATE_LAST};
        static lv_coord_t grid_1_row_dsc[] = {
            LV_GRID_CONTENT, /*Name*/
            LV_GRID_CONTENT, /*Description*/
            LV_GRID_CONTENT, /*Email*/
            LV_GRID_CONTENT, /*Phone number*/
            LV_GRID_CONTENT, /*Button1*/
            LV_GRID_CONTENT, /*Button2*/
            LV_GRID_TEMPLATE_LAST
        };

        static lv_coord_t grid_2_col_dsc[] = {LV_GRID_FR(1), LV_GRID_FR(1), LV_GRID_TEMPLATE_LAST};
        static lv_coord_t grid_2_row_dsc[] = {
            LV_GRID_CONTENT,  /*Title*/
            5,
            LV_GRID_CONTENT,
            40,
            LV_GRID_CONTENT,
            40,
            LV_GRID_CONTENT,
            40,
            LV_GRID_CONTENT,
            40,
            LV_GRID_TEMPLATE_LAST
        };

        /* ---- Place main panels in grid ---- */
        lv_obj_set_grid_cell(gauge_panel, LV_GRID_ALIGN_STRETCH, 0, 1, LV_GRID_ALIGN_CENTER, 0, 1);
        lv_obj_set_grid_cell(panel1,      LV_GRID_ALIGN_STRETCH, 0, 1, LV_GRID_ALIGN_CENTER, 1, 1);
        lv_obj_set_grid_cell(panel2,      LV_GRID_ALIGN_STRETCH, 0, 1, LV_GRID_ALIGN_START,  2, 1);
        lv_obj_set_grid_cell(panel3,      LV_GRID_ALIGN_STRETCH, 0, 1, LV_GRID_ALIGN_START,  3, 1);

        /* Gauge panel layout (stacked) */
        static lv_coord_t gp_col[] = {LV_GRID_FR(1), LV_GRID_TEMPLATE_LAST};
        static lv_coord_t gp_row[] = {LV_GRID_CONTENT, LV_GRID_CONTENT, LV_GRID_CONTENT, LV_GRID_CONTENT, LV_GRID_TEMPLATE_LAST};
        lv_obj_set_grid_dsc_array(gauge_panel, gp_col, gp_row);

        lv_obj_set_grid_cell(temp_meter,   LV_GRID_ALIGN_CENTER, 0, 1, LV_GRID_ALIGN_CENTER, 0, 1);
        lv_obj_set_grid_cell(temp_caption, LV_GRID_ALIGN_CENTER, 0, 1, LV_GRID_ALIGN_START,  1, 1);
        lv_obj_set_grid_cell(hum_meter,    LV_GRID_ALIGN_CENTER, 0, 1, LV_GRID_ALIGN_CENTER, 2, 1);
        lv_obj_set_grid_cell(hum_caption,  LV_GRID_ALIGN_CENTER, 0, 1, LV_GRID_ALIGN_START,  3, 1);

        lv_obj_set_grid_dsc_array(panel1, grid_1_col_dsc, grid_1_row_dsc);

        lv_obj_set_style_text_align(dsc, LV_TEXT_ALIGN_CENTER, 0);

        lv_obj_set_grid_cell(name,       LV_GRID_ALIGN_CENTER, 0, 2, LV_GRID_ALIGN_CENTER, 0, 1);
        lv_obj_set_grid_cell(dsc,        LV_GRID_ALIGN_STRETCH,0, 2, LV_GRID_ALIGN_START,  1, 1);
        lv_obj_set_grid_cell(email_icn,  LV_GRID_ALIGN_CENTER, 0, 1, LV_GRID_ALIGN_CENTER, 2, 1);
        lv_obj_set_grid_cell(email_label,LV_GRID_ALIGN_START,  1, 1, LV_GRID_ALIGN_CENTER, 2, 1);
        lv_obj_set_grid_cell(call_icn,   LV_GRID_ALIGN_CENTER, 0, 1, LV_GRID_ALIGN_CENTER, 3, 1);
        lv_obj_set_grid_cell(call_label, LV_GRID_ALIGN_START,  1, 1, LV_GRID_ALIGN_CENTER, 3, 1);
        lv_obj_set_grid_cell(log_out_btn,LV_GRID_ALIGN_STRETCH,0, 2, LV_GRID_ALIGN_CENTER, 4, 1);
        lv_obj_set_grid_cell(invite_btn, LV_GRID_ALIGN_STRETCH,0, 2, LV_GRID_ALIGN_CENTER, 5, 1);

        lv_obj_set_grid_dsc_array(panel2, grid_2_col_dsc, grid_2_row_dsc);
        lv_obj_set_grid_cell(panel2_title,    LV_GRID_ALIGN_START, 0, 2, LV_GRID_ALIGN_CENTER, 0, 1);
        lv_obj_set_grid_cell(user_name_label, LV_GRID_ALIGN_START, 0, 2, LV_GRID_ALIGN_START,  2, 1);
        lv_obj_set_grid_cell(user_name,       LV_GRID_ALIGN_STRETCH,0, 2, LV_GRID_ALIGN_START,  3, 1);
        lv_obj_set_grid_cell(password_label,  LV_GRID_ALIGN_START, 0, 2, LV_GRID_ALIGN_START,  4, 1);
        lv_obj_set_grid_cell(password,        LV_GRID_ALIGN_STRETCH,0, 2, LV_GRID_ALIGN_START,  5, 1);
        lv_obj_set_grid_cell(birthday_label,  LV_GRID_ALIGN_START, 0, 2, LV_GRID_ALIGN_START,  6, 1);
        lv_obj_set_grid_cell(birthdate,       LV_GRID_ALIGN_STRETCH,0, 2, LV_GRID_ALIGN_START,  7, 1);
        lv_obj_set_grid_cell(gender_label,    LV_GRID_ALIGN_START, 0, 2, LV_GRID_ALIGN_START,  8, 1);
        lv_obj_set_grid_cell(gender,          LV_GRID_ALIGN_STRETCH,0, 2, LV_GRID_ALIGN_START,  9, 1);

        lv_obj_set_height(panel3, LV_SIZE_CONTENT);
        lv_obj_set_grid_dsc_array(panel3, grid_2_col_dsc, grid_2_row_dsc);

        lv_obj_set_grid_cell(panel3_title,     LV_GRID_ALIGN_START, 0, 2, LV_GRID_ALIGN_CENTER, 0, 1);
        lv_obj_set_grid_cell(experience_label, LV_GRID_ALIGN_START, 0, 1, LV_GRID_ALIGN_START,  2, 1);
        lv_obj_set_grid_cell(slider1,          LV_GRID_ALIGN_CENTER,0, 2, LV_GRID_ALIGN_CENTER, 3, 1);
        lv_obj_set_grid_cell(hard_working_label,LV_GRID_ALIGN_START,0, 1, LV_GRID_ALIGN_START,  4, 1);
        lv_obj_set_grid_cell(sw1,              LV_GRID_ALIGN_START,0, 1, LV_GRID_ALIGN_START,  5, 1);
        lv_obj_set_grid_cell(team_player_label,LV_GRID_ALIGN_START,1, 1, LV_GRID_ALIGN_START,  4, 1);
        lv_obj_set_grid_cell(sw2,              LV_GRID_ALIGN_START,1, 1, LV_GRID_ALIGN_START,  5, 1);
    }
}


static void chart_update_cb(lv_timer_t * t)
{
    lv_chart_set_next_value(chart1, ser1, g_temperature);
    lv_chart_refresh(chart1);
}

static void humidity_chart_update_cb(lv_timer_t * t)
{
    lv_chart_set_next_value(chart2, ser2, g_humidity);
    lv_chart_refresh(chart2);
}

/* ============================ ANALYTICS CREATE ============================ */
static void analytics_create(lv_obj_t * parent)
{
    lv_obj_set_flex_flow(parent, LV_FLEX_FLOW_ROW_WRAP);

    static lv_coord_t grid_chart_row_dsc[] = {LV_GRID_CONTENT, LV_GRID_FR(1), 10, LV_GRID_TEMPLATE_LAST};
    static lv_coord_t grid_chart_col_dsc[] = {20, LV_GRID_FR(1), LV_GRID_TEMPLATE_LAST};

    /* ===================== CHART 1: Temperature ===================== */
    lv_obj_t * chart1_cont = lv_obj_create(parent);
    lv_obj_set_flex_grow(chart1_cont, 1);
    lv_obj_set_grid_dsc_array(chart1_cont, grid_chart_col_dsc, grid_chart_row_dsc);
    lv_obj_set_height(chart1_cont, LV_PCT(100));
    lv_obj_set_style_max_height(chart1_cont, 300, 0);

    lv_obj_t * title = lv_label_create(chart1_cont);
    lv_label_set_text(title, "Temperature Trend (1 min)");
    lv_obj_add_style(title, &style_title, 0);
    lv_obj_set_grid_cell(title, LV_GRID_ALIGN_START, 0, 2, LV_GRID_ALIGN_START, 0, 1);

    chart1 = lv_chart_create(chart1_cont);
    lv_obj_add_flag(chart1, LV_OBJ_FLAG_SCROLL_ON_FOCUS);
    lv_obj_set_grid_cell(chart1, LV_GRID_ALIGN_STRETCH, 1, 1, LV_GRID_ALIGN_STRETCH, 1, 1);

    lv_chart_set_type(chart1, LV_CHART_TYPE_LINE);
    lv_chart_set_div_line_count(chart1, 6, 0);
    lv_chart_set_point_count(chart1, 12);

    lv_chart_set_axis_tick(chart1, LV_CHART_AXIS_PRIMARY_Y, 0, 0, 6, 1, true, 60);
    lv_chart_set_axis_tick(chart1, LV_CHART_AXIS_PRIMARY_X, 0, 0, 12, 1, true, 40);

    ser1 = lv_chart_add_series(chart1, lv_theme_get_color_primary(chart1), LV_CHART_AXIS_PRIMARY_Y);
    for(int i = 0; i < 12; i++) {
    lv_chart_set_next_value(chart1, ser1, g_temperature);

    lv_timer_create(chart_update_cb, 5000, NULL);
}

    /* ===================== CHART 2: Humidity ===================== */
    lv_obj_t * chart2_cont = lv_obj_create(parent);
    lv_obj_add_flag(chart2_cont, LV_OBJ_FLAG_FLEX_IN_NEW_TRACK);
    lv_obj_set_flex_grow(chart2_cont, 1);
    lv_obj_set_height(chart2_cont, LV_PCT(100));
    lv_obj_set_style_max_height(chart2_cont, 300, 0);
    lv_obj_set_grid_dsc_array(chart2_cont, grid_chart_col_dsc, grid_chart_row_dsc);

    title = lv_label_create(chart2_cont);
    lv_label_set_text(title, "Humidity Trend (1 min)");
    lv_obj_add_style(title, &style_title, 0);
    lv_obj_set_grid_cell(title, LV_GRID_ALIGN_START, 0, 2, LV_GRID_ALIGN_START, 0, 1);

    chart2 = lv_chart_create(chart2_cont);
    lv_obj_add_flag(chart2, LV_OBJ_FLAG_SCROLL_ON_FOCUS);
    lv_obj_set_grid_cell(chart2, LV_GRID_ALIGN_STRETCH, 1, 1, LV_GRID_ALIGN_STRETCH, 1, 1);

    lv_chart_set_type(chart2, LV_CHART_TYPE_BAR);
    lv_chart_set_div_line_count(chart2, 6, 0);
    lv_chart_set_point_count(chart2, 12);

    lv_chart_set_axis_tick(chart2, LV_CHART_AXIS_PRIMARY_Y, 0, 0, 6, 1, true, 60);
    lv_chart_set_axis_tick(chart2, LV_CHART_AXIS_PRIMARY_X, 0, 0, 12, 1, true, 40);

    ser2 = lv_chart_add_series(chart2, lv_palette_main(LV_PALETTE_CYAN), LV_CHART_AXIS_PRIMARY_Y);
  for(int i = 0; i < 12; i++) {
    lv_chart_set_next_value(chart2, ser2, g_humidity);

}

lv_chart_set_x_start_point(chart2, ser2, 0);

lv_timer_create(humidity_chart_update_cb, 3000, NULL);

    /* ===================== AQI ROW ===================== */
    lv_obj_t * aqi_row = lv_obj_create(parent);
    lv_obj_set_size(aqi_row, LV_PCT(100), 280);
    lv_obj_set_flex_flow(aqi_row, LV_FLEX_FLOW_ROW);
    lv_obj_add_flag(aqi_row, LV_OBJ_FLAG_FLEX_IN_NEW_TRACK);
    lv_obj_set_style_pad_all(aqi_row, 10, 0);

    /* ---------- LEFT: AQI Gauge ---------- */
    lv_obj_t * aqi_box = lv_obj_create(aqi_row);
    lv_obj_set_size(aqi_box, 240, 260);
    lv_obj_set_flex_flow(aqi_box, LV_FLEX_FLOW_COLUMN);
    lv_obj_set_style_pad_all(aqi_box, 10, 0);

    lv_obj_t * aqi_title = lv_label_create(aqi_box);
    lv_label_set_text(aqi_title, "Air Quality Index");
    lv_obj_add_style(aqi_title, &style_title, 0);

    meter1 = lv_meter_create(aqi_box);
    lv_obj_set_size(meter1, 200, 200);
    lv_obj_set_style_bg_opa(meter1, LV_OPA_TRANSP, 0);

    lv_meter_scale_t * scale = lv_meter_add_scale(meter1);
    lv_meter_set_scale_range(meter1, scale, 0, 100, 270, 135);

    lv_meter_indicator_t * indic;

    indic = lv_meter_add_arc(meter1, scale, 20, lv_palette_main(LV_PALETTE_GREEN), 0);
    lv_meter_set_indicator_start_value(meter1, indic, 0);
    lv_meter_set_indicator_end_value(meter1, indic, 50);

    indic = lv_meter_add_arc(meter1, scale, 20, lv_palette_main(LV_PALETTE_ORANGE), 0);
    lv_meter_set_indicator_start_value(meter1, indic, 50);
    lv_meter_set_indicator_end_value(meter1, indic, 75);

    indic = lv_meter_add_arc(meter1, scale, 20, lv_palette_main(LV_PALETTE_RED), 0);
    lv_meter_set_indicator_start_value(meter1, indic, 75);
    lv_meter_set_indicator_end_value(meter1, indic, 100);

    indic = lv_meter_add_needle_line(meter1, scale, 4, lv_color_black(), -10);
    lv_meter_set_indicator_value(meter1, indic, 65);

    lv_obj_t * value_label = lv_label_create(meter1);
    lv_label_set_text(value_label, "65");
    lv_obj_center(value_label);

    /* ---------- RIGHT: Air Composition (FIXED) ---------- */
    lv_obj_t * comp_box = lv_obj_create(aqi_row);
    lv_obj_set_size(comp_box, 240, 260);
    lv_obj_clear_flag(comp_box, LV_OBJ_FLAG_SCROLLABLE);
    lv_obj_set_flex_flow(comp_box, LV_FLEX_FLOW_COLUMN);
    lv_obj_set_style_pad_all(comp_box, 15, 0);
    lv_obj_set_style_pad_row(comp_box, 10, 0);

    lv_obj_t * comp_title = lv_label_create(comp_box);
    lv_label_set_text(comp_title, "Air Composition");
    lv_obj_add_style(comp_title, &style_title, 0);

    lv_obj_t * bars_container = lv_obj_create(comp_box);
    lv_obj_set_flex_grow(bars_container, 1);
    lv_obj_set_width(bars_container, LV_PCT(100));
    lv_obj_clear_flag(bars_container, LV_OBJ_FLAG_SCROLLABLE);
    lv_obj_set_style_pad_all(bars_container, 0, 0);
    lv_obj_set_style_border_width(bars_container, 0, 0);
    lv_obj_set_flex_flow(bars_container, LV_FLEX_FLOW_COLUMN);
    lv_obj_set_flex_align(bars_container,
                          LV_FLEX_ALIGN_SPACE_EVENLY,
                          LV_FLEX_ALIGN_START,
                          LV_FLEX_ALIGN_CENTER);

    /* PM2.5 */
    lv_obj_t * lbl1 = lv_label_create(bars_container);
    lv_label_set_text(lbl1, "PM2.5 - 35%");
    lv_obj_t * bar = lv_bar_create(bars_container);
    lv_bar_set_range(bar, 0, 100);
    lv_bar_set_value(bar, 35, LV_ANIM_OFF);
    lv_obj_set_width(bar, LV_PCT(100));
    lv_obj_set_height(bar, 15);
    lv_obj_set_style_bg_color(bar, lv_palette_main(LV_PALETTE_GREEN), LV_PART_INDICATOR);

    /* PM10 */
    lv_obj_t * lbl2 = lv_label_create(bars_container);
    lv_label_set_text(lbl2, "PM10 - 55%");
    bar = lv_bar_create(bars_container);
    lv_bar_set_range(bar, 0, 100);
    lv_bar_set_value(bar, 55, LV_ANIM_OFF);
    lv_obj_set_width(bar, LV_PCT(100));
    lv_obj_set_height(bar, 15);
    lv_obj_set_style_bg_color(bar, lv_palette_main(LV_PALETTE_ORANGE), LV_PART_INDICATOR);

    /* CO2 */
    lv_obj_t * lbl3 = lv_label_create(bars_container);
    lv_label_set_text(lbl3, "CO2 - 800 ppm");
    bar = lv_bar_create(bars_container);
    lv_bar_set_range(bar, 0, 2000);
    lv_bar_set_value(bar, 800, LV_ANIM_OFF);
    lv_obj_set_width(bar, LV_PCT(100));
    lv_obj_set_height(bar, 15);
    lv_obj_set_style_bg_color(bar, lv_palette_main(LV_PALETTE_BLUE), LV_PART_INDICATOR);
}

static void env_trend_update_cb(lv_timer_t * t)
{

    lv_chart_set_next_value(chart3, ser3, g_temperature);
    lv_chart_set_next_value(chart3, ser4, g_humidity);

    lv_chart_refresh(chart3);
}


/* ============================ SHOP CREATE ============================ */
/* ============================ SHOP CREATE ============================ */
/* ============================ SHOP CREATE ============================ */
/* ============================ SHOP CREATE ============================ */
void shop_create(lv_obj_t * parent)
{
    lv_obj_set_flex_flow(parent, LV_FLEX_FLOW_ROW_WRAP);

    /* ================= Panel ================= */
    lv_obj_t * panel1 = lv_obj_create(parent);
    lv_obj_set_flex_grow(panel1, 1);
    lv_obj_set_height(panel1, LV_PCT(100));
    lv_obj_set_style_max_height(panel1, 300, 0);

    /* ================= Title ================= */
    lv_obj_t * title = lv_label_create(panel1);
    lv_label_set_text(title, "Environmental Trend");
    lv_obj_add_style(title, &style_title, 0);

    lv_obj_t * date = lv_label_create(panel1);
    lv_label_set_text(date, "Temperature & Humidity (Last 7 Samples)");

    /* ================= Chart ================= */

    chart3 = lv_chart_create(panel1);
    lv_obj_set_width(chart3, lv_pct(100));
    lv_obj_set_height(chart3, 200);

    /* Reserve space for Y axis labels */
    lv_obj_set_style_pad_left(chart3, 30, 0);

    lv_chart_set_type(chart3, LV_CHART_TYPE_LINE);
    lv_chart_set_point_count(chart3, 7);

    /* Grid lines */
    lv_chart_set_div_line_count(chart3, 5, 0);

    /* Y-axis ticks */
    lv_chart_set_axis_tick(chart3,
                           LV_CHART_AXIS_PRIMARY_Y,
                           0,
                           0,
                           5,
                           1,
                           true,
                           10);

    /* X-axis ticks */
    lv_chart_set_axis_tick(chart3,
                           LV_CHART_AXIS_PRIMARY_X,
                           0,
                           0,
                           7,
                           1,
                           true,
                           30);

    /* Y-axis range */
    lv_chart_set_range(chart3, LV_CHART_AXIS_PRIMARY_Y, 0, 100);

    /* ================= Series ================= */

    ser3 = lv_chart_add_series(chart3,
                               lv_palette_main(LV_PALETTE_RED),
                               LV_CHART_AXIS_PRIMARY_Y);

    ser4 = lv_chart_add_series(chart3,
                               lv_palette_main(LV_PALETTE_BLUE),
                               LV_CHART_AXIS_PRIMARY_Y);

    /* Initial values */
    for(int i = 0; i < 7; i++)
    {
        lv_chart_set_next_value(chart3, ser3, g_temperature);
        lv_chart_set_next_value(chart3, ser4, g_humidity);
    }

    /* ================= Legend ================= */

    lv_obj_t * legend = lv_obj_create(panel1);
    lv_obj_set_width(legend, lv_pct(100));
    lv_obj_set_height(legend, LV_SIZE_CONTENT);

    lv_obj_set_style_bg_opa(legend, LV_OPA_TRANSP, 0);
    lv_obj_set_style_border_width(legend, 0, 0);

    lv_obj_set_flex_flow(legend, LV_FLEX_FLOW_ROW);

    lv_obj_t * legend_temp = lv_label_create(legend);
    lv_label_set_text(legend_temp, "Temperature (Red)");

    lv_obj_t * legend_hum = lv_label_create(legend);
    lv_label_set_text(legend_hum, "Humidity (Blue)");

    /* ================= Timer ================= */

    lv_timer_create(env_trend_update_cb, 5000, NULL);
}
static void color_changer_create(lv_obj_t * parent)
{
    static lv_palette_t palette[] = {
        LV_PALETTE_BLUE, LV_PALETTE_GREEN, LV_PALETTE_BLUE_GREY,  LV_PALETTE_ORANGE,
        LV_PALETTE_RED, LV_PALETTE_PURPLE, LV_PALETTE_TEAL, _LV_PALETTE_LAST
    };

    lv_obj_t * color_cont = lv_obj_create(parent);
    lv_obj_remove_style_all(color_cont);
    lv_obj_set_flex_flow(color_cont, LV_FLEX_FLOW_ROW);
    lv_obj_set_flex_align(color_cont, LV_FLEX_ALIGN_SPACE_EVENLY, LV_FLEX_ALIGN_CENTER, LV_FLEX_ALIGN_CENTER);
    lv_obj_add_flag(color_cont, LV_OBJ_FLAG_FLOATING);

    lv_obj_set_style_bg_color(color_cont, lv_color_white(), 0);
    lv_obj_set_style_pad_right(color_cont, disp_size == DISP_SMALL ? LV_DPX(47) : LV_DPX(55), 0);
    lv_obj_set_style_bg_opa(color_cont, LV_OPA_COVER, 0);
    lv_obj_set_style_radius(color_cont, LV_RADIUS_CIRCLE, 0);

    if(disp_size == DISP_SMALL) lv_obj_set_size(color_cont, LV_DPX(52), LV_DPX(52));
    else lv_obj_set_size(color_cont, LV_DPX(60), LV_DPX(60));

    lv_obj_align(color_cont, LV_ALIGN_BOTTOM_RIGHT, - LV_DPX(10),  - LV_DPX(10));

    uint32_t i;
    for(i = 0; palette[i] != _LV_PALETTE_LAST; i++) {
        lv_obj_t * c = lv_btn_create(color_cont);
        lv_obj_set_style_bg_color(c, lv_palette_main(palette[i]), 0);
        lv_obj_set_style_radius(c, LV_RADIUS_CIRCLE, 0);
        lv_obj_set_style_opa(c, LV_OPA_TRANSP, 0);
        lv_obj_set_size(c, 20, 20);
        lv_obj_add_event_cb(c, color_event_cb, LV_EVENT_ALL, &palette[i]);
        lv_obj_clear_flag(c, LV_OBJ_FLAG_SCROLL_ON_FOCUS);
    }

    lv_obj_t * btn = lv_btn_create(parent);
    lv_obj_add_flag(btn, LV_OBJ_FLAG_FLOATING | LV_OBJ_FLAG_CLICKABLE);
    lv_obj_set_style_bg_color(btn, lv_color_white(), LV_STATE_CHECKED);
    lv_obj_set_style_pad_all(btn, 10, 0);
    lv_obj_set_style_radius(btn, LV_RADIUS_CIRCLE, 0);
    lv_obj_add_event_cb(btn, color_changer_event_cb, LV_EVENT_ALL, color_cont);
    lv_obj_set_style_shadow_width(btn, 0, 0);
    lv_obj_set_style_bg_img_src(btn, LV_SYMBOL_TINT, 0);

    if(disp_size == DISP_SMALL) {
        lv_obj_set_size(btn, LV_DPX(42), LV_DPX(42));
        lv_obj_align(btn, LV_ALIGN_BOTTOM_RIGHT, -LV_DPX(15), -LV_DPX(15));
    }
    else {
        lv_obj_set_size(btn, LV_DPX(50), LV_DPX(50));
        lv_obj_align(btn, LV_ALIGN_BOTTOM_RIGHT, -LV_DPX(15), -LV_DPX(15));
    }
}

static void color_changer_anim_cb(void * var, int32_t v)
{
    lv_obj_t * obj = var;
    lv_coord_t max_w = lv_obj_get_width(lv_obj_get_parent(obj)) - LV_DPX(20);
    lv_coord_t w;

    if(disp_size == DISP_SMALL) {
        w = lv_map(v, 0, 256, LV_DPX(52), max_w);
        lv_obj_set_width(obj, w);
        lv_obj_align(obj, LV_ALIGN_BOTTOM_RIGHT, - LV_DPX(10),  - LV_DPX(10));
    }
    else {
        w = lv_map(v, 0, 256, LV_DPX(60), max_w);
        lv_obj_set_width(obj, w);
        lv_obj_align(obj, LV_ALIGN_BOTTOM_RIGHT, - LV_DPX(10),  - LV_DPX(10));
    }

    if(v > LV_OPA_COVER) v = LV_OPA_COVER;

    uint32_t i;
    for(i = 0; i < lv_obj_get_child_cnt(obj); i++) {
        lv_obj_set_style_opa(lv_obj_get_child(obj, i), v, 0);
    }

}

static void color_changer_event_cb(lv_event_t * e)
{
    if(lv_event_get_code(e) == LV_EVENT_CLICKED) {
        lv_obj_t * color_cont = lv_event_get_user_data(e);
        if(lv_obj_get_width(color_cont) < LV_HOR_RES / 2) {
            lv_anim_t a;
            lv_anim_init(&a);
            lv_anim_set_var(&a, color_cont);
            lv_anim_set_exec_cb(&a, color_changer_anim_cb);
            lv_anim_set_values(&a, 0, 256);
            lv_anim_set_time(&a, 200);
            lv_anim_start(&a);
        }
        else {
            lv_anim_t a;
            lv_anim_init(&a);
            lv_anim_set_var(&a, color_cont);
            lv_anim_set_exec_cb(&a, color_changer_anim_cb);
            lv_anim_set_values(&a, 256, 0);
            lv_anim_set_time(&a, 200);
            lv_anim_start(&a);
        }
    }
}
static void color_event_cb(lv_event_t * e)
{
    lv_event_code_t code = lv_event_get_code(e);
    lv_obj_t * obj = lv_event_get_target(e);

    if(code == LV_EVENT_FOCUSED) {
        lv_obj_t * color_cont = lv_obj_get_parent(obj);
        if(lv_obj_get_width(color_cont) < LV_HOR_RES / 2) {
            lv_anim_t a;
            lv_anim_init(&a);
            lv_anim_set_var(&a, color_cont);
            lv_anim_set_exec_cb(&a, color_changer_anim_cb);
            lv_anim_set_values(&a, 0, 256);
            lv_anim_set_time(&a, 200);
            lv_anim_start(&a);
        }
    }
    else if(code == LV_EVENT_CLICKED) {
        lv_palette_t * palette_primary = lv_event_get_user_data(e);
        lv_palette_t palette_secondary = (*palette_primary) + 3; /*Use another palette as secondary*/
        if(palette_secondary >= _LV_PALETTE_LAST) palette_secondary = 0;
#if LV_USE_THEME_DEFAULT
        lv_theme_default_init(NULL, lv_palette_main(*palette_primary), lv_palette_main(palette_secondary),
                              LV_THEME_DEFAULT_DARK, font_normal);
#endif
        lv_color_t color = lv_palette_main(*palette_primary);
        lv_style_set_text_color(&style_icon, color);
        lv_chart_set_series_color(chart1, ser1, color);
        lv_chart_set_series_color(chart2, ser3, color);
    }
}

static lv_obj_t * create_meter_box(lv_obj_t * parent, const char * title, const char * text1, const char * text2,
                                   const char * text3)
{
    lv_obj_t * cont = lv_obj_create(parent);
    lv_obj_set_height(cont, LV_SIZE_CONTENT);
    lv_obj_set_flex_grow(cont, 1);

    lv_obj_t * title_label = lv_label_create(cont);
    lv_label_set_text(title_label, title);
    lv_obj_add_style(title_label, &style_title, 0);

    lv_obj_t * meter = lv_meter_create(cont);
    lv_obj_remove_style(meter, NULL, LV_PART_MAIN);
    lv_obj_remove_style(meter, NULL, LV_PART_INDICATOR);
    lv_obj_set_width(meter, LV_PCT(100));

    lv_obj_t * bullet1 = lv_obj_create(cont);
    lv_obj_set_size(bullet1, 13, 13);
    lv_obj_remove_style(bullet1, NULL, LV_PART_SCROLLBAR);
    lv_obj_add_style(bullet1, &style_bullet, 0);
    lv_obj_set_style_bg_color(bullet1, lv_palette_main(LV_PALETTE_RED), 0);
    lv_obj_t * label1 = lv_label_create(cont);
    lv_label_set_text(label1, text1);

    lv_obj_t * bullet2 = lv_obj_create(cont);
    lv_obj_set_size(bullet2, 13, 13);
    lv_obj_remove_style(bullet2, NULL, LV_PART_SCROLLBAR);
    lv_obj_add_style(bullet2, &style_bullet, 0);
    lv_obj_set_style_bg_color(bullet2, lv_palette_main(LV_PALETTE_BLUE), 0);
    lv_obj_t * label2 = lv_label_create(cont);
    lv_label_set_text(label2, text2);

    lv_obj_t * bullet3 = lv_obj_create(cont);
    lv_obj_set_size(bullet3, 13, 13);
    lv_obj_remove_style(bullet3,  NULL, LV_PART_SCROLLBAR);
    lv_obj_add_style(bullet3, &style_bullet, 0);
    lv_obj_set_style_bg_color(bullet3, lv_palette_main(LV_PALETTE_GREEN), 0);
    lv_obj_t * label3 = lv_label_create(cont);
    lv_label_set_text(label3, text3);

    if(disp_size == DISP_MEDIUM) {
        static lv_coord_t grid_col_dsc[] = {LV_GRID_CONTENT, LV_GRID_FR(1), LV_GRID_CONTENT, LV_GRID_FR(8), LV_GRID_TEMPLATE_LAST};
        static lv_coord_t grid_row_dsc[] = {LV_GRID_CONTENT, LV_GRID_FR(1), LV_GRID_CONTENT, LV_GRID_CONTENT, LV_GRID_CONTENT, LV_GRID_FR(1), LV_GRID_TEMPLATE_LAST};

        lv_obj_set_grid_dsc_array(cont, grid_col_dsc, grid_row_dsc);
        lv_obj_set_grid_cell(title_label, LV_GRID_ALIGN_START, 0, 4, LV_GRID_ALIGN_START, 0, 1);
        lv_obj_set_grid_cell(meter, LV_GRID_ALIGN_START, 0, 1, LV_GRID_ALIGN_START, 1, 3);
        lv_obj_set_grid_cell(bullet1, LV_GRID_ALIGN_START, 2, 1, LV_GRID_ALIGN_CENTER, 2, 1);
        lv_obj_set_grid_cell(bullet2, LV_GRID_ALIGN_START, 2, 1, LV_GRID_ALIGN_CENTER, 3, 1);
        lv_obj_set_grid_cell(bullet3, LV_GRID_ALIGN_START, 2, 1, LV_GRID_ALIGN_CENTER, 4, 1);
        lv_obj_set_grid_cell(label1, LV_GRID_ALIGN_STRETCH, 3, 1, LV_GRID_ALIGN_CENTER, 2, 1);
        lv_obj_set_grid_cell(label2, LV_GRID_ALIGN_STRETCH, 3, 1, LV_GRID_ALIGN_CENTER, 3, 1);
        lv_obj_set_grid_cell(label3, LV_GRID_ALIGN_STRETCH, 3, 1, LV_GRID_ALIGN_CENTER, 4, 1);
    }
    else {
        static lv_coord_t grid_col_dsc[] = {LV_GRID_CONTENT, LV_GRID_FR(1), LV_GRID_TEMPLATE_LAST};
        static lv_coord_t grid_row_dsc[] = {LV_GRID_CONTENT, LV_GRID_CONTENT, LV_GRID_CONTENT, LV_GRID_CONTENT, LV_GRID_CONTENT, LV_GRID_TEMPLATE_LAST};
        lv_obj_set_grid_dsc_array(cont, grid_col_dsc, grid_row_dsc);
        lv_obj_set_grid_cell(title_label, LV_GRID_ALIGN_START, 0, 2, LV_GRID_ALIGN_START, 0, 1);
        lv_obj_set_grid_cell(meter, LV_GRID_ALIGN_START, 0, 2, LV_GRID_ALIGN_START, 1, 1);
        lv_obj_set_grid_cell(bullet1, LV_GRID_ALIGN_START, 0, 1, LV_GRID_ALIGN_START, 2, 1);
        lv_obj_set_grid_cell(bullet2, LV_GRID_ALIGN_START, 0, 1, LV_GRID_ALIGN_START, 3, 1);
        lv_obj_set_grid_cell(bullet3, LV_GRID_ALIGN_START, 0, 1, LV_GRID_ALIGN_START, 4, 1);
        lv_obj_set_grid_cell(label1, LV_GRID_ALIGN_STRETCH, 1, 1, LV_GRID_ALIGN_START, 2, 1);
        lv_obj_set_grid_cell(label2, LV_GRID_ALIGN_STRETCH, 1, 1, LV_GRID_ALIGN_START, 3, 1);
        lv_obj_set_grid_cell(label3, LV_GRID_ALIGN_STRETCH, 1, 1, LV_GRID_ALIGN_START, 4, 1);
    }


    return meter;

}

static lv_obj_t * create_shop_item(lv_obj_t * parent, const void * img_src, const char * name, const char * category,
                                   const char * price)
{
    static lv_coord_t grid_col_dsc[] = {LV_GRID_CONTENT, 5, LV_GRID_FR(1), LV_GRID_FR(1), LV_GRID_TEMPLATE_LAST};
    static lv_coord_t grid_row_dsc[] = {LV_GRID_FR(1), LV_GRID_FR(1), LV_GRID_TEMPLATE_LAST};

    lv_obj_t * cont = lv_obj_create(parent);
    lv_obj_remove_style_all(cont);
    lv_obj_set_size(cont, LV_PCT(100), LV_SIZE_CONTENT);
    lv_obj_set_grid_dsc_array(cont, grid_col_dsc, grid_row_dsc);

    lv_obj_t * img = lv_img_create(cont);
    lv_img_set_src(img, img_src);
    lv_obj_set_grid_cell(img, LV_GRID_ALIGN_START, 0, 1, LV_GRID_ALIGN_START, 0, 2);

    lv_obj_t * label;
    label = lv_label_create(cont);
    lv_label_set_text(label, name);
    lv_obj_set_grid_cell(label, LV_GRID_ALIGN_START, 2, 1, LV_GRID_ALIGN_END, 0, 1);

    label = lv_label_create(cont);
    lv_label_set_text(label, category);
    lv_obj_add_style(label, &style_text_muted, 0);
    lv_obj_set_grid_cell(label, LV_GRID_ALIGN_START, 2, 1, LV_GRID_ALIGN_START, 1, 1);

    label = lv_label_create(cont);
    lv_label_set_text(label, price);
    lv_obj_set_grid_cell(label, LV_GRID_ALIGN_END, 3, 1, LV_GRID_ALIGN_END, 0, 1);

    return cont;
}

static void ta_event_cb(lv_event_t * e)
{
    lv_event_code_t code = lv_event_get_code(e);
    lv_obj_t * ta = lv_event_get_target(e);
    lv_obj_t * kb = lv_event_get_user_data(e);
    if(code == LV_EVENT_FOCUSED) {
        if(lv_indev_get_type(lv_indev_get_act()) != LV_INDEV_TYPE_KEYPAD) {
            lv_keyboard_set_textarea(kb, ta);
            lv_obj_set_style_max_height(kb, LV_HOR_RES * 2 / 3, 0);
            lv_obj_update_layout(tv);   /*Be sure the sizes are recalculated*/
            lv_obj_set_height(tv, LV_VER_RES - lv_obj_get_height(kb));
            lv_obj_clear_flag(kb, LV_OBJ_FLAG_HIDDEN);
            lv_obj_scroll_to_view_recursive(ta, LV_ANIM_OFF);
        }
    }
    else if(code == LV_EVENT_DEFOCUSED) {
        lv_keyboard_set_textarea(kb, NULL);
        lv_obj_set_height(tv, LV_VER_RES);
        lv_obj_add_flag(kb, LV_OBJ_FLAG_HIDDEN);
        lv_indev_reset(NULL, ta);

    }
    else if(code == LV_EVENT_READY || code == LV_EVENT_CANCEL) {
        lv_obj_set_height(tv, LV_VER_RES);
        lv_obj_add_flag(kb, LV_OBJ_FLAG_HIDDEN);
        lv_obj_clear_state(ta, LV_STATE_FOCUSED);
        lv_indev_reset(NULL, ta);   /*To forget the last clicked object to make it focusable again*/
    }
}

static void birthday_event_cb(lv_event_t * e)
{
    lv_event_code_t code = lv_event_get_code(e);
    lv_obj_t * ta = lv_event_get_target(e);

    if(code == LV_EVENT_FOCUSED) {
        if(lv_indev_get_type(lv_indev_get_act()) == LV_INDEV_TYPE_POINTER) {
            if(calendar == NULL) {
                lv_obj_add_flag(lv_layer_top(), LV_OBJ_FLAG_CLICKABLE);
                calendar = lv_calendar_create(lv_layer_top());
                lv_obj_set_style_bg_opa(lv_layer_top(), LV_OPA_50, 0);
                lv_obj_set_style_bg_color(lv_layer_top(), lv_palette_main(LV_PALETTE_GREY), 0);
                if(disp_size == DISP_SMALL) lv_obj_set_size(calendar, 180, 200);
                else if(disp_size == DISP_MEDIUM) lv_obj_set_size(calendar, 200, 220);
                else  lv_obj_set_size(calendar, 300, 330);
                lv_calendar_set_showed_date(calendar, 1990, 01);
                lv_obj_align(calendar, LV_ALIGN_CENTER, 0, 30);
                lv_obj_add_event_cb(calendar, calendar_event_cb, LV_EVENT_ALL, ta);

                lv_calendar_header_dropdown_create(calendar);
            }
        }
    }
}

static void calendar_event_cb(lv_event_t * e)
{
    lv_event_code_t code = lv_event_get_code(e);
    lv_obj_t * ta = lv_event_get_user_data(e);
    lv_obj_t * obj = lv_event_get_current_target(e);
    if(code == LV_EVENT_VALUE_CHANGED) {
        lv_calendar_date_t d;
        lv_calendar_get_pressed_date(obj, &d);
        char buf[32];
        lv_snprintf(buf, sizeof(buf), "%02d.%02d.%d", d.day, d.month, d.year);
        lv_textarea_set_text(ta, buf);

        lv_obj_del(calendar);
        calendar = NULL;
        lv_obj_clear_flag(lv_layer_top(), LV_OBJ_FLAG_CLICKABLE);
        lv_obj_set_style_bg_opa(lv_layer_top(), LV_OPA_TRANSP, 0);
    }
}

static void slider_event_cb(lv_event_t * e)
{
    lv_event_code_t code = lv_event_get_code(e);
    lv_obj_t * obj = lv_event_get_target(e);

    if(code == LV_EVENT_REFR_EXT_DRAW_SIZE) {
        lv_coord_t * s = lv_event_get_param(e);
        *s = LV_MAX(*s, 60);
    }
    else if(code == LV_EVENT_DRAW_PART_END) {
        lv_obj_draw_part_dsc_t * dsc = lv_event_get_param(e);
        if(dsc->part == LV_PART_KNOB && lv_obj_has_state(obj, LV_STATE_PRESSED)) {
            char buf[8];
            lv_snprintf(buf, sizeof(buf), "%"LV_PRId32, lv_slider_get_value(obj));

            lv_point_t text_size;
            lv_txt_get_size(&text_size, buf, font_normal, 0, 0, LV_COORD_MAX, LV_TEXT_FLAG_NONE);

            lv_area_t txt_area;
            txt_area.x1 = dsc->draw_area->x1 + lv_area_get_width(dsc->draw_area) / 2 - text_size.x / 2;
            txt_area.x2 = txt_area.x1 + text_size.x;
            txt_area.y2 = dsc->draw_area->y1 - 10;
            txt_area.y1 = txt_area.y2 - text_size.y;

            lv_area_t bg_area;
            bg_area.x1 = txt_area.x1 - LV_DPX(8);
            bg_area.x2 = txt_area.x2 + LV_DPX(8);
            bg_area.y1 = txt_area.y1 - LV_DPX(8);
            bg_area.y2 = txt_area.y2 + LV_DPX(8);

            lv_draw_rect_dsc_t rect_dsc;
            lv_draw_rect_dsc_init(&rect_dsc);
            rect_dsc.bg_color = lv_palette_darken(LV_PALETTE_GREY, 3);
            rect_dsc.radius = LV_DPX(5);
            lv_draw_rect(dsc->draw_ctx, &rect_dsc, &bg_area);

            lv_draw_label_dsc_t label_dsc;
            lv_draw_label_dsc_init(&label_dsc);
            label_dsc.color = lv_color_white();
            label_dsc.font = font_normal;
            lv_draw_label(dsc->draw_ctx, &label_dsc, &txt_area, buf, NULL);
        }
    }
}

static void chart_event_cb(lv_event_t * e)
{
    lv_event_code_t code = lv_event_get_code(e);
    lv_obj_t * obj = lv_event_get_target(e);

    if(code == LV_EVENT_PRESSED || code == LV_EVENT_RELEASED) {
        lv_obj_invalidate(obj); /*To make the value boxes visible*/
    }
    else if(code == LV_EVENT_DRAW_PART_BEGIN) {
        lv_obj_draw_part_dsc_t * dsc = lv_event_get_param(e);
        /*Set the markers' text*/
        if(dsc->part == LV_PART_TICKS && dsc->id == LV_CHART_AXIS_PRIMARY_X) {
            if(lv_chart_get_type(obj) == LV_CHART_TYPE_BAR) {
                const char * month[] = {"I", "II", "III", "IV", "V", "VI", "VII", "VIII", "IX", "X", "XI", "XII"};
                lv_snprintf(dsc->text, dsc->text_length, "%s", month[dsc->value]);
            }
            else {
                const char * month[] = {"Jan", "Febr", "March", "Apr", "May", "Jun", "July", "Aug", "Sept", "Oct", "Nov", "Dec"};
                lv_snprintf(dsc->text, dsc->text_length, "%s", month[dsc->value]);
            }
        }

        /*Add the faded area before the lines are drawn */
        else if(dsc->part == LV_PART_ITEMS) {
#if LV_DRAW_COMPLEX
            /*Add  a line mask that keeps the area below the line*/
            if(dsc->p1 && dsc->p2) {
                lv_draw_mask_line_param_t line_mask_param;
                lv_draw_mask_line_points_init(&line_mask_param, dsc->p1->x, dsc->p1->y, dsc->p2->x, dsc->p2->y,
                                              LV_DRAW_MASK_LINE_SIDE_BOTTOM);
                int16_t line_mask_id = lv_draw_mask_add(&line_mask_param, NULL);

                /*Add a fade effect: transparent bottom covering top*/
                lv_coord_t h = lv_obj_get_height(obj);
                lv_draw_mask_fade_param_t fade_mask_param;
                lv_draw_mask_fade_init(&fade_mask_param, &obj->coords, LV_OPA_COVER, obj->coords.y1 + h / 8, LV_OPA_TRANSP,
                                       obj->coords.y2);
                int16_t fade_mask_id = lv_draw_mask_add(&fade_mask_param, NULL);

                /*Draw a rectangle that will be affected by the mask*/
                lv_draw_rect_dsc_t draw_rect_dsc;
                lv_draw_rect_dsc_init(&draw_rect_dsc);
                draw_rect_dsc.bg_opa = LV_OPA_50;
                draw_rect_dsc.bg_color = dsc->line_dsc->color;

                lv_area_t obj_clip_area;
                _lv_area_intersect(&obj_clip_area, dsc->draw_ctx->clip_area, &obj->coords);
                const lv_area_t * clip_area_ori = dsc->draw_ctx->clip_area;
                dsc->draw_ctx->clip_area = &obj_clip_area;
                lv_area_t a;
                a.x1 = dsc->p1->x;
                a.x2 = dsc->p2->x - 1;
                a.y1 = LV_MIN(dsc->p1->y, dsc->p2->y);
                a.y2 = obj->coords.y2;
                lv_draw_rect(dsc->draw_ctx, &draw_rect_dsc, &a);
                dsc->draw_ctx->clip_area = clip_area_ori;
                /*Remove the masks*/
                lv_draw_mask_remove_id(line_mask_id);
                lv_draw_mask_remove_id(fade_mask_id);
            }
#endif


            const lv_chart_series_t * ser = dsc->sub_part_ptr;

            if(lv_chart_get_pressed_point(obj) == dsc->id) {
                if(lv_chart_get_type(obj) == LV_CHART_TYPE_LINE) {
                    dsc->rect_dsc->outline_color = lv_color_white();
                    dsc->rect_dsc->outline_width = 2;
                }
                else {
                    dsc->rect_dsc->shadow_color = ser->color;
                    dsc->rect_dsc->shadow_width = 15;
                    dsc->rect_dsc->shadow_spread = 0;
                }

                char buf[8];
                lv_snprintf(buf, sizeof(buf), "%"LV_PRIu32, dsc->value);

                lv_point_t text_size;
                lv_txt_get_size(&text_size, buf, font_normal, 0, 0, LV_COORD_MAX, LV_TEXT_FLAG_NONE);

                lv_area_t txt_area;
                if(lv_chart_get_type(obj) == LV_CHART_TYPE_BAR) {
                    txt_area.y2 = dsc->draw_area->y1 - LV_DPX(15);
                    txt_area.y1 = txt_area.y2 - text_size.y;
                    if(ser == lv_chart_get_series_next(obj, NULL)) {
                        txt_area.x1 = dsc->draw_area->x1 + lv_area_get_width(dsc->draw_area) / 2;
                        txt_area.x2 = txt_area.x1 + text_size.x;
                    }
                    else {
                        txt_area.x2 = dsc->draw_area->x1 + lv_area_get_width(dsc->draw_area) / 2;
                        txt_area.x1 = txt_area.x2 - text_size.x;
                    }
                }
                else {
                    txt_area.x1 = dsc->draw_area->x1 + lv_area_get_width(dsc->draw_area) / 2 - text_size.x / 2;
                    txt_area.x2 = txt_area.x1 + text_size.x;
                    txt_area.y2 = dsc->draw_area->y1 - LV_DPX(15);
                    txt_area.y1 = txt_area.y2 - text_size.y;
                }

                lv_area_t bg_area;
                bg_area.x1 = txt_area.x1 - LV_DPX(8);
                bg_area.x2 = txt_area.x2 + LV_DPX(8);
                bg_area.y1 = txt_area.y1 - LV_DPX(8);
                bg_area.y2 = txt_area.y2 + LV_DPX(8);

                lv_draw_rect_dsc_t rect_dsc;
                lv_draw_rect_dsc_init(&rect_dsc);
                rect_dsc.bg_color = ser->color;
                rect_dsc.radius = LV_DPX(5);
                lv_draw_rect(dsc->draw_ctx, &rect_dsc, &bg_area);

                lv_draw_label_dsc_t label_dsc;
                lv_draw_label_dsc_init(&label_dsc);
                label_dsc.color = lv_color_white();
                label_dsc.font = font_normal;
                lv_draw_label(dsc->draw_ctx, &label_dsc, &txt_area,  buf, NULL);
            }
            else {
                dsc->rect_dsc->outline_width = 0;
                dsc->rect_dsc->shadow_width = 0;
            }
        }
    }
}


static void shop_chart_event_cb(lv_event_t * e)
{
    lv_event_code_t code = lv_event_get_code(e);
    if(code == LV_EVENT_DRAW_PART_BEGIN) {
        lv_obj_draw_part_dsc_t * dsc = lv_event_get_param(e);
        /*Set the markers' text*/
        if(dsc->part == LV_PART_TICKS && dsc->id == LV_CHART_AXIS_PRIMARY_X) {
            const char * month[] = {"Jan", "Febr", "March", "Apr", "May", "Jun", "July", "Aug", "Sept", "Oct", "Nov", "Dec"};
            lv_snprintf(dsc->text, dsc->text_length, "%s", month[dsc->value]);
        }
        if(dsc->part == LV_PART_ITEMS) {
            dsc->rect_dsc->bg_opa = LV_OPA_TRANSP; /*We will draw it later*/
        }
    }
    if(code == LV_EVENT_DRAW_PART_END) {
        lv_obj_draw_part_dsc_t * dsc = lv_event_get_param(e);
        /*Add the faded area before the lines are drawn */
        if(dsc->part == LV_PART_ITEMS) {
            static const uint32_t devices[10] = {32, 43, 21, 56, 29, 36, 19, 25, 62, 35};
            static const uint32_t clothes[10] = {12, 19, 23, 31, 27, 32, 32, 11, 21, 32};
            static const uint32_t services[10] = {56, 38, 56, 13, 44, 32, 49, 64, 17, 33};

            lv_draw_rect_dsc_t draw_rect_dsc;
            lv_draw_rect_dsc_init(&draw_rect_dsc);

            lv_coord_t h = lv_area_get_height(dsc->draw_area);

            lv_area_t a;
            a.x1 = dsc->draw_area->x1;
            a.x2 = dsc->draw_area->x2;

            a.y1 = dsc->draw_area->y1;
            a.y2 = a.y1 + 4 + (devices[dsc->id] * h) / 100; /*+4 to overlap the radius*/
            draw_rect_dsc.bg_color = lv_palette_main(LV_PALETTE_RED);
            draw_rect_dsc.radius = 4;
            lv_draw_rect(dsc->draw_ctx, &draw_rect_dsc, &a);

            a.y1 = a.y2 - 4;                                    /*-4 to overlap the radius*/
            a.y2 = a.y1 + (clothes[dsc->id] * h) / 100;
            draw_rect_dsc.bg_color = lv_palette_main(LV_PALETTE_BLUE);
            draw_rect_dsc.radius = 0;
            lv_draw_rect(dsc->draw_ctx, &draw_rect_dsc, &a);

            a.y1 = a.y2;
            a.y2 = a.y1 + (services[dsc->id] * h) / 100;
            draw_rect_dsc.bg_color = lv_palette_main(LV_PALETTE_GREEN);
            lv_draw_rect(dsc->draw_ctx, &draw_rect_dsc, &a);
        }
    }
}


static void meter1_indic1_anim_cb(void * var, int32_t v)
{
    lv_meter_set_indicator_end_value(meter1, var, v);

    lv_obj_t * card = lv_obj_get_parent(meter1);
    lv_obj_t * label = lv_obj_get_child(card, -5);
    lv_label_set_text_fmt(label, "Revenue: %"LV_PRId32" %%", v);
}

static void meter1_indic2_anim_cb(void * var, int32_t v)
{
    lv_meter_set_indicator_end_value(meter1, var, v);

    lv_obj_t * card = lv_obj_get_parent(meter1);
    lv_obj_t * label = lv_obj_get_child(card, -3);
    lv_label_set_text_fmt(label, "Sales: %"LV_PRId32" %%", v);

}

static void meter1_indic3_anim_cb(void * var, int32_t v)
{
    lv_meter_set_indicator_end_value(meter1, var, v);

    lv_obj_t * card = lv_obj_get_parent(meter1);
    lv_obj_t * label = lv_obj_get_child(card, -1);
    lv_label_set_text_fmt(label, "Costs: %"LV_PRId32" %%", v);
}

static void meter2_timer_cb(lv_timer_t * timer)
{
    lv_meter_indicator_t ** indics = timer->user_data;

    static bool down1 = false;
    static bool down2 = false;
    static bool down3 = false;


    if(down1) {
        session_desktop -= 137;
        if(session_desktop < 1400) down1 = false;
    }
    else {
        session_desktop += 116;
        if(session_desktop > 4500) down1 = true;
    }

    if(down2) {
        session_tablet -= 3;
        if(session_tablet < 1400) down2 = false;
    }
    else {
        session_tablet += 9;
        if(session_tablet > 4500) down2 = true;
    }

    if(down3) {
        session_mobile -= 57;
        if(session_mobile < 1400) down3 = false;
    }
    else {
        session_mobile += 76;
        if(session_mobile > 4500) down3 = true;
    }

    uint32_t all = session_desktop + session_tablet + session_mobile;
    uint32_t pct1 = (session_desktop * 97) / all;
    uint32_t pct2 = (session_tablet * 97) / all;

    lv_meter_set_indicator_start_value(meter2, indics[0], 0);
    lv_meter_set_indicator_end_value(meter2, indics[0], pct1);

    lv_meter_set_indicator_start_value(meter2, indics[1], pct1 + 1);
    lv_meter_set_indicator_end_value(meter2, indics[1], pct1 + 1 + pct2);

    lv_meter_set_indicator_start_value(meter2, indics[2], pct1 + 1 + pct2 + 1);
    lv_meter_set_indicator_end_value(meter2, indics[2], 99);

    lv_obj_t * card = lv_obj_get_parent(meter2);
    lv_obj_t * label;

    label = lv_obj_get_child(card, -5);
    lv_label_set_text_fmt(label, "Desktop: %"LV_PRIu32, session_desktop);

    label = lv_obj_get_child(card, -3);
    lv_label_set_text_fmt(label, "Tablet: %"LV_PRIu32, session_tablet);

    label = lv_obj_get_child(card, -1);
    lv_label_set_text_fmt(label, "Mobile: %"LV_PRIu32, session_mobile);
}

static void meter3_anim_cb(void * var, int32_t v)
{
    lv_meter_set_indicator_value(meter3, var, v);

    lv_obj_t * label = lv_obj_get_child(meter3, 0);
    lv_label_set_text_fmt(label, "%"LV_PRId32, v);
}

#endif



Bluetooth device name:
CrowPanel_Control

Example Bluetooth output:
Temp: 26.3C Hum: 63%
