Description
ZE12A is a general-purpose and high-performance electrochemical module. It can detect the CO, SO2, NO2, O3 based on electrochemical principle, it has good selectivity and stability. A temperature sensor is built-in for temperature compensation. It has the digital output and analog voltage output at the same time which facilities the usage and calibration and shorten the development period. It is a combination of mature electrochemical detection principle and sophisticated circuit design, to meet customers’different detection needs.
Application:
City atmospheric environmental monitoring, enterprise environment monitoring. Factory area unorganized emission monitoring, emergency monitoring, environment evaluation monitoring, Portable gas detector, various gas detection equipment and smart home appliance.
Features:
- High sensitivity & resolution
- Low power consumption & long working life
- UART and analog voltage output
- Good stability and excellent anti-interference ability
Specifications
- Model No.: ZE12A
- Target Gas: CO, SO2, NO2,O3, H2S
- Detection range: CO(0-10ppm), SO2(0-1ppm), NO2(0-1ppm), O3(0-1ppm), H2S(0-1ppm)
- Output Data:
- Ø DAC (0.4～2V) standard voltage signal
- Ø UART Output (3V level, compatible with 5V)
- Working Voltage: DC 5.0±0.1V
- Response Time: ≤120 Sec
- Resolution: ≤10ppb
- Dimension: Φ39×44 mm
- Weight: 75g
- Operating Environment: Temperature: -20～50℃
- Humidity: 15%RH-90％RH (no condensation)
- Storage Temperature: 0～20℃
- Life Span: 2 years (in air)
Package Includes:

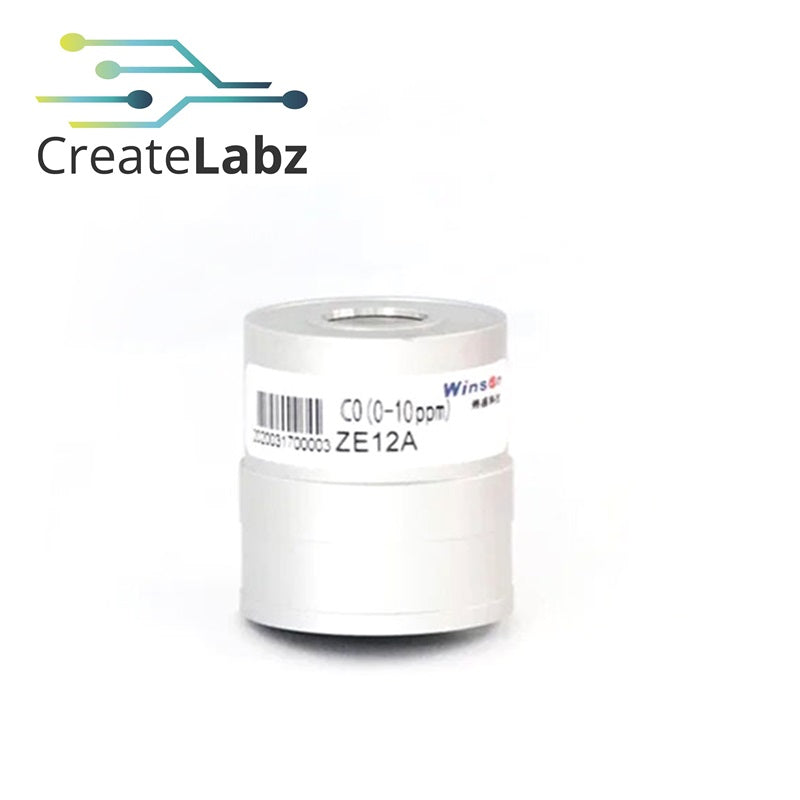

1x ZE12A Electrochemical Carbon Monoxide
Note: Product Images are shown for illustrative purposes only and may differ from the actual products
