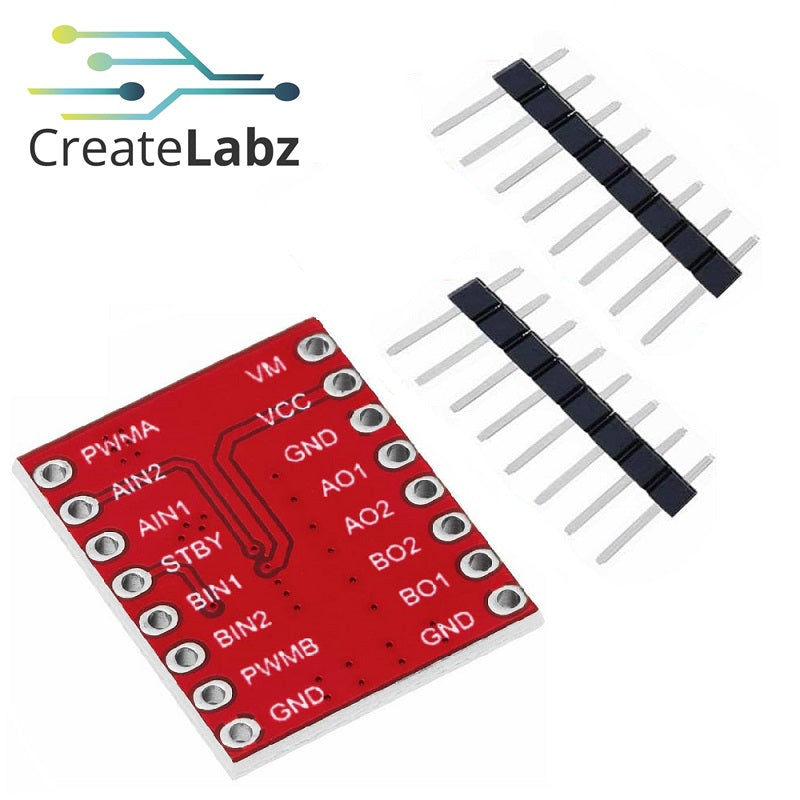

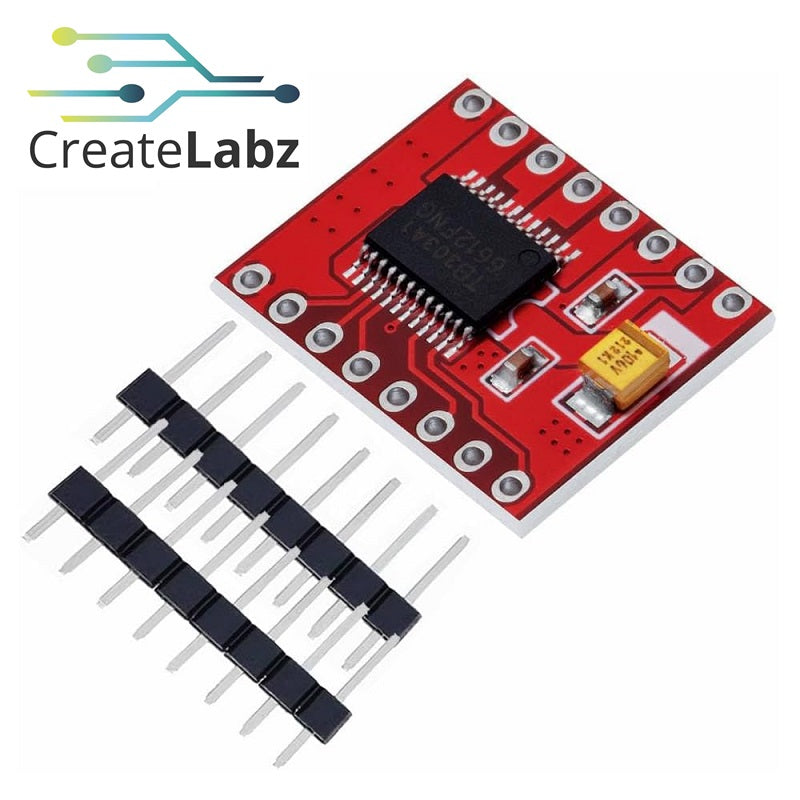

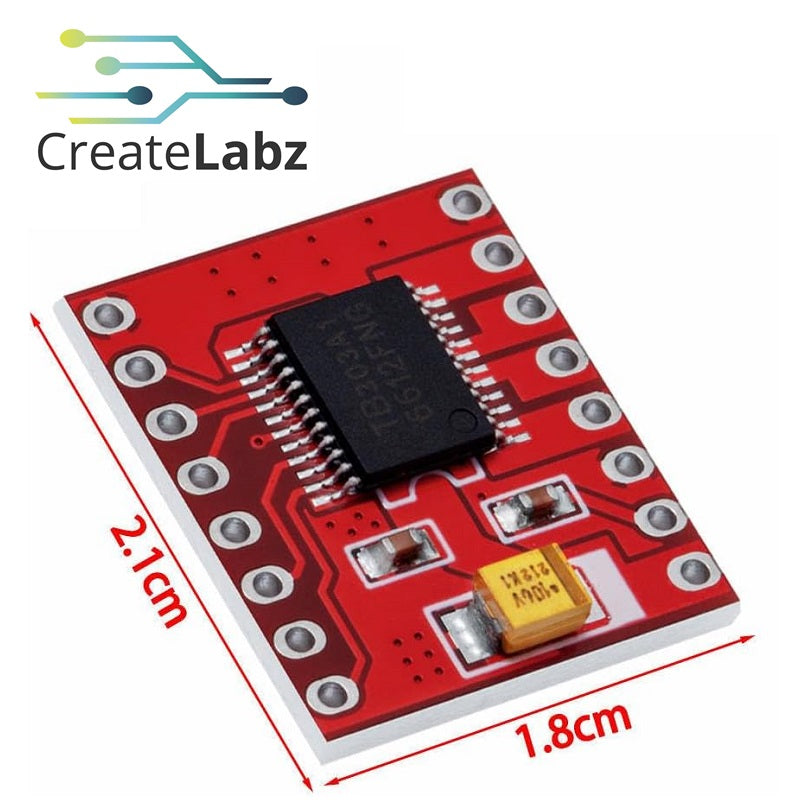

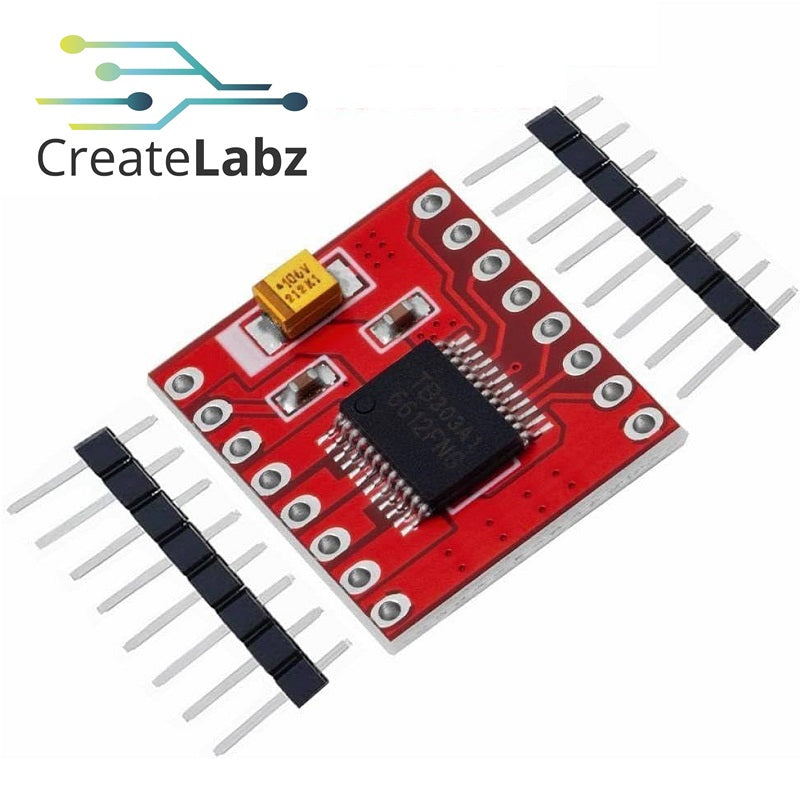

TB6612FNG Stepper Motor Driver Module

CreateLabz StoreSKU: 30-027

Price:
₱175

Shipping calculated at checkout

Stock:
In stock (10 units), ready to be shipped

Description

The TB6612FNG Stepper Motor Driver Module is a compact, high-efficiency dual-channel motor driver designed for use in robotics, automation, and microcontroller-based projects. It can drive two DC motors independently or one bipolar stepper motor, making it a versatile and reliable solution for motion-control applications. Equipped with a high-performance TB6612FNG chip, this module offers low power consumption, stable output, and high-current handling capability. It provides precise motor control through PWM signals and includes built-in protection features to ensure long-term durability and safety.

Features

  • Dual-channel motor driver (A & B inputs)
  • Drives two DC motors or one bipolar stepper motor
  • Up to 1.2A continuous and 3.2A peak current per channel
  • PWM control for accurate speed and direction adjustment
  • Low standby current for power-efficient applications
  • Built-in thermal shutdown and low-voltage detection
  • Compact and lightweight design ideal for small electronics projects
  • Compatible with Arduino, Raspberry Pi, ESP32, and other microcontrollers

Specifications

  • Driver IC: TB6612FNG
  • Motor Channels: 2
  • Operating Voltage: 2.5V – 13.5V
  • Logic Voltage: 2.7V – 5.5V
  • Continuous Output Current: 1.2A per channel
  • Peak Output Current: 3.2A per channel
  • Control Interface: PWM, IN1/IN2
  • Standby Function: Yes
  • Built-in Protections: Thermal shutdown, low voltage

Applications

  • Robotics and mobile robots
  • DIY motorized projects
  • CNC mini-machines
  • RC vehicles
  • Smart cars and line-following robots
  • Automation systems
  • Arduino and Raspberry Pi projects requiring precise motor control

Package list:
1x TB6612FNG Stepper Motor Driver Module

Note: Product Images are shown for illustrative purposes only and may differ from the actual products.
