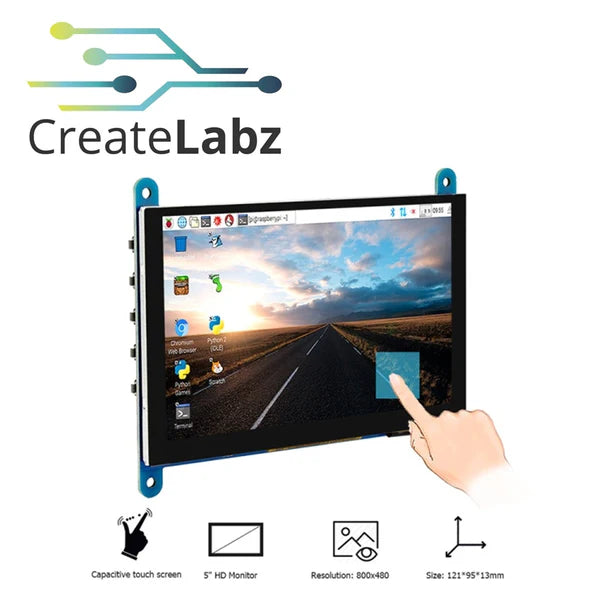

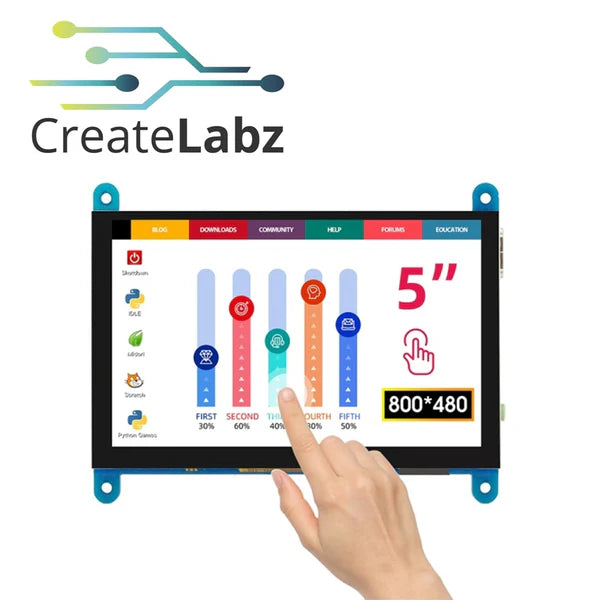

Description
The resolution of the LCD display is 800 x 480, you can configure the resolution via software, and the maximum resolution it supports is 1920 x 1080. It is a USB capacitive touch screen and does not require a driver. It supports five touch controls, besides that, the LCD screen comes with an OSD menu adjustment function. You can adjust the contrast, brightness, and switch buttons. There are 9 interfaces on the back of the screen, one earphone for audio output; two touch interfaces (USB connector) for power supply and touch output; and one display, an HDMI-compatible interface, for connecting the motherboard and LCD display. One power, it can control the backlight to turn on and turn off to save power. One return button is only useful in the OSD menu. One right/down, backlight shortcut key. One left/up, backlight shortcut key. A menu is useful in the OSD setting menu, open the OSD/ select key.
Feature:
- USB capacitive touch control.
- Support HDMI-compatible audio output.
- CE, ROHS certification.
- Free drive.
- Ultra-low power consumption backlight.
- Compatible with Raspberry Pi 5.
Specifications:
- Model: RC050
- Size: 5 inch
- Resolution: 800 x 480
- Touch: 5 points capacitive touch
- Refresh rate: 60HZ
- Dimension: 121 x 95 x 13 mm
- Screen Size: 108 x 66 mm

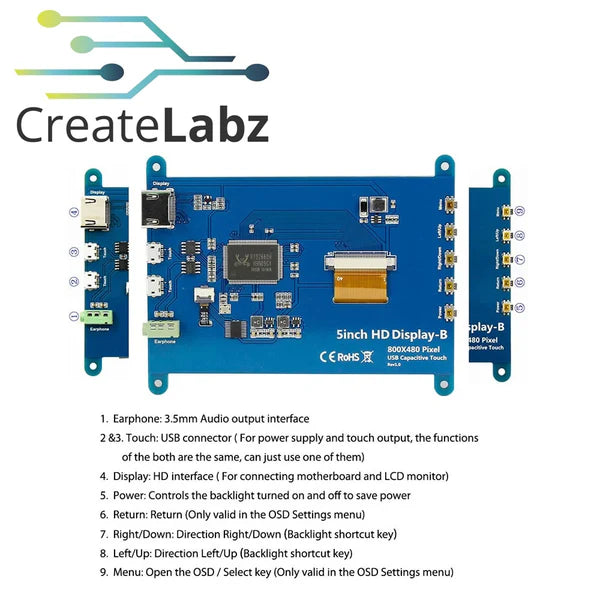

- Hardware Description
- Earphone: 3.5mm audio outputinterface
- Touch: USB connector for power supply & touch output
- HD interface: For signal transmission
- Power: Controls the backlight to save power
- Return: Return (Only valid in the OSD menu)
- Up/Down: Direction & Backlight shortcut
- Menu: Open the OSD/Select (Only valid in the OSD Settings menu)
Wide Applications:

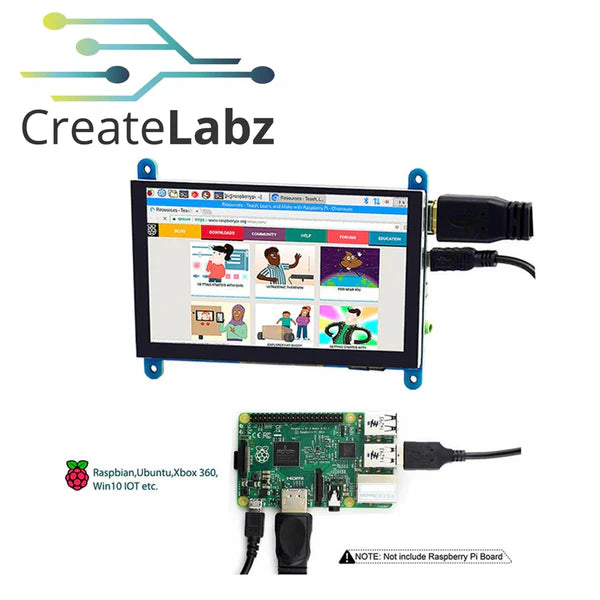

- When works with Raspberry Pi, supports Raspbian, Ubuntu, Kodi, Win10 IOT (need to be configured first), single touch, free driver.
- When work as a computer monitor, supports Windows 10/8/7, plug & play, 5 point touch, free driver.
- Supports popular game consoles, compatible with XBOX, PS, Switch etc, plug & play, no touch.
- When intended for Raspberry Pi 4, please connect to HDMI-0 port.
- When intended for Raspberry Pi 4, for the system after 2021-10-30, for example on Bullseye, please modify "dtoverlay = vc4-kms-v3d" to "dtoverlay = vc4-fkms-v3d" in the config file, otherwise it may fail to start. But on Buster, please comment out "dtoverlay = vc4-fkms-V3D" by adding #.

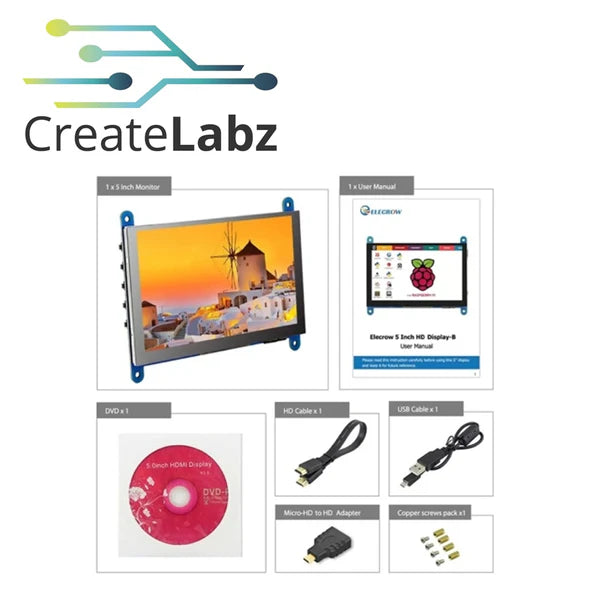

Package list:
- 5 inch HD Display x 1
- HDMI-compatible cable x 1
- Micro USB cable x 1
- DVD x 1
- Micro-HDMI-compatible to HDMI-compatible Adapter x 1
- Copper screw bag x 1
Note: Product Images are shown for illustrative purposes only and may differ from the actual products.
