Description

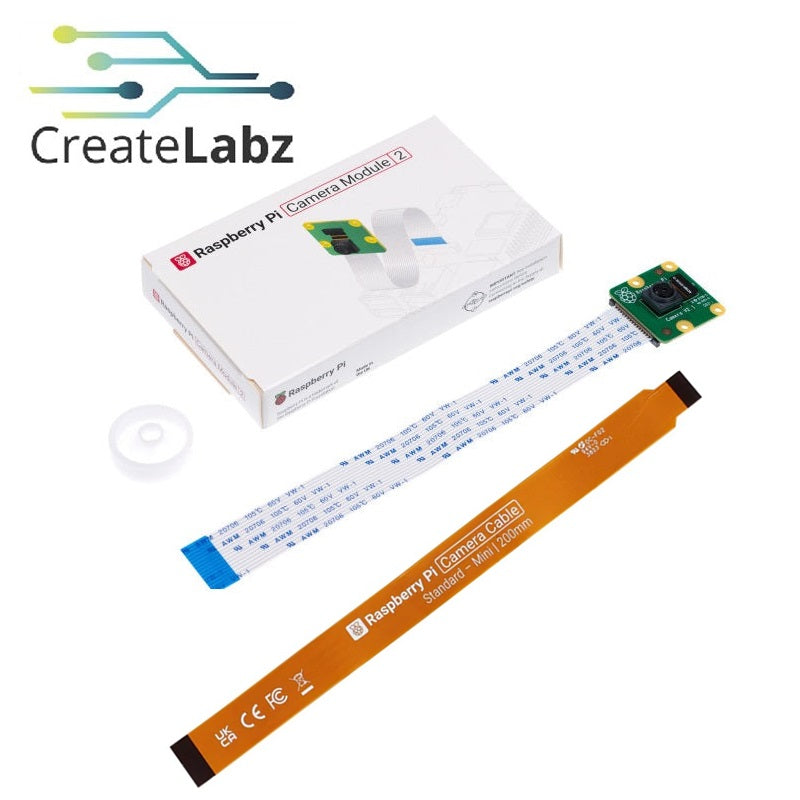

Raspberry Pi Bulk Camera Module
The Raspberry Pi Bulk board camera module is single channel, 8 megapixels and supports CSI-2 bus interface. It has a maximum frame rate capture of 30fps. This high-definition (HD) camera board connects to any Raspberry Pi or compute module, allowing you to create HD videos and still photographs. It utilizes the IMX219PQ image sensor from Sony, which offers high-speed video imaging and high sensitivity. It also offers reduced image contamination such as fixed pattern noise and smearing. To connect the camera module to pi, a 15cm ribbon cable is attached to the module slots straight into your Pi Camera Serial Interface port (CSI). Once connected, we can access the camera board via the Multi-Media Abstraction Layer (MMAL) or the Video for Linux (V4L) APIs.
Specification:
- Type: Camera Module
- Number of Channels: 1channel
- Supported Bus Interfaces: CSI-2
- Maximum Supported Resolution: 3280 x 2464 pixels
- Maximum Frame Rate Capture: 30fps

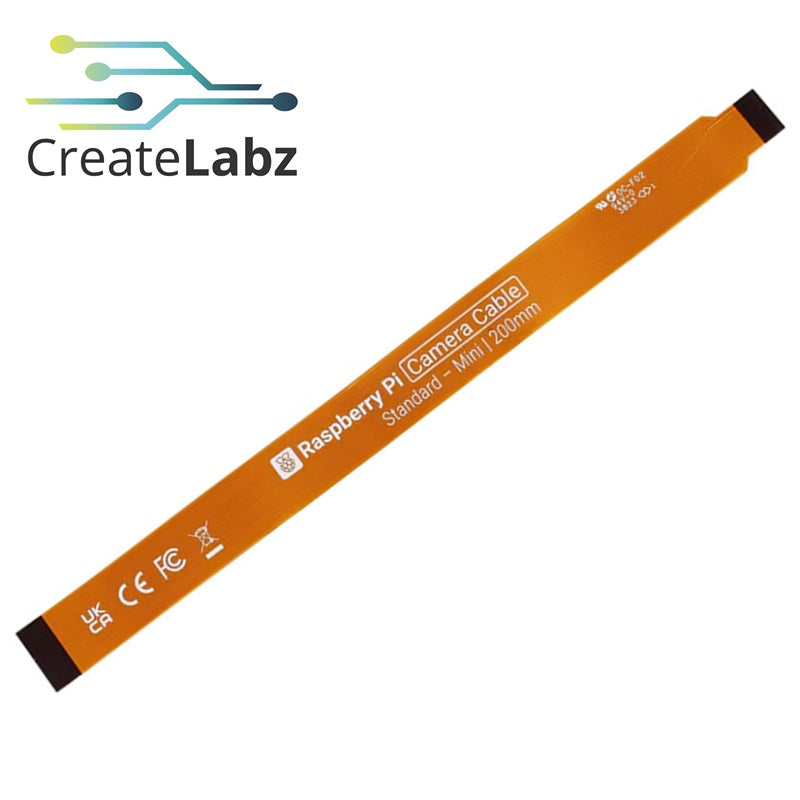

- 15-pin ribbon cable
- Automatic 50/60Hz luminance detection
- Automatic black level calibration
- Automatic exposure control, white balance and band filter
- High data capability
- High-quality imagery
- Dimension: 23.86 x 25 x 9mm
- Height: 9mm
- Length: 23.86mm
- Width: 25mm
- Maximum Operating Temperature: 60 °C
- Minimum Operation Temperature: -20 °C
- Supports 1080p, 720p60 and VGA90
Application:
Home security
Ideal for capturing HD videos and still photographs
Wildlife watching
Package includes:
1 x Raspberry Pi Camera Module
Note: Product Images are shown for illustrative purposes only and may differ from the actual products.
