Description

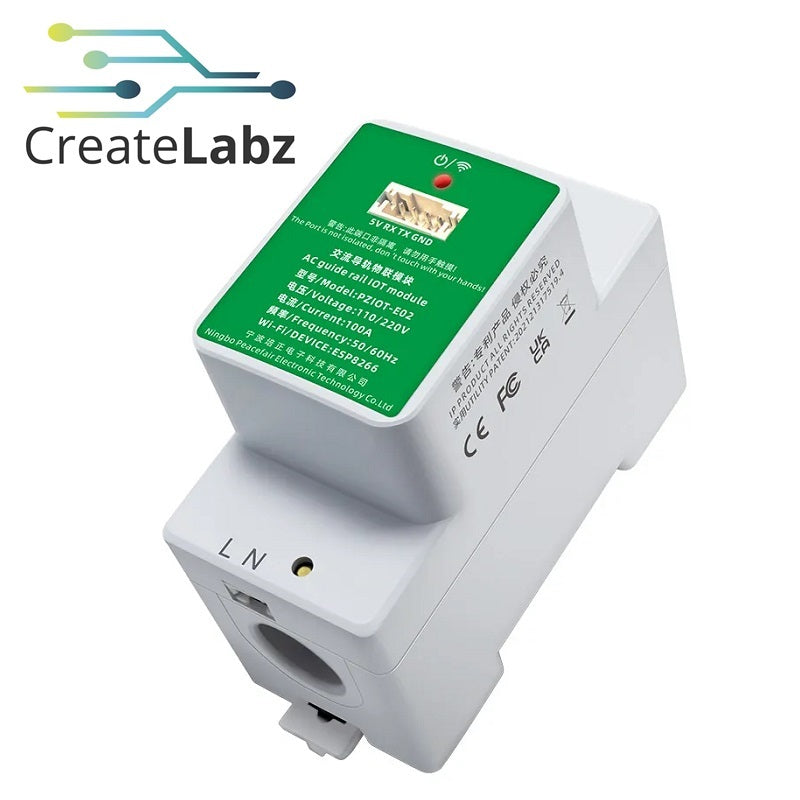

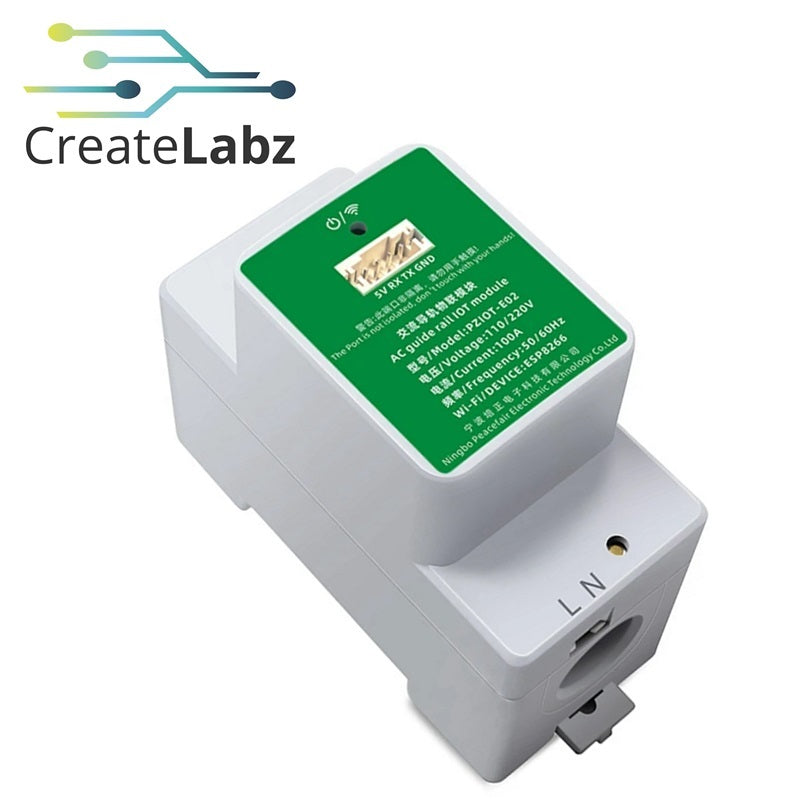

1. This energy meter is a WIFI hardware module with metering function.
2. High quality ABS material flame-retardant shell, not easy to deformation, durable.
3. High stability, high reliability, low power consumption, easy to install.
4. Mainly hardware connection, intelligent Internet of Things platform, convenient for customers to develop system apps.
5. Open source firmware, such as Tasmota and ESPHome, can be connected to HomeAssistant platform.
Physical layer protocol:
Physical layer use UART to TTL communication interface, Baud rate is 9600, 8 data bits, 1 stop bit, no parity.
Application layer protocol:
The application layer use the Modbus-RTU protocol to communicate. At present, it only supports function codes such as 0x03 (Read Holding Register), 0x04 (Read Input Register), 0x06 (Write Single Register), 0x41 (Calibration), 0x42 (Reset energy).etc.
0x41 function code is only for internal use (address can be only 0xF8), used for factory calibration and return to factory maintenance occasions, after the function code to increase 16-bit password, the default password is 0x3721
The address range of the slave is 0x01 - 0xF7. The address 0x00 is used as the broadcast address, the slave does not need to reply the master. The address 0xF8 is used as the general address, this address can be only used in single-slave environment and can be used for calibration etc.operation. Specifications:
- Model Number: PZIOT-E02
- Brand Name:Peacefair
- Phase: Single Phase
- Output Voltage: 110V/220V
- Accuracy Class: Class1
- Measuring Energy Range: 0-999KWh
- Operating Temperature: -20 ~+60
- Display Type: Digital Only
- Place of Origin: Zhejiang, China
- Dimensions: 78*34*65mm
- Communication: WIFI
- Product name: Single Phase Electronic KWh Meter
- Type: Energy Digital Kwh Meter
- Display: Digital LCD Display
- Frequency: 50HZ/60HZ
- Certificate: CE FCC
- Rated current: 100A

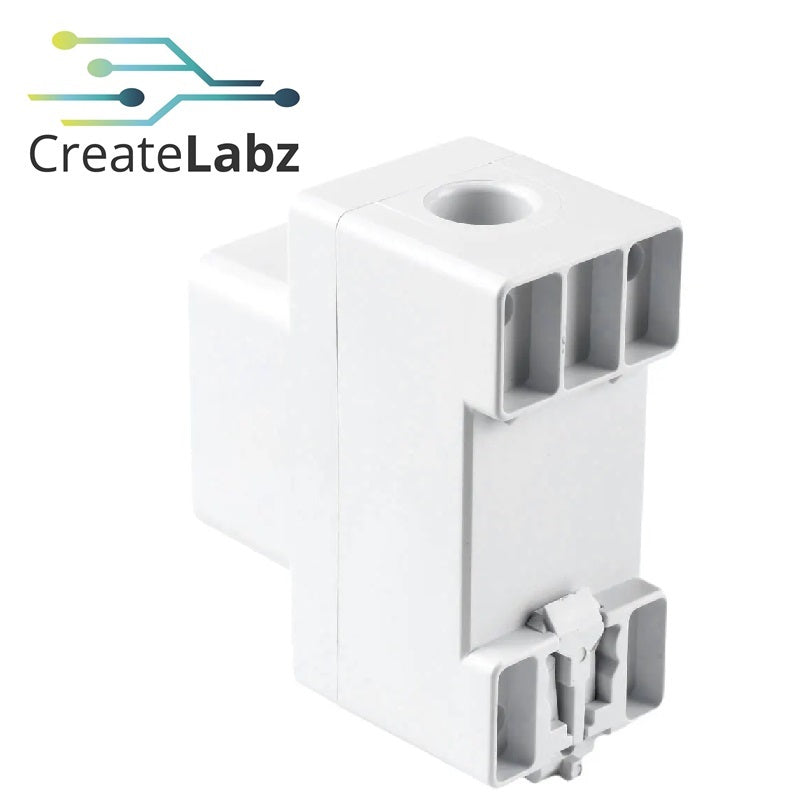

- Installation: DIN Rail Installation
- Rated voltage: 110V 220V 230V
- Name: Wireless Energy Monitor
Package Includes:

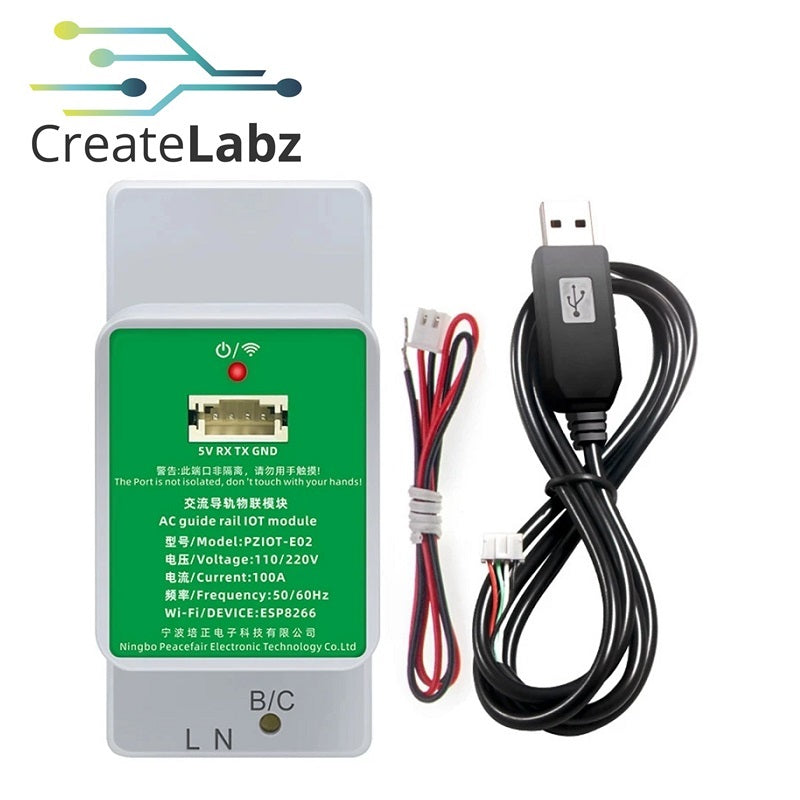

1x Peacefair PZIOT-E02 AC DIN Rail IOT Module
Note: Product Images are shown for illustrative purposes only and may differ from the actual products
