Description
The peacefair PZIOT-E01 is a single-phase AC Guide Rail Module designed for comprehensive electrical parameter monitoring. It measures AC voltage, current, active power, power factor, frequency, and energy consumption. Equipped with a Wi-Fi module, it allows for wireless data transmission and remote monitoring via a dedicated mobile application, providing users with real-time insights into their electrical usage.
Specifications:
- Model Number: PZIOT-E01
- Type: DIN Rail Mounting Energy Meter / Single Phase Electronic KWh Meter
- DIY Supplies: Electrical
- Power Supply: AC
- Rated Voltage: 220V
- Voltage Range: AC 70-260V (Starting test voltage: 70V)
- Current Range: 0-100A (Starting test current: 0.05A)
- Max Operating Current: 80A - 99A
- Power Range: 0-22kW (Starting test power: 1.0W)
- Measuring Energy Range: 0-999999kWh
- Frequency: 45-65Hz
- Power Factor: 0-1PF
- Accuracy Class: 1.0 grade (Accuracy: ±1% for all measurements)
- Phase: Single phase
- Display Type: Analog Only (Note: Digital readings are available via mobile app)
- Operating Temperature: -10-60°C
- Dimensions: 78*34mm
- Installation: 35mm DIN Rail
- Communication Module: CBU-BK7231N (WiFi/BLE)
- Communication Standard: 802.11b/g/n
- Communication Frequency: 2.4GHz
- Bluetooth Communication: BLE connect / 6dB transmit power
- Battery Included: No
- High-concerned chemical: None
- Certification: CE, FCC
Safety Information:
- This product is suitable for indoor use only.
- This product is designed for AC (Alternating Current) systems.
- The measurement voltage and current must not exceed the specified calibration range to prevent damage to the device and ensure accurate readings.
- Ensure all wiring is correct and secure before applying power. Incorrect wiring can lead to device malfunction or electrical hazards.
- Installation should be performed by qualified personnel in accordance with local electrical codes and regulations.
- Do not attempt to disassemble or modify the device.
Package Includes:

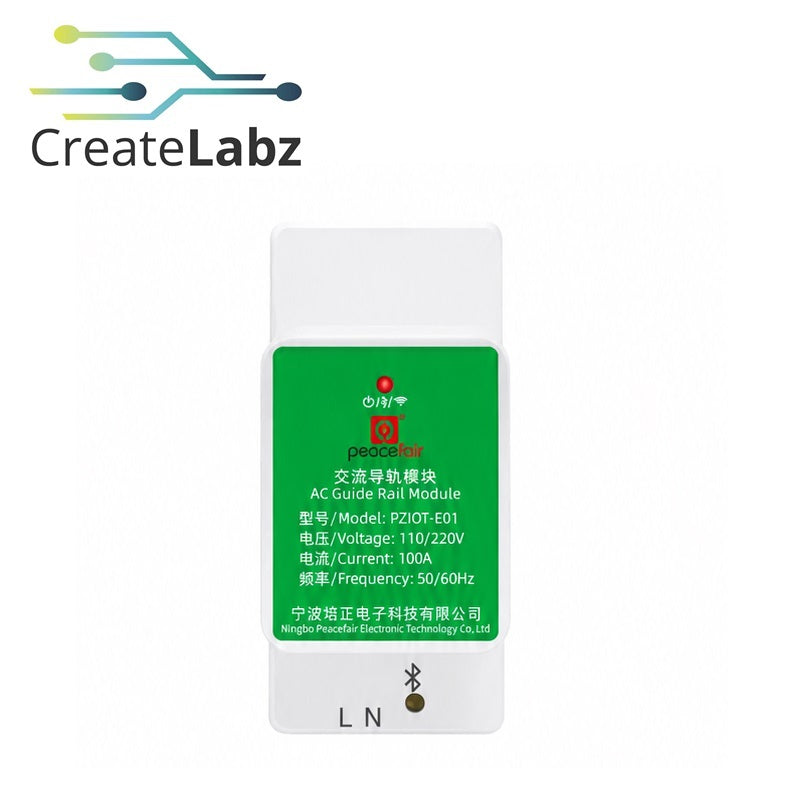

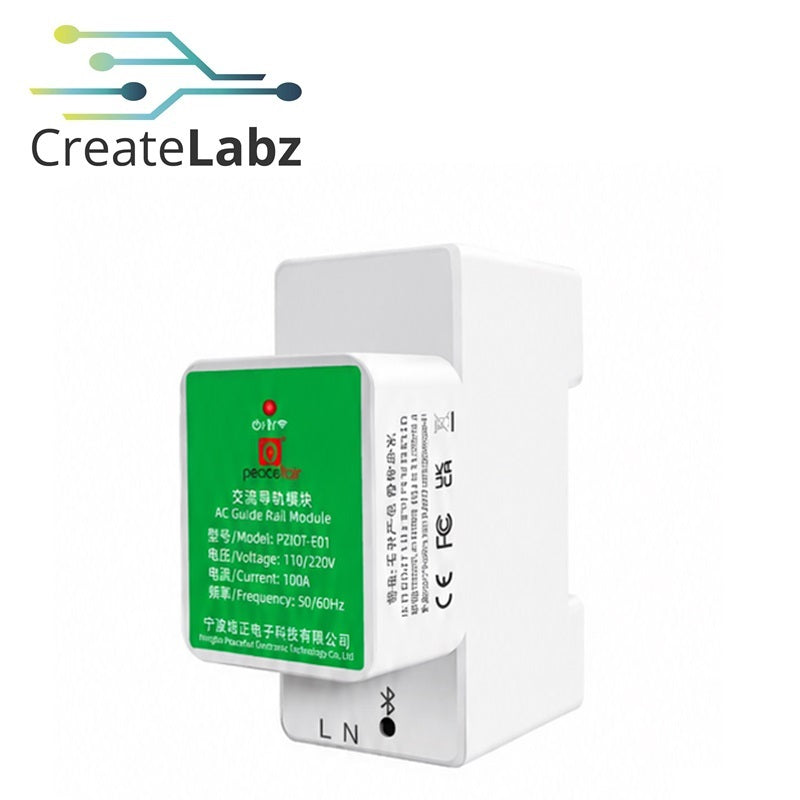

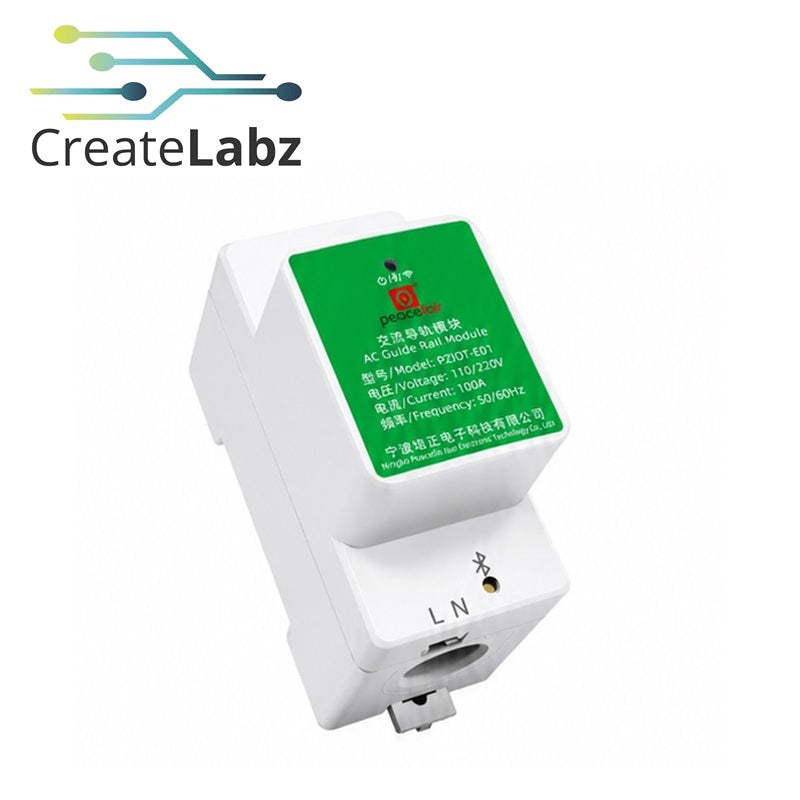

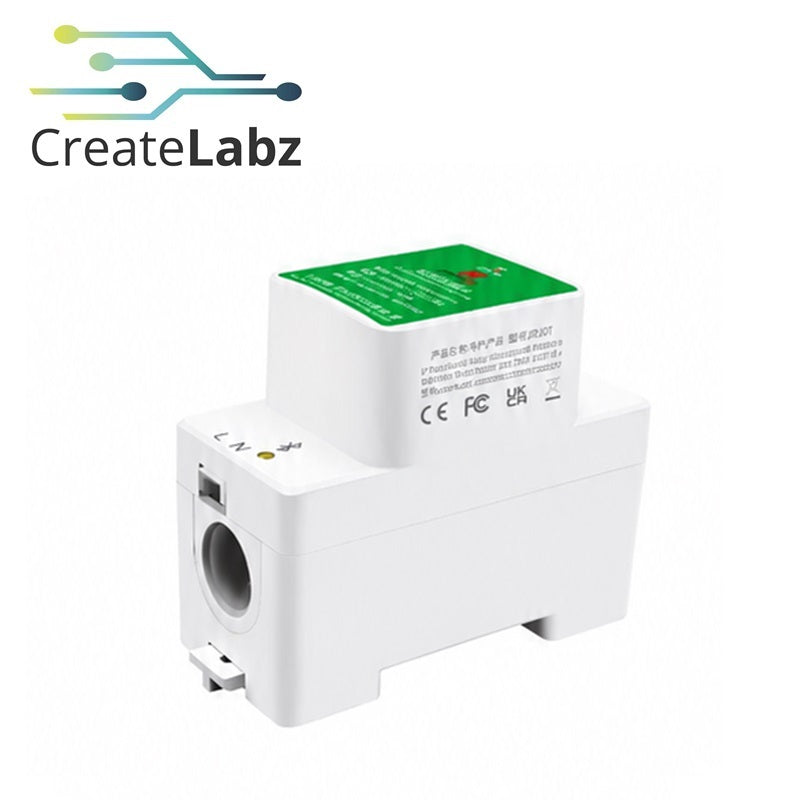

1x Peacefair PZIOT-E01 AC DIN Rail Module with Wifi
Note: Product Images are shown for illustrative purposes only and may differ from the actual products
