Description
Features:
- Wide Measurement Range: Measures AC voltage (80-260V), current (0-100A), power (0-22kW) accurately.
- Accurate Readings: ±1% accuracy ensures precise energy, voltage and current measurements.
- Functions: Backlight control can be achieved with a short press of the button.

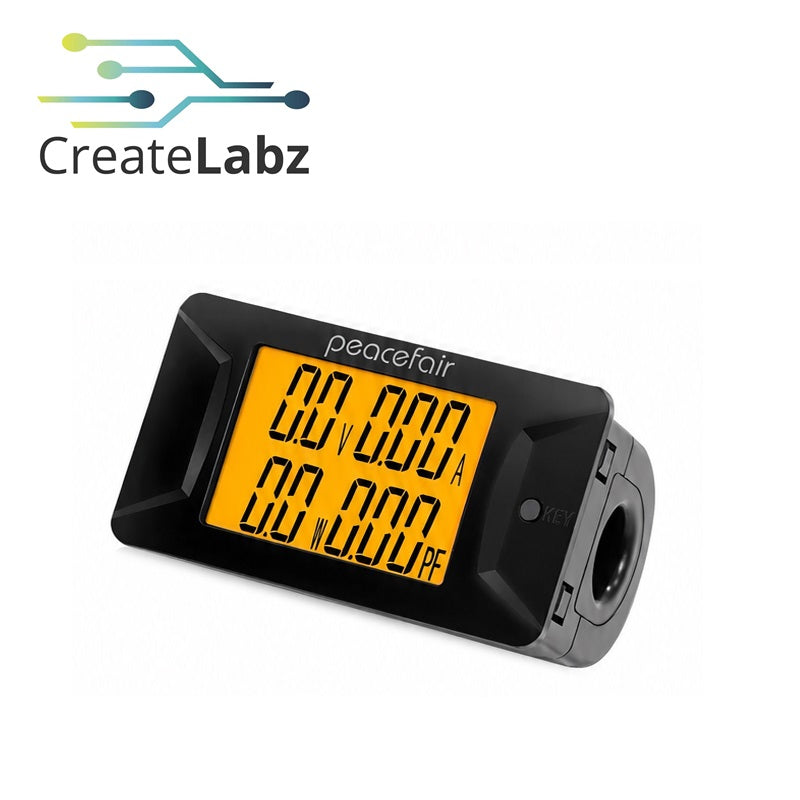

- User-Friendly Interface: STN Full-View LCD screen with orange backlight for clear readability.
- Reliable Performance: Operates within a wide temperature range (-10°C to 60°C).
- Verified Manufacturer supplier, Factory Direct price: Stability Stock, Fast shipping, Professional technology support after sales.

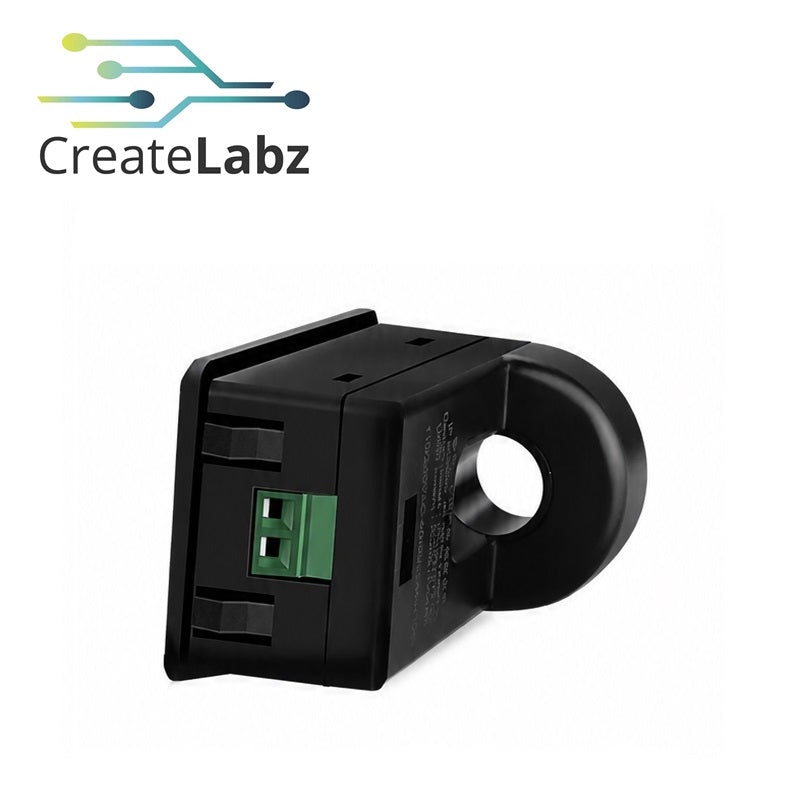

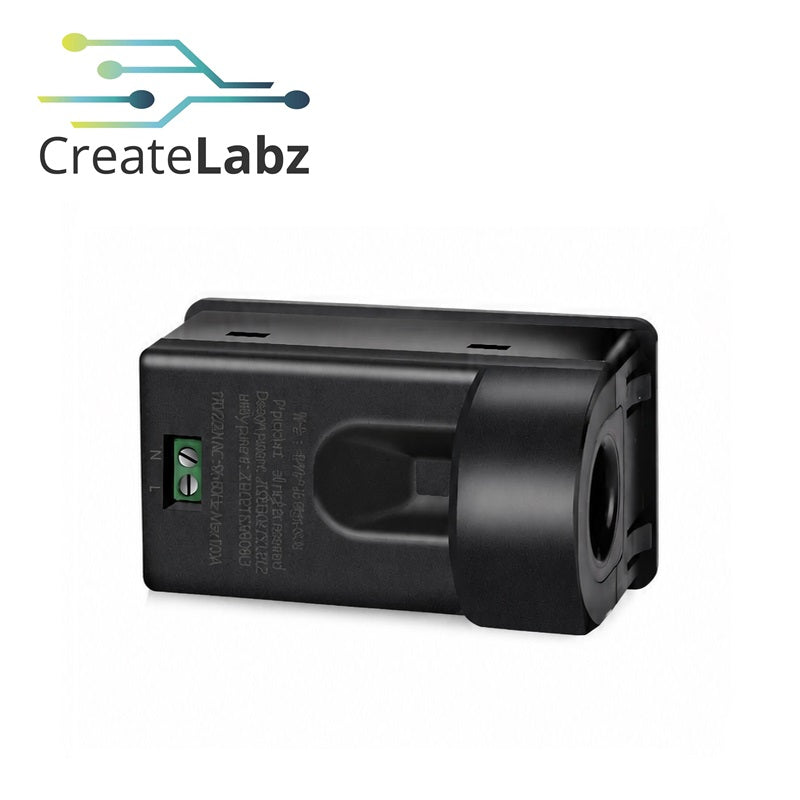

- Easy to install and use: two plug wires make the wiring simple.
- OEM, ODM customizable: customized logo, label, packaging, color, size, graphics and material.
Specification:
- Brand Name: Peacefair
- Model Number: PZEM-028
- Phase: Single Phase
- Display Type: Digital Only
- Accuracy Class: 1.0
- Measure Parameters: Voltage, Current, Power Factor, power
- Application: Industrial, Electric Power, Households, Testing Power, AC
- Measuring Current Range: 0-100A
- Measuring Voltage Range: 80-260V
- Dimensions: 72.3*40mm
- Operating Temperature: -10-60degree
- backlight color: orange
- Current: 100A
- Type: Volmeter
- Display: LCD
- Frequency: 45-65Hz
- Weight: 97g
- Power factor: 0~1PF
- Starting current (A): 0.02A
- Color: Black
Voltage:
- Measurement range: 80～260V
- Display format:＜100V display such as：80.0V
- ≥100V display such as：220V
- Accuracy: ±1%
Current:
- Measurement range: 0～100A
- Display format: ＜10A display such as：1.00A
- ＜100A display such as：10.0A
- ≥100A display such as：100A
- Starting measurement:0.02A
- Accuracy: ±1%
Power:
- Measurement range: 0～22kW
- Display format:＜10W display such as：5.0W
- ＜100W display such as：50.0W
- ＜1000W display such as：500W
- ＜10000W display such as：5.00kW
- ≥100V display such as：22.0kW
- Starting measurement:2.2W
- Accuracy: ±1%
Power factor:
- Measurement range: 0～1
- Display format: such as：1.00PF
Package Includes:
1x Peacefair PZEM-028 AC Digital Meter
Note: Product Images are shown for illustrative purposes only and may differ from the actual products
