Grove - Digital Infrared Temperature Sensor

CreateLabz StoreSKU: 20-052

Price:
₱1,550

Shipping calculated at checkout

Stock:
Only 1 unit left

Description

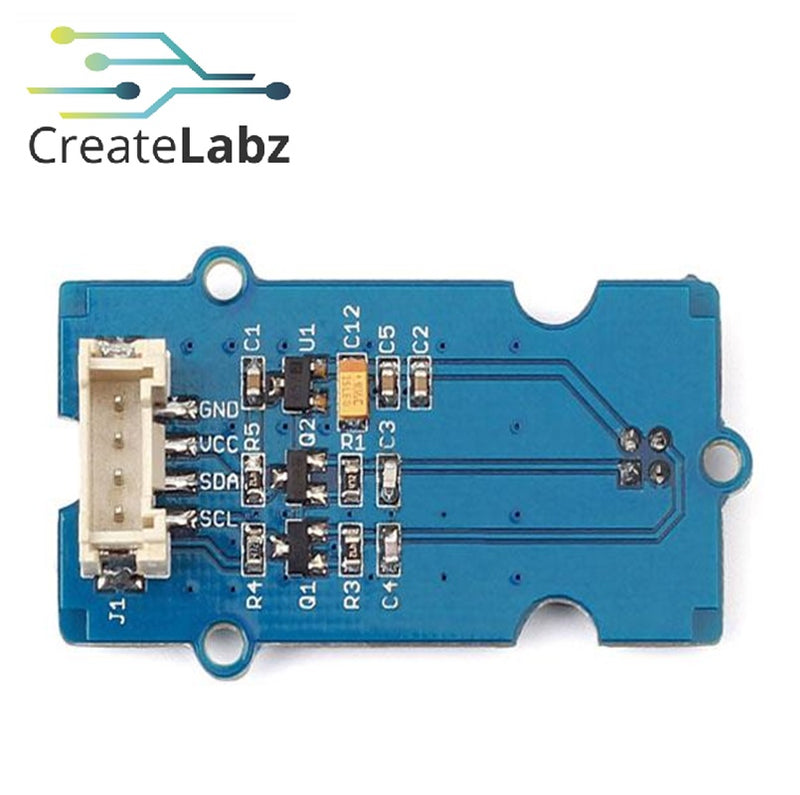

The Digital Infrared temperature sensor is a non-contact temperature measurement module which bases on MLX90615. Both the IR-sensitive thermopile detector chip and the signal conditioning chip are integrated into the same package. This module communicates with Arduino using SMBus, up to 127 sensors can be read via common 2 wires. Thanks to the module's low noise amplifier, 16-bit ADC, and powerful DSP unit, it can achieve high accuracy of 1℃ over a wide temperature range and a high measurement resolution of 0.02℃.

Features

  • Disposition: MLX90615
  • Supply voltage: from 3.3 V to 5 V
  • Current: DP 1.5 mA
  • Communication: I2C (SMBus, TWI)
  • 4-pin Grove interface
  • Module dimensions: 40 x 20 mm
  • Weight: 8 g
  • Wide Temperature Detecting Range
    • 40 to 85°C for sensor temperature
    • 40 to 115°C for object temperature
  • High accuracy of 1°C over a wide temperature
  • The measurement resolution of 0.02°C
  • Embedded emissivity compensation
  • Power saving mode

Part List

1pc Grove - Digital Infrared Temperature Sensor
1set Grove Cable
