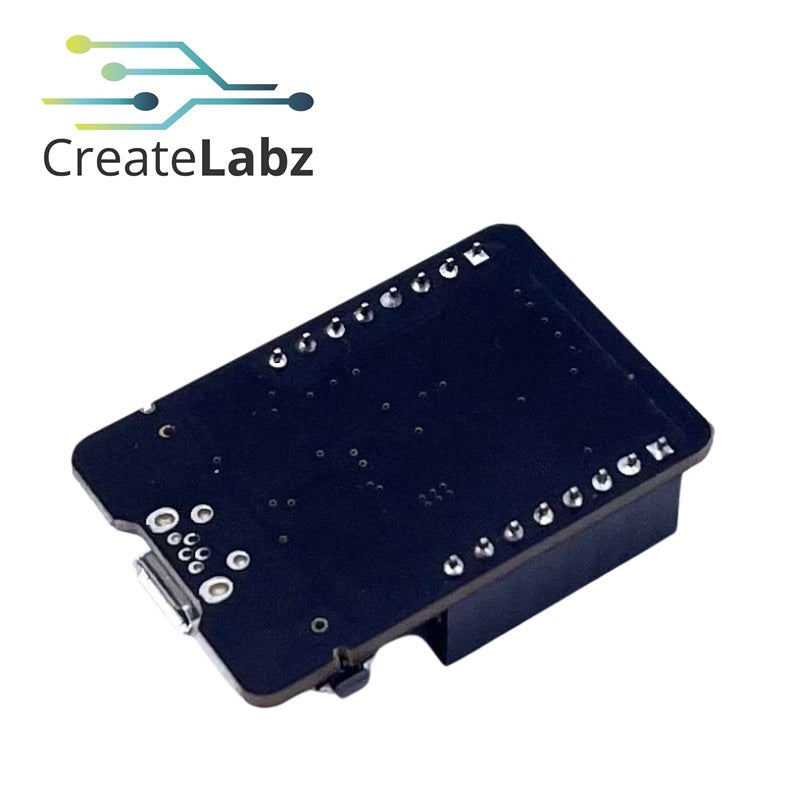

Description
The ESP32-CAM USB Programming Adapter is a compact electronic circuit specifically designed to connect the ESP32-CAM module to a computer. It acts as a bridge, allowing you to upload programs to the ESP32-CAM to control and configure the module as desired.
Specifications:
- Model: ESP32-CAM-MB
- Integrated 3.3VDC power supply regulator IC
- Power source: 5VDC from Micro USB port
- USB-UART interface IC: CH340
- Push buttons: RST and IO0
- Size: 27x40mm

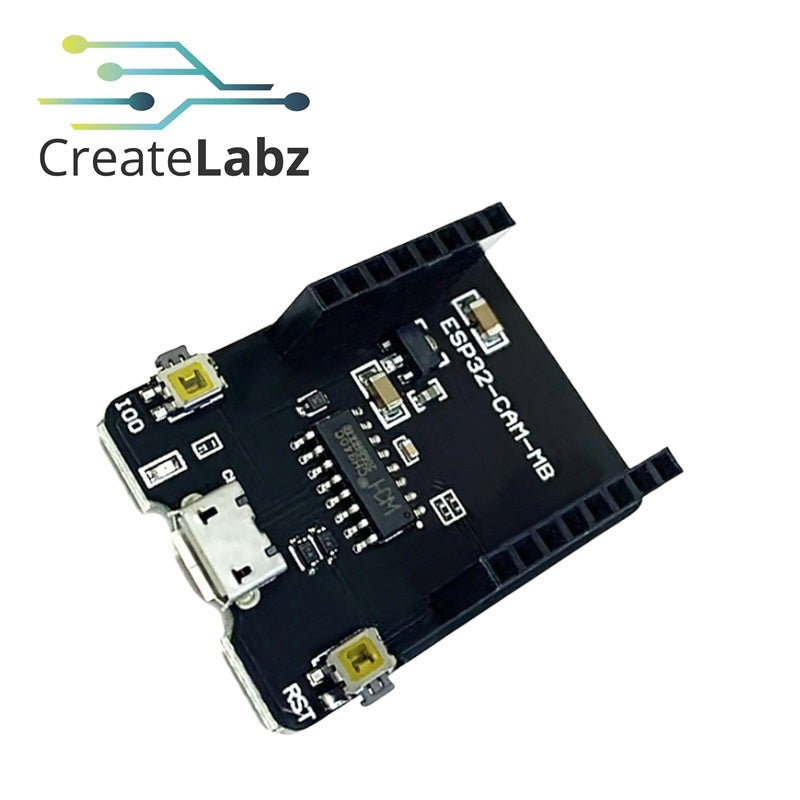

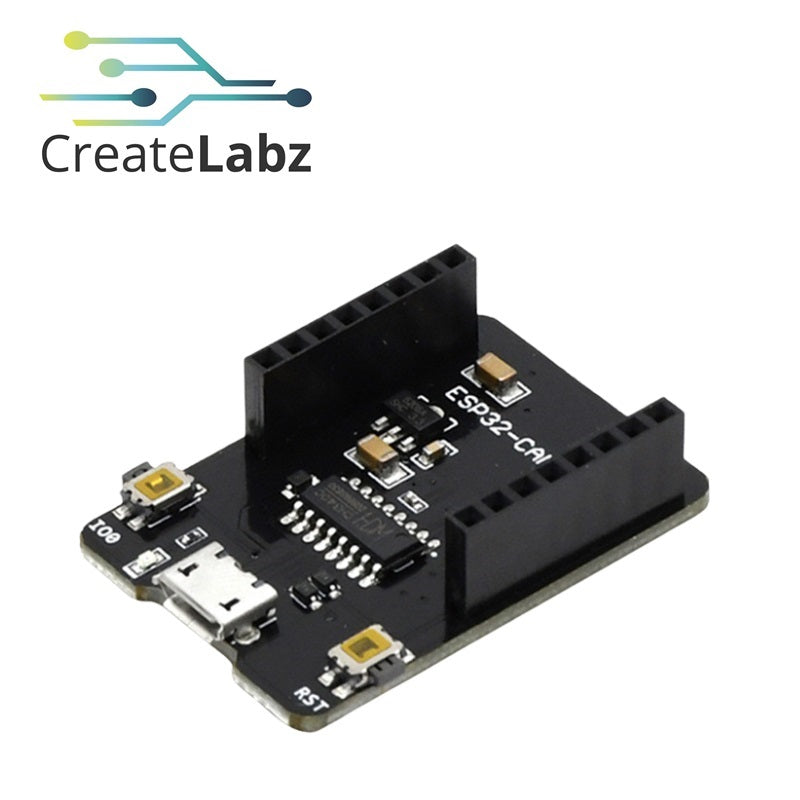

Structure and function:
- USB connection: The charging dock has a USB port for connecting to a computer.
- Connecting to ESP32-CAM: The programming base has pins that connect to the control pins of the ESP32-CAM: RST, IO0.
- USB-UART converter IC: The CH340 IC converts USB signals from a computer into UART signals that the ESP32-CAM can understand.
- The RST and IO0 buttons are used to put the ESP32-CAM into programming mode.
Instructions for using the ESP32-CAM programming base:
- Connect the programming base to the computer via the USB port and connect the ESP32-CAM to the programming base.
- Install the CH340 driver for the USB-UART converter IC on your computer here .
- Use a programming environment like the Arduino IDE to write programs for the ESP32-CAM.
- Program upload: Press and hold the IO0 button on the programmer base, then press the Upload button on the programming environment. The program will be uploaded to the ESP32-CAM.
Applications for the ESP32-CAM USB programmer:
- Controlling IoT devices: By combining them with other sensors, you can build IoT devices such as temperature sensors, humidity sensors, surveillance cameras, etc.
- Automation project: Using ESP32-CAM to control household devices such as lights, fans, curtains, etc.
- Learning and research: ESP32-CAM is an excellent platform for learning about embedded programming, IoT, and image processing.
Notes on usage:
- Ensure the ESP32-CAM receives a stable power supply.
- Install the correct driver for the USB-UART converter IC.
- Check the connections between the programming base, ESP32-CAM, and the computer.
- Choose the appropriate programming environment and configure the settings correctly.
Package Includes:
1x ESP32-CAM Adapter Board CH340, Micro
Note: Product Images are shown for illustrative purposes only and may differ from the actual products
