Description
BTS7960 H-bridge driver circuit, with a strong drive and braking, effectively isolating the microcontroller and motor driver. Voltage indication of motor driver output end, can solder heat sink. Can reverse the motor forward, with two PWM input frequency up to 25kHZ.
Specification:
- Supply voltage: 5.5V to 27V
- 5V power indicator on board
- Voltage indication of motor driver output end
- Can solder heat sink
- Just need four lines from MCU to driver module (GND. 5V. PWM1. PWM2)
- Isolation chip 5 V power supply (can share with MCU 5V), can also use the on-board 5V supply
- Two heat flow passing through an error signal output
- Size: 4 * 5 * 1.2 cm
Input port:
- 1.RPWM: forward level or PWM signal input, active high
- 2.LPWM: Reverse level or PWM signal input, active high
- 3.R_EN: forward drive enable input, high-level enable, low level off
- 4.L_EN: Reverse drive enable input, high-level enable, low level off
- 5.R_IS: forward drive current alarm output
- 6.L_IS: Reverse drive current alarm output
- 7.VCC: +5 V power output, 5V power supply connection with the microcontroller
- 8.GND: signal common low end
Package Includes:

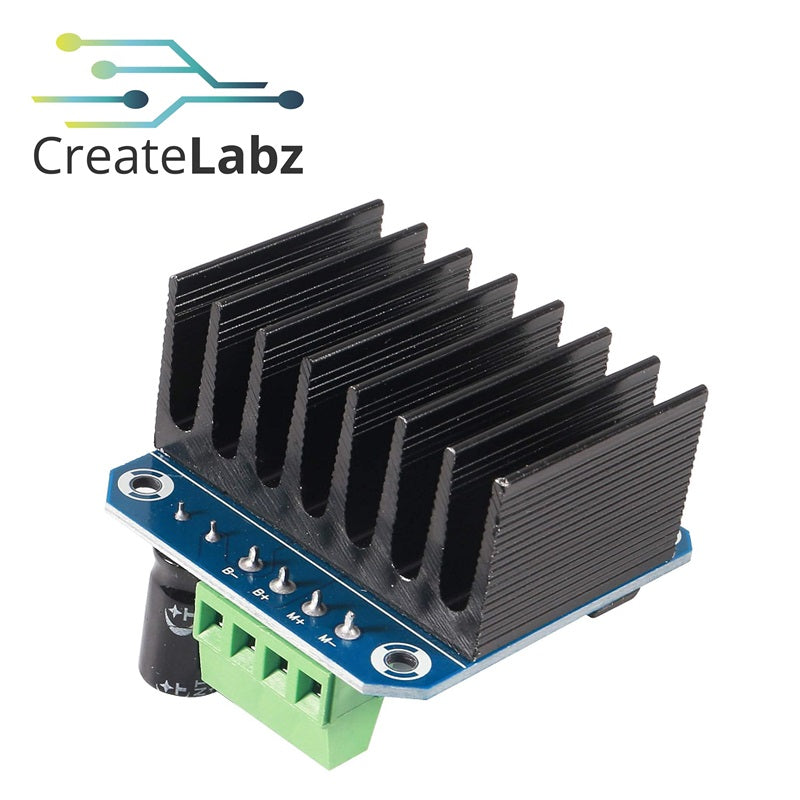

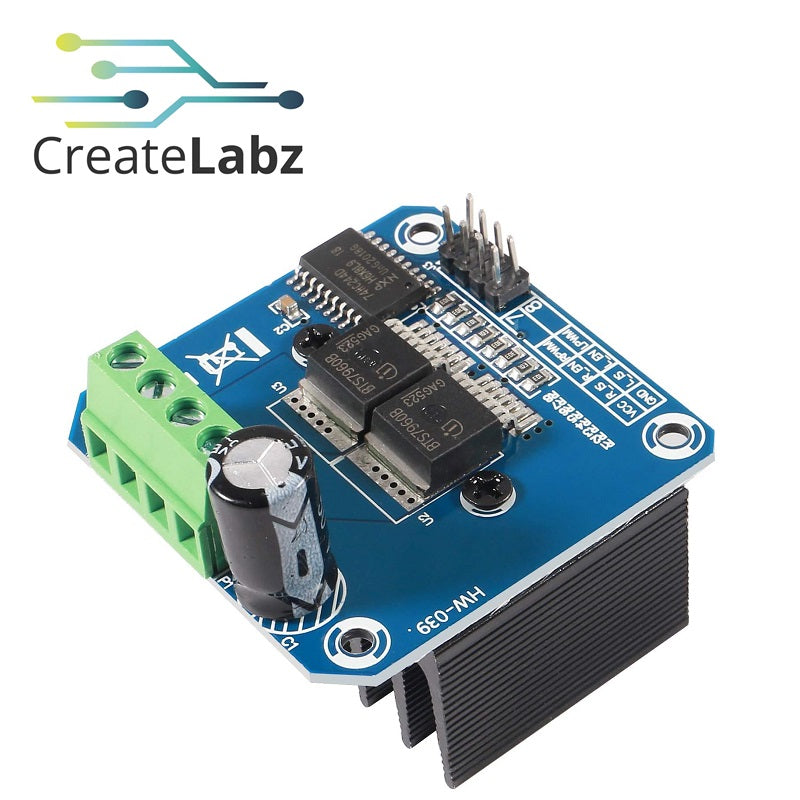

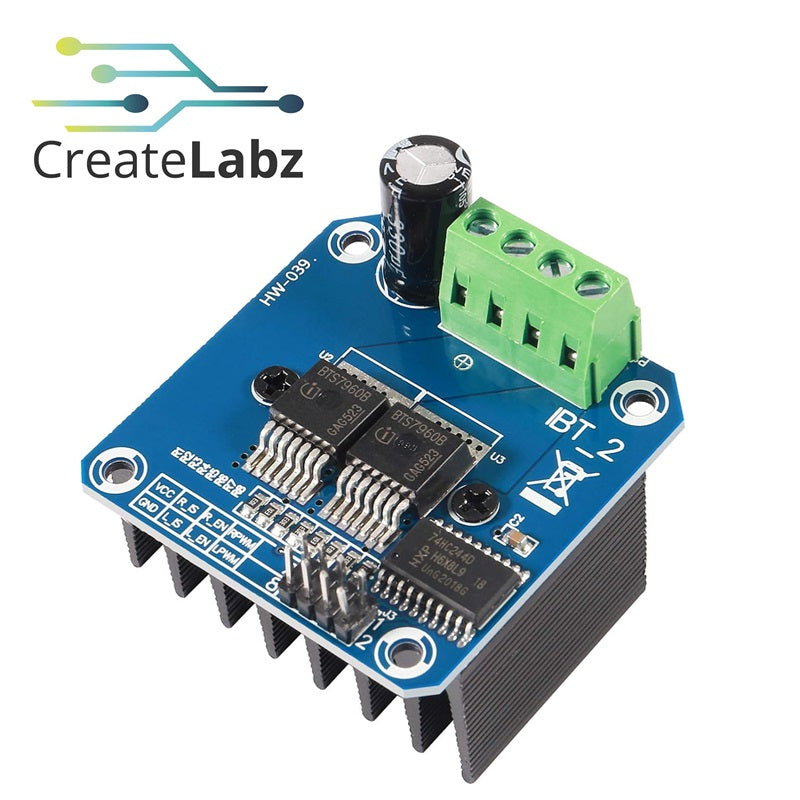

1x BTS7960 43A High-power Motor Driver Module
Note: Product Images are shown for illustrative purposes only and may differ from the actual products
