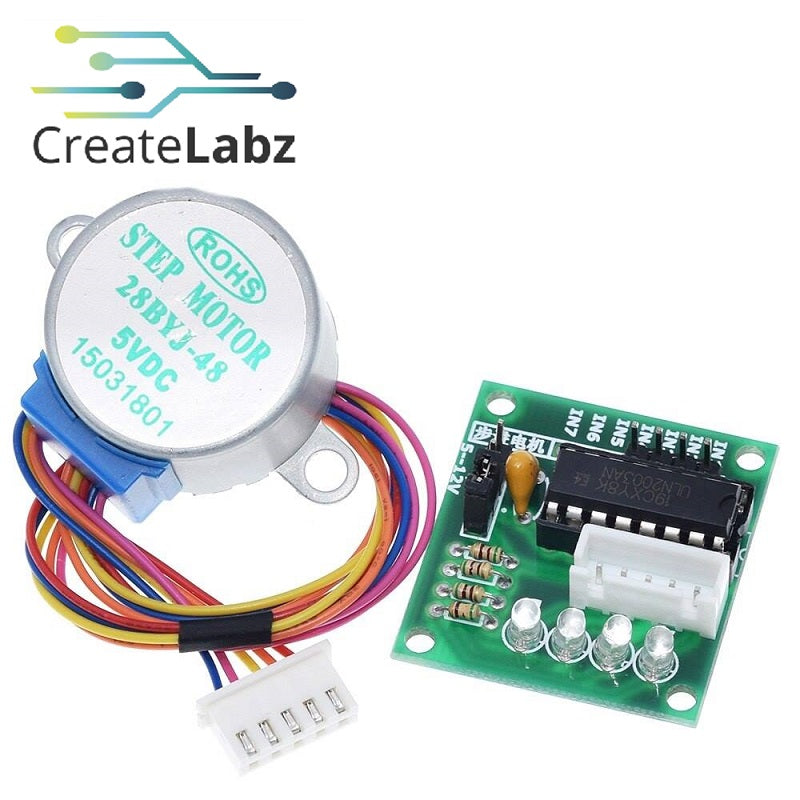

5v Stepper Motor Kit (28BYJ-48 Stepper motor + ULN2003 driver board

Save 53%
CreateLabz StoreSKU: 30-012

Price:
₱119 ₱255

Shipping calculated at checkout

Stock:
In stock (5 units), ready to be shipped

Description

The ULN2003 stepper motor driver board allows you to easily control the 28BYJ-48 stepper motor from a microcontroller, like the Arduino Uno. One side of the board side has a 5 wire socket where the cable from the stepper motor hooks up and 4 LEDs to indicate which coil is currently powered.

Features:

  • 100% Brand new and high quality
  • Made of high quality material, more durable.
  • Low noise, reliable use
  • DC 5V 4-phase stepper motor + for Arduino driver test module board
  • A, B, C, D four-phase LEDs indicate the working state of the stepper motor
  • Stepper motor with a standard interface for direct insertion
  • 5 Line 4 phase can be driven by ordinary uln2003 chip can also be connected in phase 2 development board.
  • Supporting the use of a direct plug and easy-to-use stepper motor in the development board.

Specifications:

  • Rated voltage: DC5V 4 phase
  • Step angle: 5.625 x 1/64
  • No load absorption frequency: >600Hz
  • No-load extraction frequency: >1000Hz
  • Pulling torque: >34.3mN.m (120Hz)
  • stop torque: >34.3MN.m
  • DC resistance: 200Ω±7% (25C)
  • Insulation resistance: >10MΩ (500V)
  • Dielectric strength: 600V AC / 1mA / 1s
  • Edge rating: A
  • Temperature rise: <40K (120Hz)
  • Noise: <40dB (120Hz, no load, 10cm)

Package Content:
1x 28BYJ-48 stepper motor
1x ULN2003 motor driver board

Note: Product Images are shown for illustrative purposes only and may differ from the actual products.
