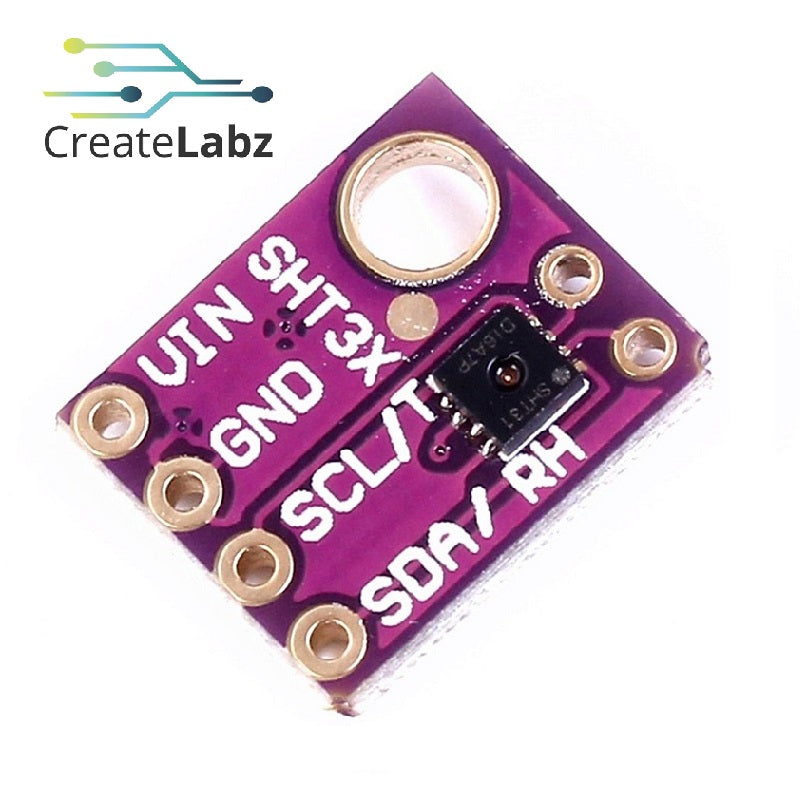

SHT30-D Temperature & Humidity Sensor Digital Output I2C

CreateLabz StoreSKU: 20-100


Shipping calculated at checkout

Sold out



The digital temperature and humidity sensor module uses the SHT30 chip, and the measurement data is factory corrected, linearized, and temperature compensated. Its functionality includes enhanced signal processing, two distinctive and user selectable I2C addresses and communication speeds of up to 1 MHz. Very fast start-up and measurement time with temperature and humidity alarm output and software and hardware reset function. Avoid use in volatile organic environments in order not to damage the device.


Optimal working temperature and humidity range: 5 ° C ~ 60 ° C 20% RH ~ 80% RH
Working voltage: 2.4 ~ 5.5V (recommended 3.3V)
Humidity measurement range: 0 to 10% RH
Humidity accuracy error: ±3% RH
Resolution: 0.01% RH
Repeatability: 0.10-0.25% RH
Response time: 8s
Long-term drift: <0.25% RH/year
Temperature measurement range: -40 ° C ~ 125 ° C
Temperature accuracy error: ±0.3 °C
Resolution: 0.015 ° C
Repeatability: 0.06-0.24 °C
Response time: >2s
Long-term drift: <0.03 ° C / year
