MG811 Carbon Dioxide CO2 Gas Sensor Analog Output 0-2V

Save 27%
CreateLabz StoreSKU: 20-099

₱1,595 ₱2,190

Shipping calculated at checkout

Sold out

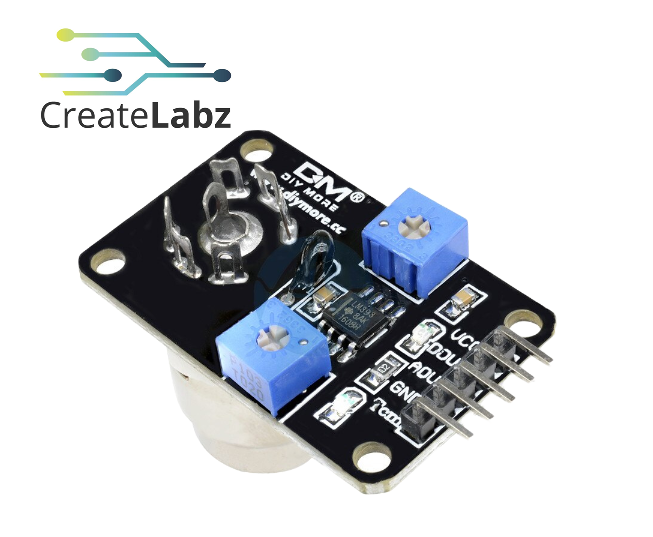

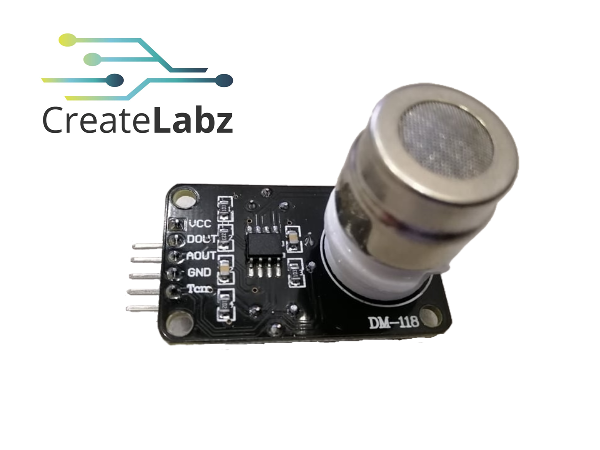

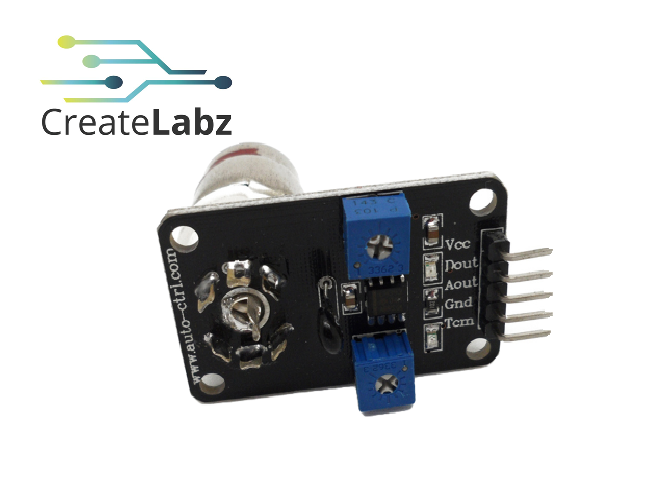

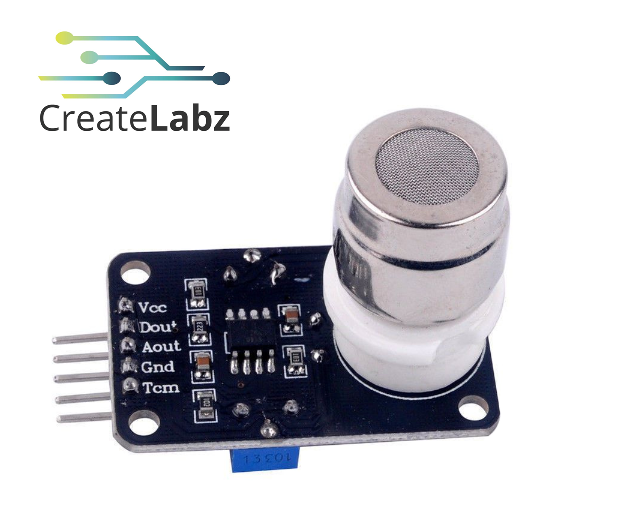

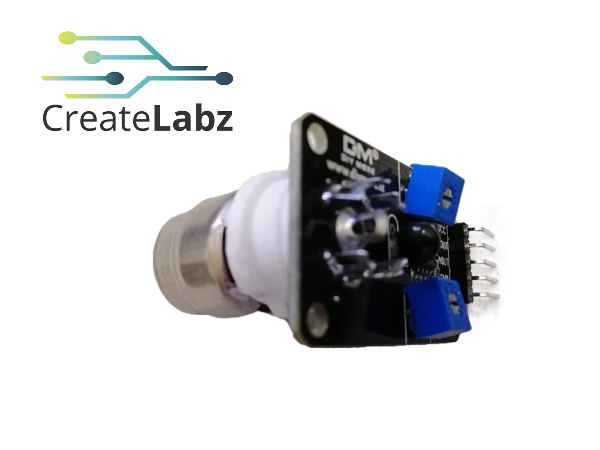

Carbon dioxide sensor module (with analog signal output, TTL level signals, temperature compensated output)
One size: 32×22×30mm L * W * H
Main chip: , carbon dioxide gas sensing probe
Working voltage: DC 6V

1, having a signal output instruction;
2, dual signal output (analog output, and TTL level output);
3, TTL output valid signal is low. (Low-level signal when the output light can be directly connected to the microcontroller)
4, analog output (0 ~ 2V/0-4V) voltage output selectable default hair 0-2V;
5, carbon dioxide has a high sensitivity and good selectivity;
6, with a long life and reliable stability;
7, rapid response and recovery characteristics;
8, the probe can plug design for easy testing.

CO detection device for the family, the environment. Suitable for detecting the concentration of carbon dioxide, carbon dioxide gas sensors tested concentration range: 0 to 10000ppm
