Description

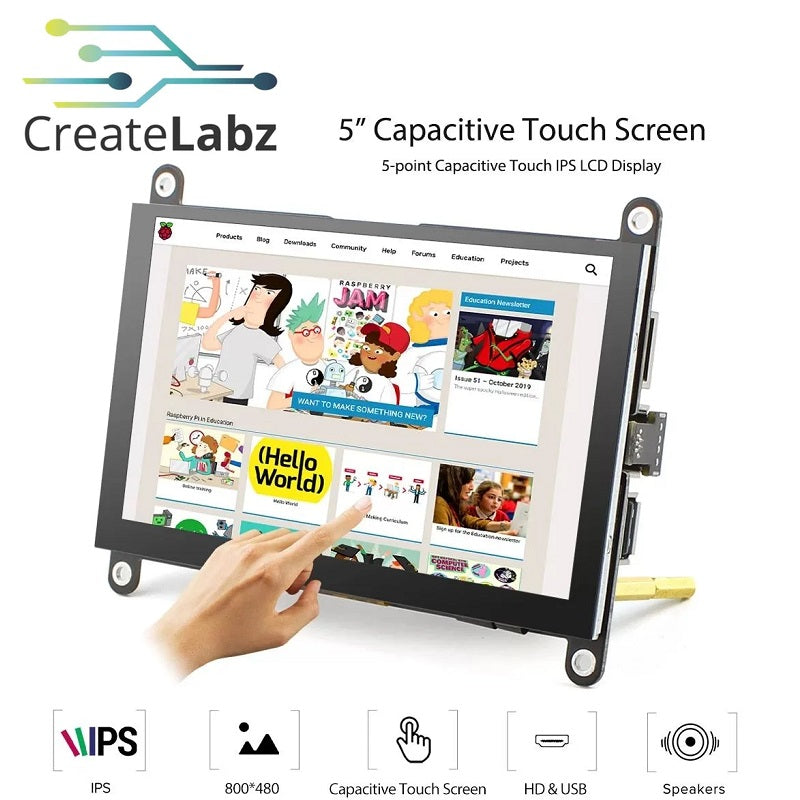

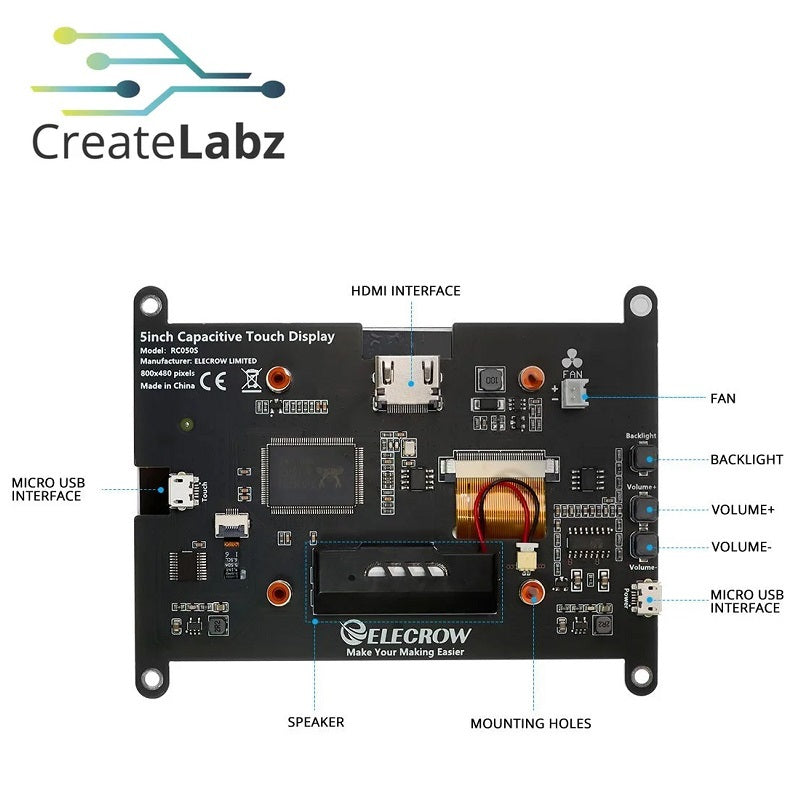

The resolution of the LCD display is 800 x 480, you can configure the resolution via software, and the maximum resolution it supports is 1920 x 1080. It is a USB capacitive touch screen and does not require a driver. It supports five touch controls, besides that, the LCD screen comes with an OSD menu adjustment function. You can adjust the contrast, brightness, and switch buttons. There are 9 interfaces on the back of the screen, one earphone for audio output; two touch interfaces (USB connector) for power supply and touch output; and one display, an HDMI-compatible interface, for connecting the motherboard and LCD display. One power, it can control the backlight to turn on and turn off to save power. One return button is only useful in the OSD menu. One right/down, backlight shortcut key. One left/up, backlight shortcut key. A menu is useful in the OSD setting menu, open the OSD/ select key.
Features:
- Free-driver, Plug and Play
- 5 point capacitive touch screen
- 5inch standard monitor, 800 x 480 resolution
- With volume adjustment function, backlight control, loudspeakers

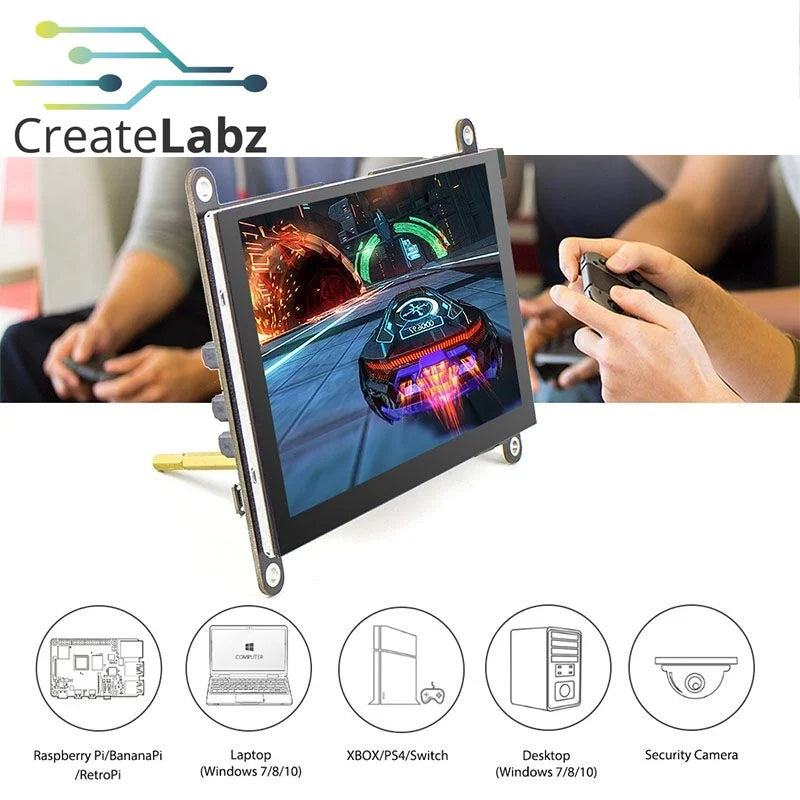

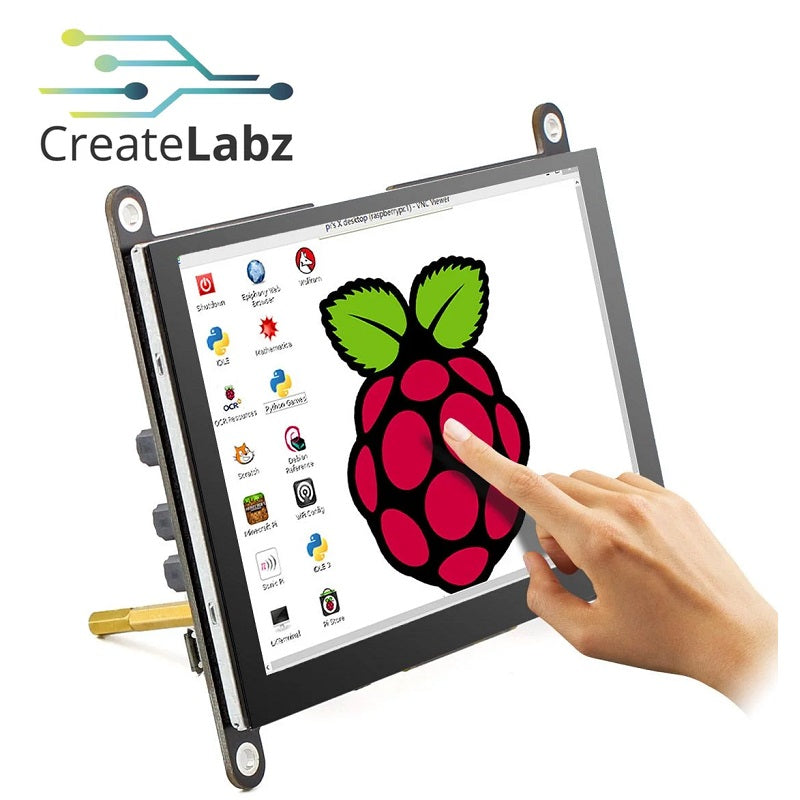

- Compatible with mainstream mini PC such as Raspberry Pi (5/4/4B/3/3B ), BB Black, Banana Pi
- Supports Raspbian, Ubuntu, Kodi, Win10 IOT, single-touch, supports Win7, Win8, Win10 system
Specification:
- Model: RC050S
- Size: 5 Inch
- Resolution: 800x480
- Touch: 5 points Capacitive Touchscreen
- Interface: HDMI-compatible interface & USB
- Speaker: Support
- Screen Size: 109x66mm
- Panel Dimension: 121.11x77.93x14.1mm
- Package size: 5.5x 5.3x2 inch
- Panel Weight: 126g
- Product Weight: 162g
- Package weight: 222g

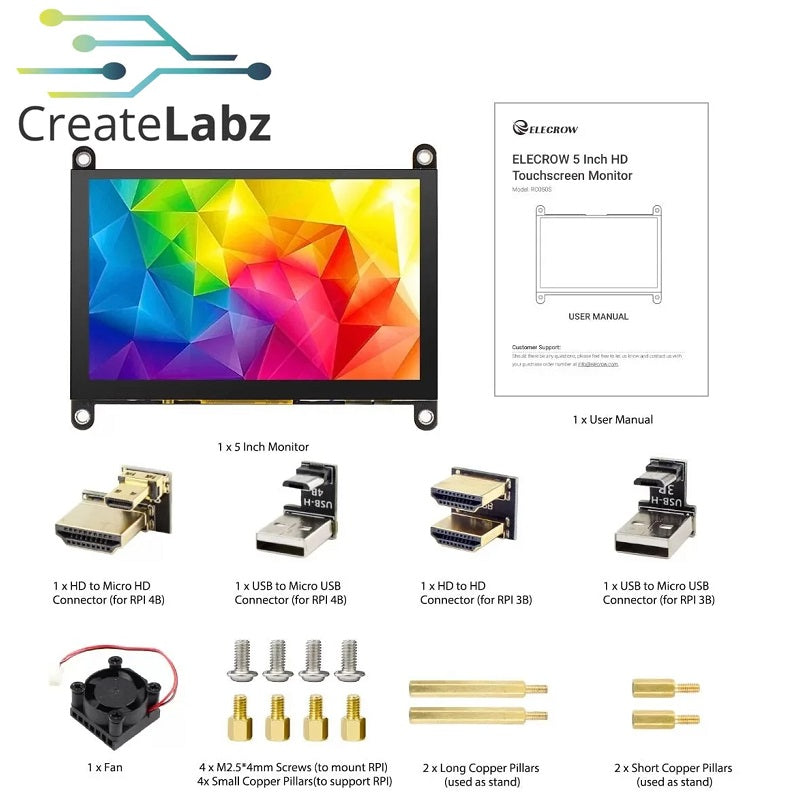

Package list:
- 1 x 5 inch Monitor
- 2 x HDMI-compatible Connector
- 2 x USB Connector
- 4 x M2.5*4mm Screws
- 4x Small Copper Pillars
- 1 x Small Fan
- 2 x Long Cooper pillars
- 2 x Short Cooper pillars
- 1 x User manual
Note: Product Images are shown for illustrative purposes only and may differ from the actual products.
