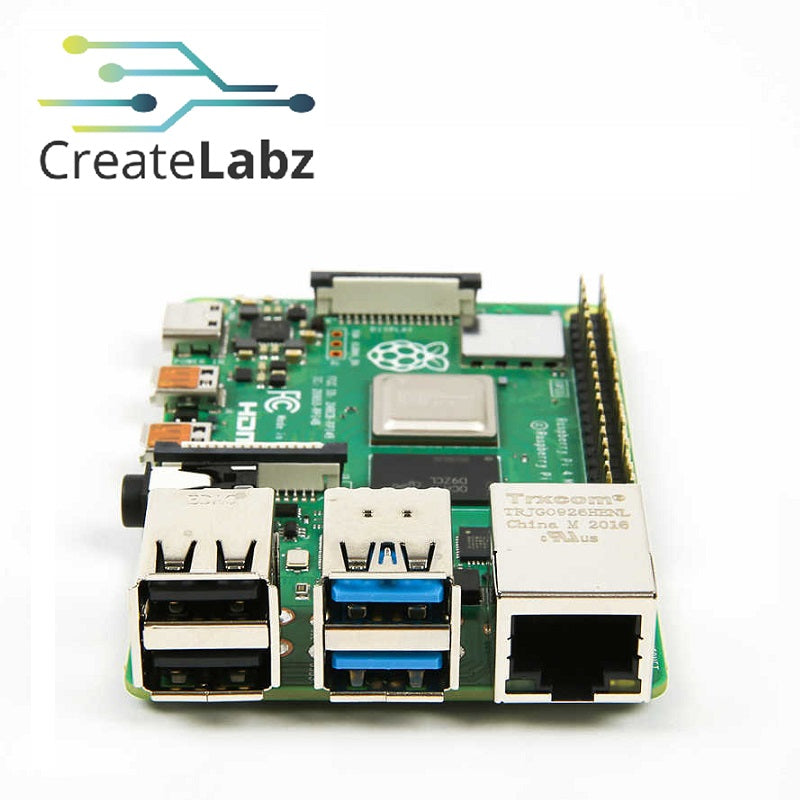

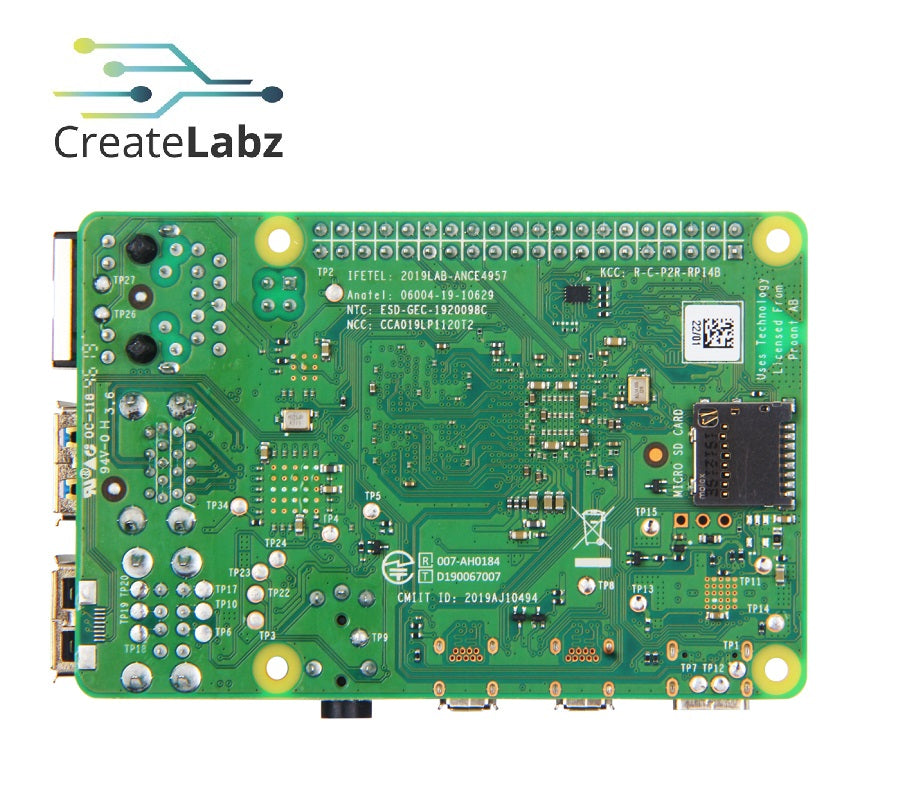

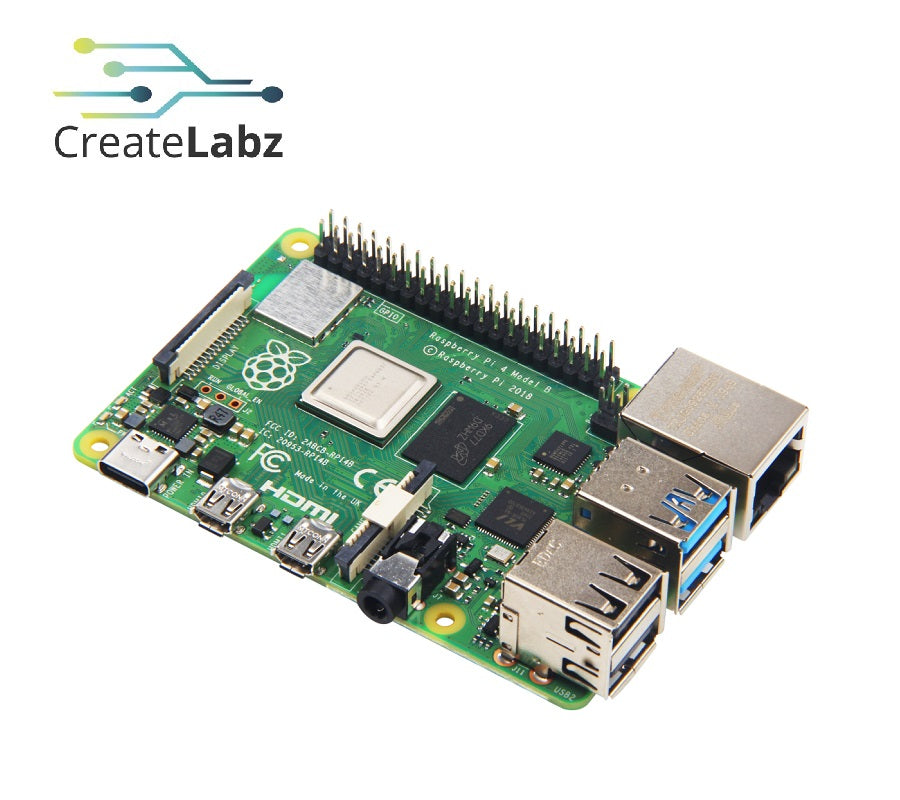

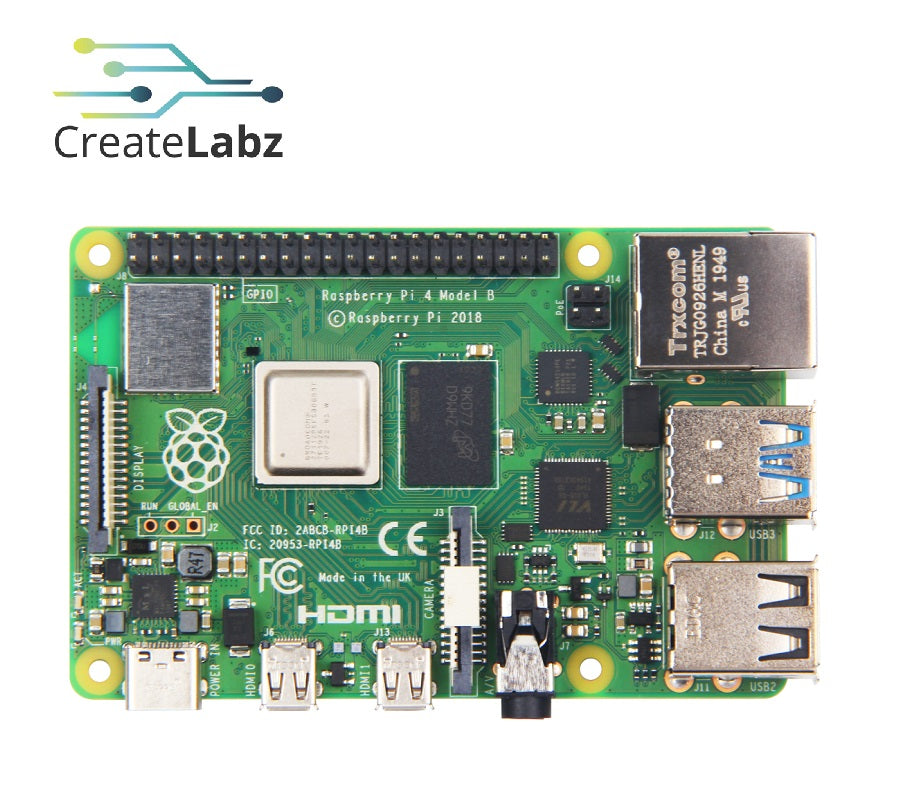

Raspberry Pi 4 Computer Model B (4GB RAM)

Raspberry Pi 4 Model B is the latest product in the popular Raspberry Pi range of computers. It offers ground-breaking increases in processor speed, multimedia performance, memory, and connectivity compared to the prior-generation Raspberry Pi 3 Model B+ while retaining backward compatibility and similar power consumption.

This product's key features include a high-performance 64-bit quad-core processor, dual-display support at resolutions up to 4K via a pair of micro-HDMI ports, hardware video decode at up to 4Kp60, up to 4GB of RAM, dual-band 2.4/5.0 GHz wireless LAN, Bluetooth 5.0, Gigabit Ethernet, USB 3.0, and PoE capability. Since the new pi changes the full HDMI interface into two micro HDMI ports, so you may need this Micro HDMI to HDMI Adapter to work with your HDMI display. The dual-band wireless LAN and Bluetooth have modular compliance certification, allowing the board to be designed into end products with significantly reduced compliance testing, improving both cost and time to market.

Specification

• Processor:   Broadcom BCM2711, quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz

• Memory:    4GB LPDDR4(depending on model)

• Connectivity:


  • 2.4 GHz and 5.0 GHz IEEE 802.11b/g/n/ac wireless


  • LAN, Bluetooth 5.0, BLE


  • Gigabit Ethernet


  • 2 × USB 3.0 ports


  • 2 × USB 2.0 ports

• GPIO:    Standard 40-pin GPIO header(fully backward-compatible with previous boards)

• Video & Sound:


  • 2 × micro HDMI ports (up to 4Kp60 supported)


  • 2-lane MIPI DSI display port


  • 2-lane MIPI CSI camera port


  • 4-pole stereo audio and composite video port

• Multimedia:


  • H.265 (4Kp60 decode)


  • H.264 (1080p60 decode, 1080p30 encode)


  • OpenGL ES, 3.0 graphics

• SD card support:    Micro SD card slot for loading operating system and data storage

• Input power:


  • 5V DC via USB-C connector (minimum 3A)


  • 5V DC via GPIO header (minimum 3A)


  • Power over Ethernet (PoE)–enabled(requires separate PoE HAT)

• Environment:    Operating temperature 0–50ºC

• Production lifetime:    The Raspberry Pi 4 Model B will remain in production until at least January 2026.

Hardware Overview
