Description
The Raspberry Pi 27W USB-C Power Supply is the recommended power supply for Raspberry Pi 5, designed to support high-performance operation and power-hungry USB peripherals such as hard drives and SSDs connected to the four Type-A USB ports. When used with Raspberry Pi 5, the power supply automatically enables higher current availability for USB peripherals, increasing the USB current limit to ensure stable operation under heavy system and peripheral loads. This makes it ideal for advanced projects, continuous operation, and demanding workloads.
In addition to powering Raspberry Pi 5, the Raspberry Pi 27W USB-C Power Supply supports multiple USB Power Delivery (PD) profiles, allowing it to power a wide range of third-party PD-compatible devices. Supported voltage profiles include 9V at 3A, 12V at 2.25A, and 15V at 1.8A, with total output power limited to 27W. The power supply operates across a wide input voltage range, making it suitable for global use. It features an integrated USB-C cable and is available in black or white variants.
Features
- High Power Output: Delivers up to 27W of power, including 5.1V at 5A, to support Raspberry Pi 5 and high-power USB peripherals.
- Optimized for Raspberry Pi 5: Automatically increases the USB peripheral current limit when connected to Raspberry Pi 5, ensuring reliable performance during demanding use cases.
- Multiple USB Power Delivery Profiles: Supports 9V⎓3A, 12V⎓2.25A, and 15V⎓1.8A, making it suitable for many PD-compatible, non-Raspberry Pi devices.
- Wide Input Voltage Range: Accepts 100–240 VAC, enabling use in regions with different power standards.
- USB-C Connectivity: Integrated USB-C connector provides efficient, reliable power delivery.
Technical Specifications
Electrical
- Input Voltage: 100–240 VAC
- Input AC Frequency: 50–60 Hz
- Output Voltage (Primary): 5.1V DC
- Output Current (Primary): 5.0A
- Maximum Output Power: 27W
- Nominal Output Power (5.1V): 25.5W
USB Power Delivery Profiles
- 9V ⎓ 3A
- 12V ⎓ 2.25A
- 15V ⎓ 1.8A
Efficiency
- Average Active Efficiency: 89.0%
- Efficiency at 10% Load: 87.9%
- No-Load Power Consumption: 0.1W
Physical
- Connector: USB-C
- Plug types: US, Canada (type A)
- Cable Length: 1.2 m
- Cable Gauge: 17–18 AWG

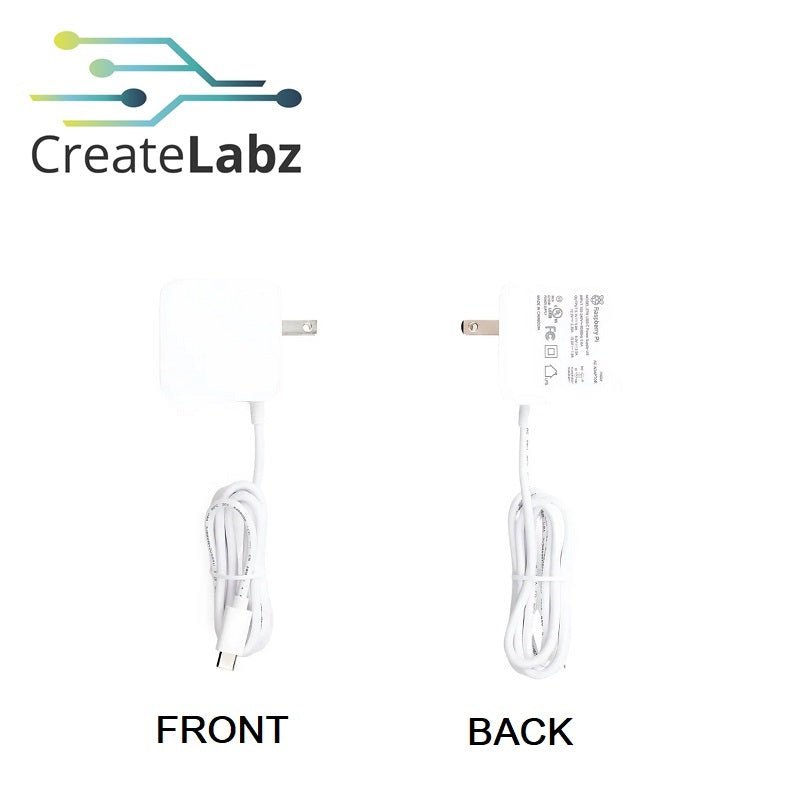

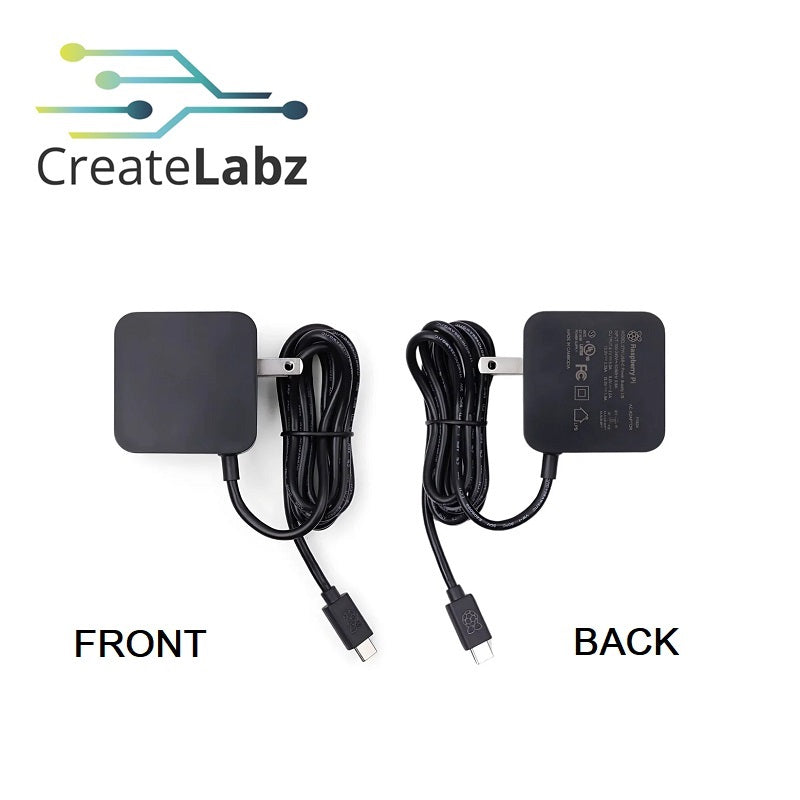

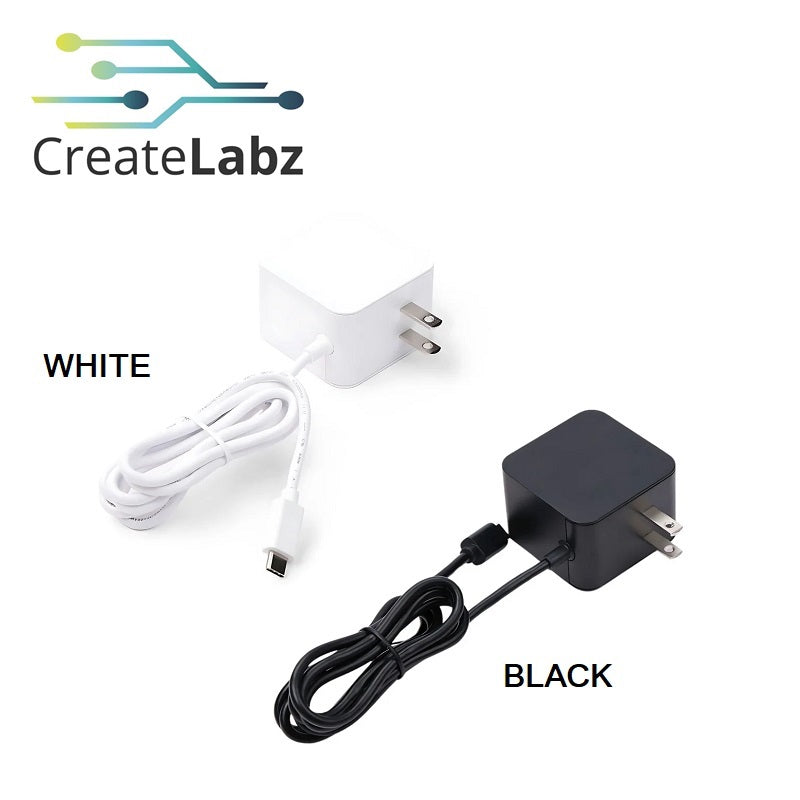

- Color Options: Black or White (variant dependent)
Compatibility
- Raspberry Pi 5 (recommended power supply)
- USB Power Delivery (PD) compatible third-party devices
Package Includes:
1x Raspberry Pi 27W USB-C Power Supply, US plug
Note: Product Images are shown for illustrative purposes only and may differ from the actual products
