Description
This is an excellent mini monitor with 7 inch IPS screen. It supports HD 1024x600 resolution, IPS monitors help keep colors consistent at a wide viewing angle. Especially, with dual removable speakers to enhance your audiovisual experiences.
Four corner holes let you mount the small monitor onto your DIY IoT projects that you’re working on. This small monitor also comes with 2 stands, is easy to install and remove, great for on-the-go use.
With a capacitive USB touchscreen, simply power the USB touch port to achieve touch function and no need to install the driver, just plug and play!

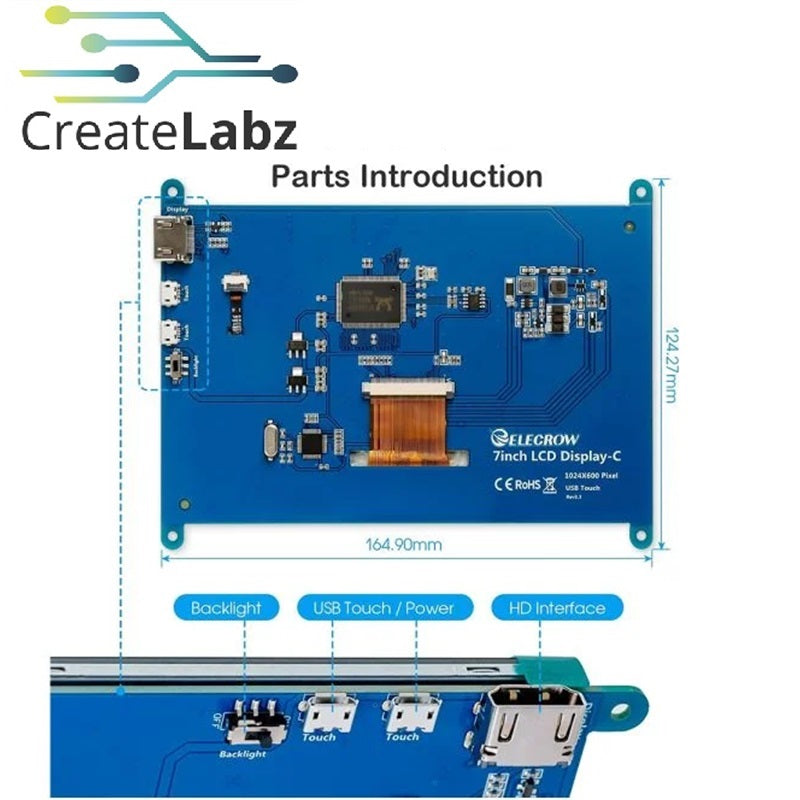

Signal via HDMI-compatible port, power & touch via micro USB port, drive free. No cable solution to RPi , just using 2 simple adapters to connect your Pi 4 directly.
Broadly you can use it with your Pi 5 4 3 2, Laptop and Windows 11 10 8 7, TV, video game console like switch/XBOX/PS, CCTV and security camera.

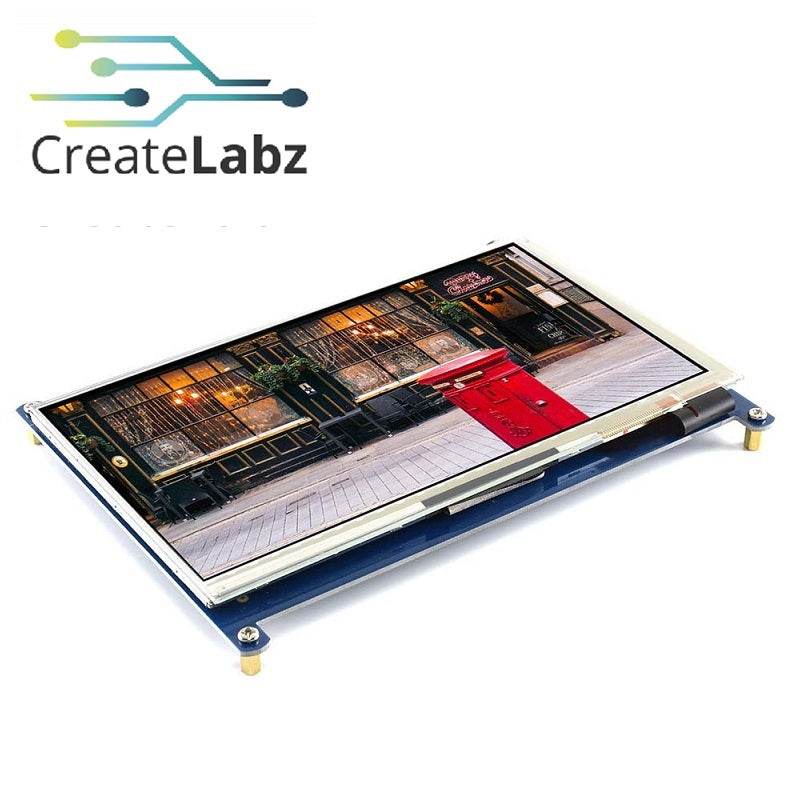

- High-Resolution Display: This 7-inch IPS touchscreen has a 1024x600 resolution, which can be adjusted via software to 1920x1080. It offers vivid colors and a wide 178° viewing angle with no color distortion. The tempered glass touch panel is more durable and scratch-resistant.
- Effortless Connectivity: Plug-and-play functionality with HDMI for video transmission and USB for power and touch control—no drivers required. Compatible with Raspberry Pi, PC, laptops, and gaming consoles. Supports both wall-mounted and desktop installation options.

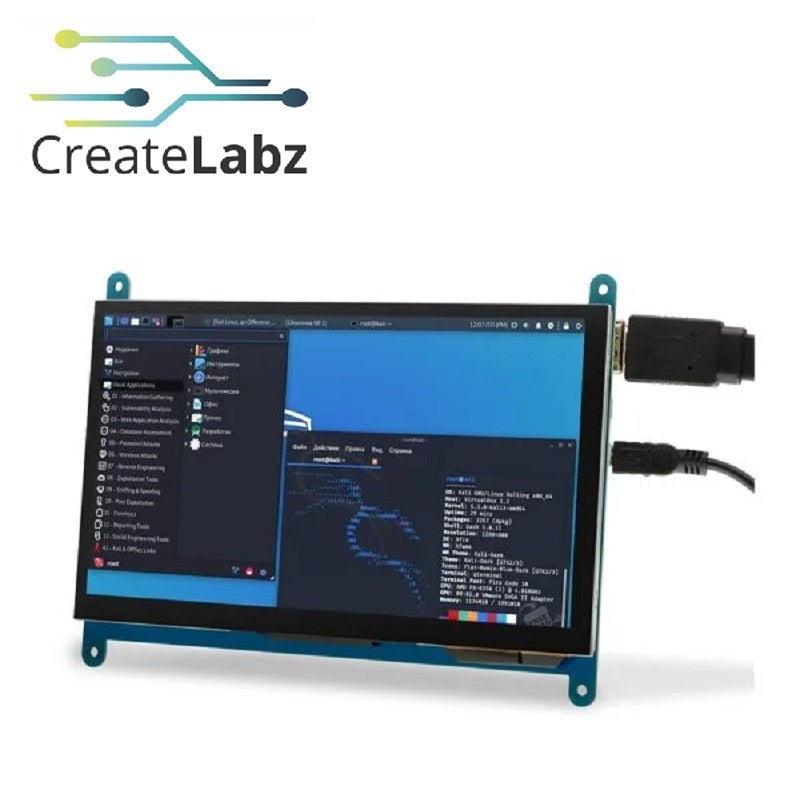

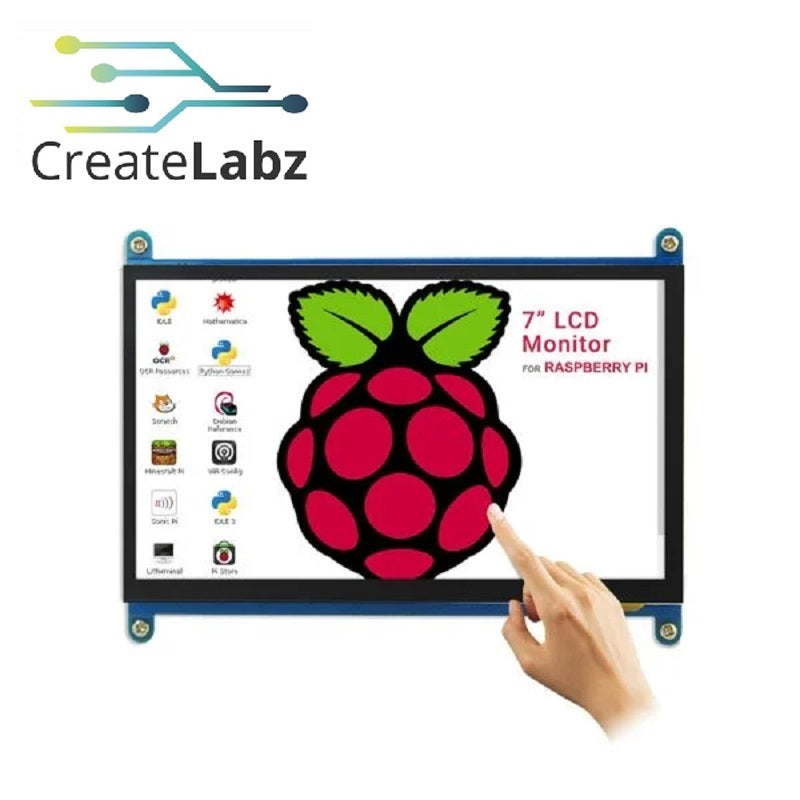

- Broad Compatibility: The touch screen monitor is fully compatible with Raspberry Pi 5/4/3B+/3B/2B+, Banana Pi, Jetson Nano, and other popular development boards. It can also serve as a compact HDMI display for various applications.

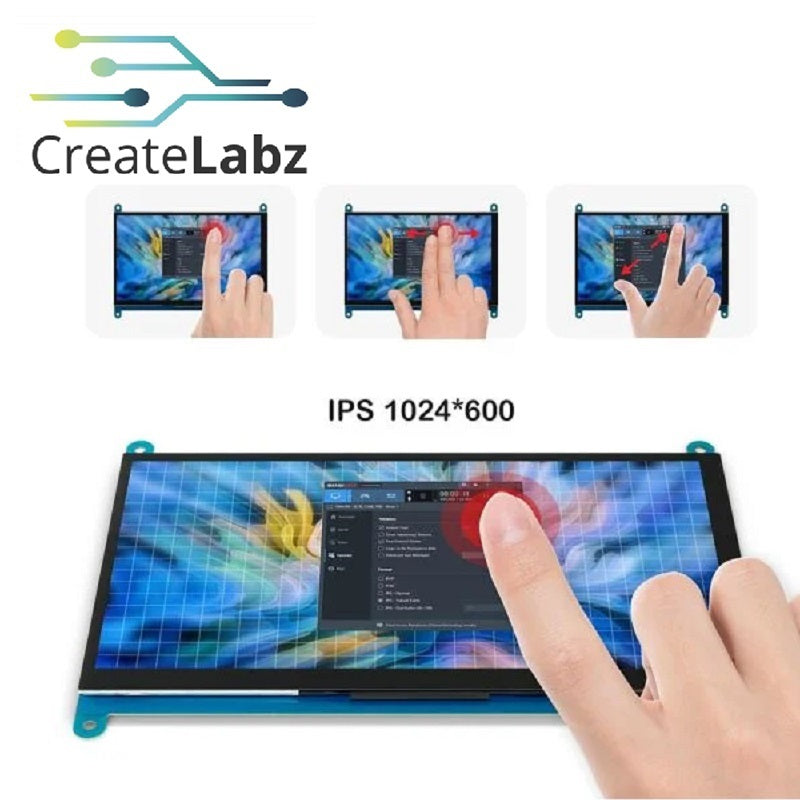

- Responsive Touch Experience: The capacitive touchscreen supports 5-point touch, enabling smooth multi-touch functionality on Windows 11/10/8/7. Supports single-touch operation on Raspberry Pi (Raspbian, Ubuntu, Kali, Retropie) and Jetson Nano for precise and responsive control.
- Immersive Audio & Visuals: The LCD Display monitor is built-in dual speakers with a 3.5mm headphone jack and digital audio output. Adjustable volume and backlight settings enhance your viewing and listening experience, making it perfect for DIY projects, monitoring, gaming, and more.
Note:
- It's recommended to use a 5V3A or above power supply to ensure enough power.
- When working with Raspberry Pi 4, for the system image of Raspberry Pi after 2021-10-30, for example on Bullseye, please modify "dtoverlay = vc4-KMS-v3d" to "dtoverlay = vc4-fkms-v3d" in the config file, otherwise it may fail to start. But on Buster, please comment out "dtoverlay = vc4-fkms-V3D" by adding #.
- Drivers can be added to your current system to support LCD display and touch control.
- Images CAN NOT be used with your current system. They're stand-alone systems that support LCD display and touch control already.
- If the LCD is intended to play videos, please choose the one with HDMI-compatible display interface.
- All the driver and related image files have been included in the DVD.

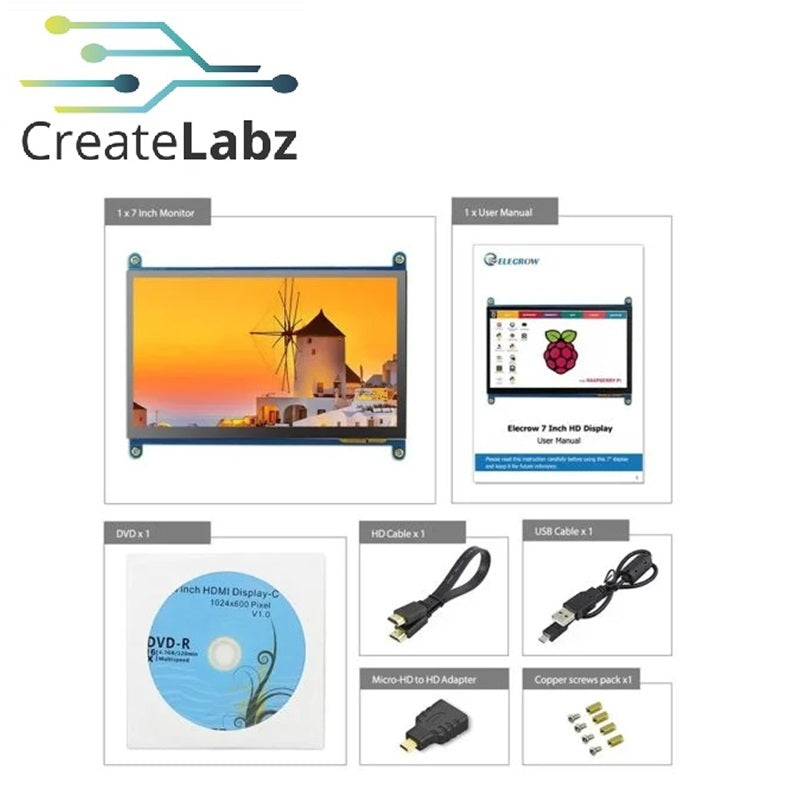

Package List:
- Model: RC070
- 7inch HDMI-compatible LCD (C) Display× 1
- HDMI-compatible cable x 1
- Micro USB cable x 1
- Copper pillar kit x 1
- DVD x 1
Note: Product Images are shown for illustrative purposes only and may differ from the actual products.
