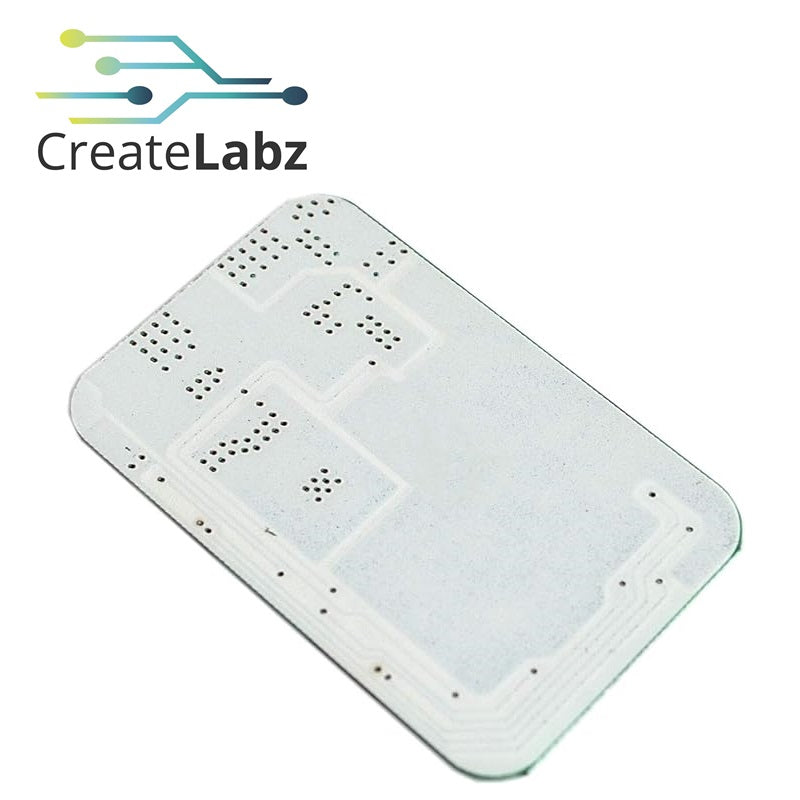

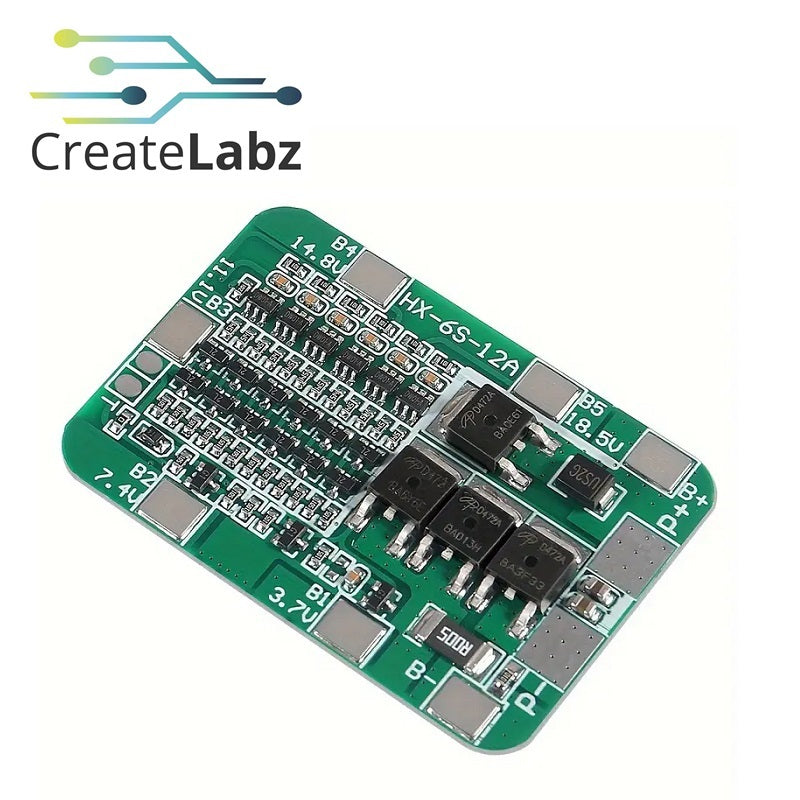

6S 18650 Lithium Battery BMS Protection Board 15A

CreateLabz StoreSKU: 81-062

Price:
₱105

Shipping calculated at checkout

Stock:
In stock (18 units), ready to be shipped

Description

For the rechargeable (generally refers to the lithium battery) from the protection of the integrated circuit board. A lithium battery (rechargeable type) needs protection. As the lithium battery itself determines that the material itself can not be overcharged, overdischarged, overcurrent, short-circuited, and ultra-high temperature charge and discharge, lithium battery lithium components will always follow a protective resistor with a sampling resistor and a current fuse

Specifications:

  • Size: approx.50*31*2mm
  • Lampshift maximum discharge current: 15A
  • Instantaneous discharge current: 25A
  • Charging voltage: 25.5V
  • Charging current: 15A (MAX)
  • Overcharge detection voltage: 4.28 ± 0.05V
  • Overcharge protection delay: 0.1S
  • Overcharge release voltage: 4.08 ± 0.05V
  • Over discharge detection voltage: 2.55 ± 0.08V
  • Overdischarge detection delay: 0.1S
  • The overdischarge release voltage: 2.9 ± 0.1V
  • Overcurrent detection voltage: 150mV
  • Overcurrent detection delay: 9MS
  • Overcurrent protection current: 30 ± 3A
  • Overcurrent protection release condition: Disconnect the load
  • Short circuit detection delay: 250uS
  • Short circuit protection Release condition: disconnect negative open
  • Main circuit conduction resistance: ≤20mΩ
  • Working current: ≤30uA
  • Sleep current (battery over discharge) ≤10uA
  • Temperature range: -30 / + 80

Package Includes:
1x 6S 18650 Lithium Battery BMS Protection Board 15A
Note: Product Images are shown for illustrative purposes only and may differ from the actual products
