Description

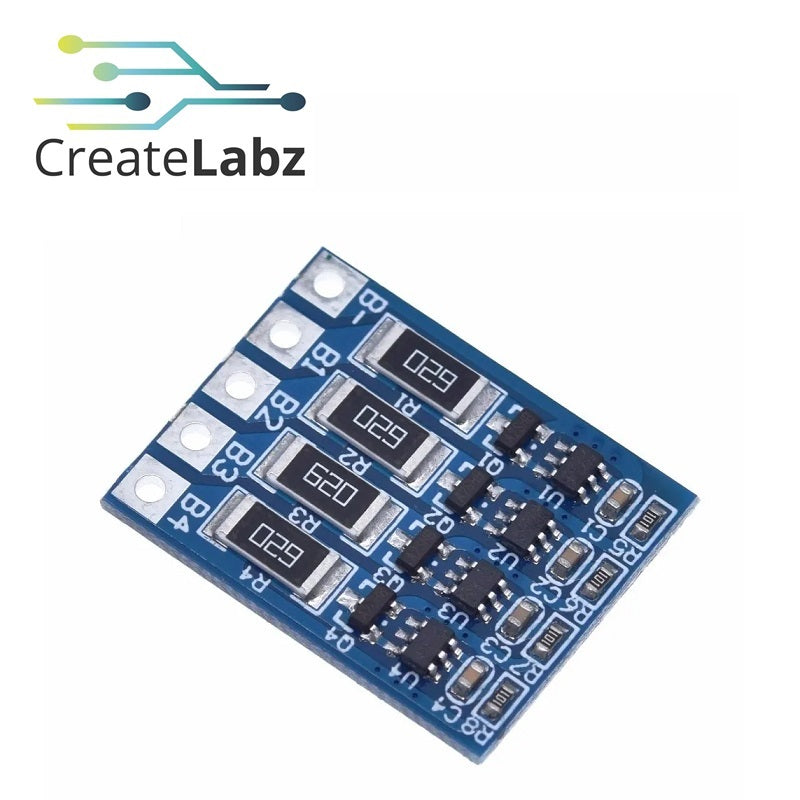

The 4 Series 14.8V 18650 Lithium Battery Equalization Board is designed for lithium battery packs that require equalization charging and cell balancing. It ensures that each cell in the battery pack reaches a fully charged state at the same time, improving overall performance and battery life. Please note that this equalization board does not provide charge or discharge protection and cannot replace a battery protection board (BMS). During charging, cells with higher voltage are discharged through resistors, allowing lower-voltage cells to continue charging. This process enables voltage balancing through split equalization, ensuring uniform cell voltage across the battery pack.

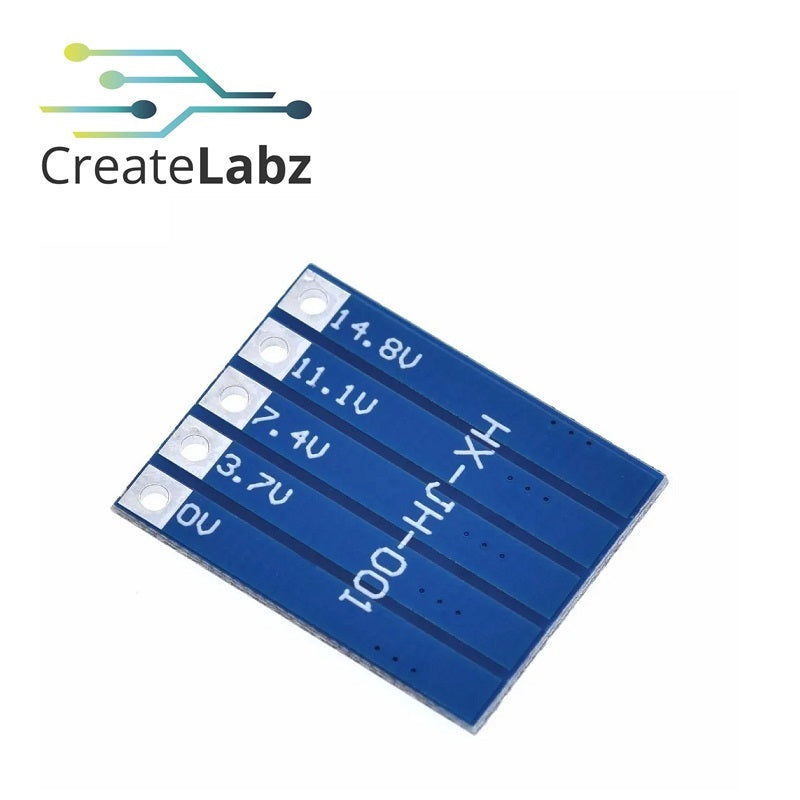

Pin Description:
- B- Connected battery negative.
- B1 Connects the battery 1 with the contact in battery 2.
- B2 Connects the battery 2 with the contacts in the battery 3.
- B3 Connect the battery 3 to the contact in the battery 4.
- B4 Connected battery positive.
Features :
- Type: Voltage Regulator.
- Supply Voltage:14.8V/16.8V.
- Dissipation Power:18650 Lithium Battery Balanced Function Board.
- Operating temperature: from -40 to +85
- Balance Voltage for every single cell: 4.2V
- Balance current for every single cell: 66mA
- Application:14.8V/16.8V 18650 Lithium Battery Balanced Function Board.
Package Includes:
1x 4S 14.8V 16.8V 18650 Lithium Battery Charge Protection Board
Note: Product Images are shown for illustrative purposes only and may differ from the actual products
