Description
Specification:
- Module Properties: non-isolated step-up module (BOOST)
- Model: XL6009
- Material: Circuit Board, Electronic Components
- Input voltage: 5-32V
-
Output voltage: (4.5-35V)
-
Output Current: 1.5A (MAX)
-
Input Current: 4A (MAX)
-
Output power: natural cooling 20W, plus heat sink 25W (MAX) real power
- Maximum output power = input voltage conversion efficiency * 4A *conversion efficiency
- Conversion efficiency: the efficiency of the measured voltage and current commonly used (hereinafter, for reference only)
- Operating temperature: Industrial grade (-40 C to + 85 C) (ambient temperature exceeds 40 degrees, lower power use, or to enhance heat dissipation)
- Full load temperature rise: 45 C
- Operating frequency: 400khz

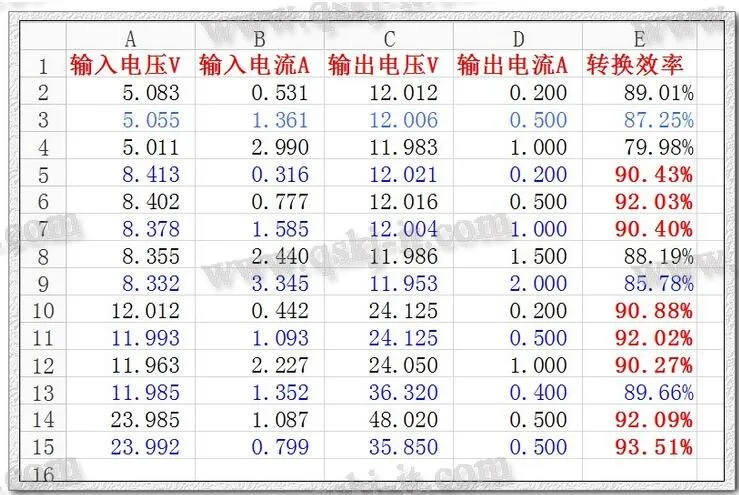

- Load current: 5V turn 12V 15mA, 8.4V turn 12V 7mA, 12V switch 24V 9mA, 12V switch 36V 18mA, 24V switch 48V 9mA, 24V switch 36V 6mA.
- Load regulation: ± 0.5%
- Voltage regulation: ± 0.5%
- Dynamic response speed: 5% 200uS
- Enable Control Port: Yes, high 1.4V-VIN (ON), low 0-0.8V (OFF), the default high
- Short circuit protection: None (Please install fuse or protection circuit input)
- Input reverse polarity protection: None, please with our reverse protection diode board or in the input series.
- Installation: You can screw (Fixing holes 3 mm), 2 fixing holes
-
Color: Red
-
Package Includes:
1x Boost DC-DC Adjustable Converter Module XL6009
-
