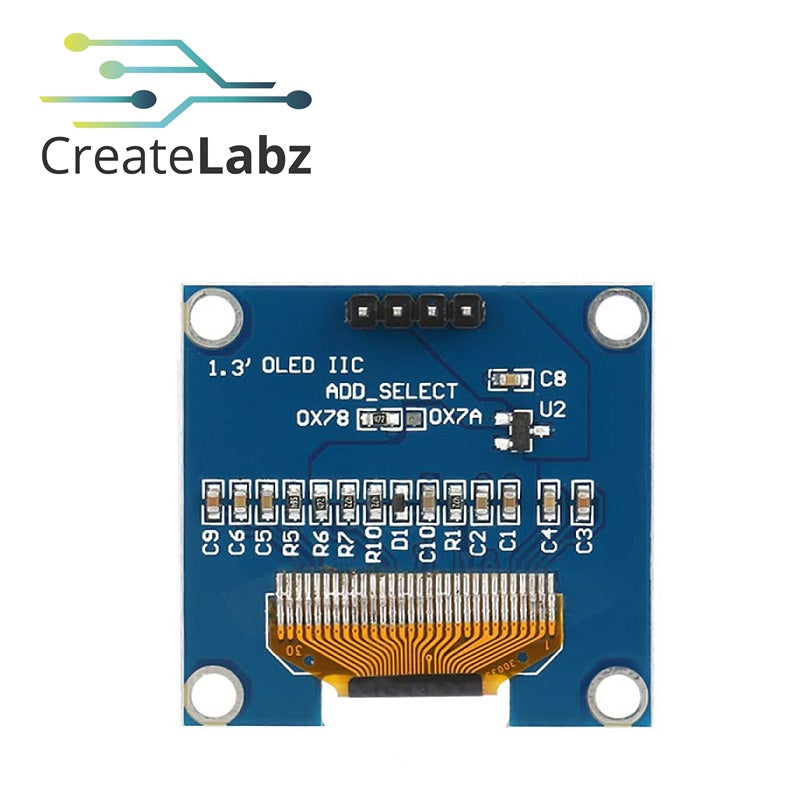

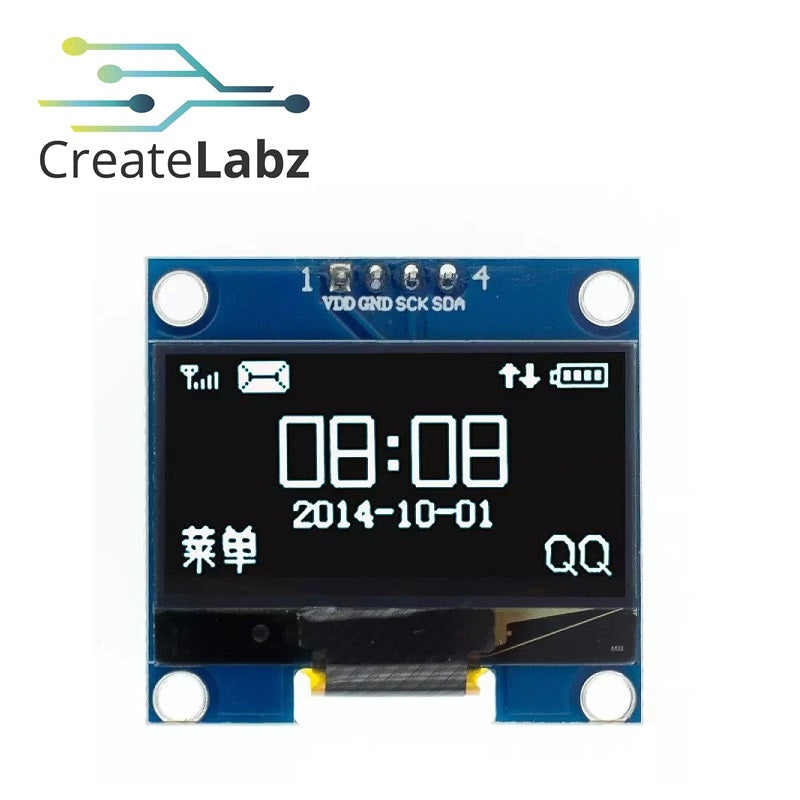

OLED Display module 128x64 1.3-inch, white I2C

CreateLabz StoreSKU: 40-039

Price:
₱390

Shipping calculated at checkout

Stock:
In stock (5 units), ready to be shipped

Description

This 1.3″ I2C OLED Display is an OLED monochrome 128×64 dot matrix display module with I2C Interface. It is perfect when you need an ultra-small display. Comparing to LCD, OLED screens are way more competitive, which has a number of advantages such as high brightness, self-emission, high contrast ratio, slim outline, wide viewing angle, wide temperature range, and low power consumption. It is compatible with any 3.3V-5V microcontroller, such as Arduino.
Features:

  • Only Need 2 I/O Port to Control
  • Color: White
  • Fully Compatible with Arduino
  • Working temperature: -30°C ~ 70°C
  • Screen size: 1.3 inches
  • Text Color: White
  • Resolution: 128x64
  • Driver IC: SH1106
  • Input voltage: 3.3V / 5V
  • Factory configured for SPI protocol (can be easily changed to IIC)

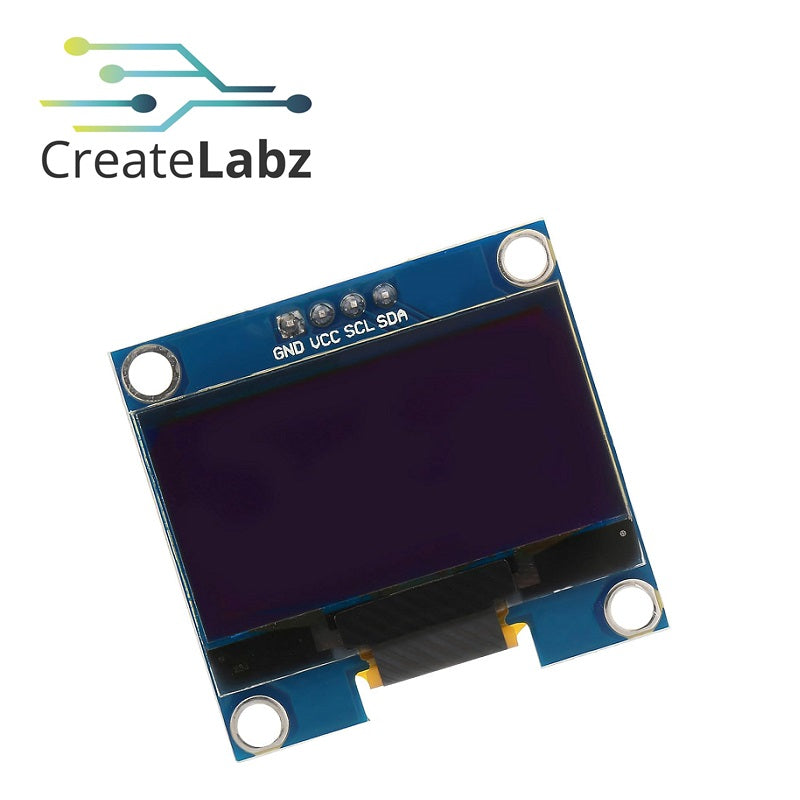

Pin Definition:
1. GND: Power ground
2. VCC: Power positive
3. SCL: Clock wire
4. SDA: Data wire.
Package Includes:
1x OLED Display module 128x64 1.3-inch
Note: Product Images are shown for illustrative purposes only and may differ from the actual products
