Description
The NEO-8M GNSS Module is built on the high-performance u-blox M8 GNSS engine. The NEO-M8N is optimised for cost-sensitive applications, while NEO-M8N and NEO-M8Q provide the best performance. The NEO-M8N offers high performance also at low power consumption levels. The future-proof NEO-M8N includes an internal Flash that allows future firmware updates. This makes NEO-M8N perfectly suited to industrial and automotive applications.
The NEO-8M series of concurrent GNSS modules is built on the high-performing u-Blox M8 GNSS engine in the industry-proven NEO form factor. NEO-M8N provides the best performance and easier RF integration. The NEO-M8N also offers high performance at low power consumption. The future-proof NEOM8N includes an internal Flash that allows future firmware updates. This makes NEO-M8N perfectly suited to industrial and automotive applications.
- Model: GYGPSV3 – NEOM8N
- NEO – M8N GPS module, 3 v to 5 v power supply and general,
- Adopt imported fromU – bloxNEO – M8N – 0-01 GPS module
- Super module with ceramic, is predestined friends the antenna signal
- EEPROM save configuration parameter data when power supply drop
- With the data backup battery
- Have LED lights
- High quality heavy gold PCB
- The antenna size 25 * 25 mm
- Module size 25 mm * 35 mm
- Install the aperture 3 mm
- A single 19 g in weight
- The power supply voltage 3 v to 5 v
- The default baud rate: 9600
- Compatible with all kinds of flight control module, GPS soft computer test
Getting GPS Raw Data:
- Connect the GPS Antenna with the Module
- Make sure you have placed the antenna towards the open sky
- Power up the GPS Module using DC 5V through VCC and GND pin
- Use Microcontroller or USB to Serial Converter to Send AT Commands
- Extract the NEMA data according to your preference
Package Includes:

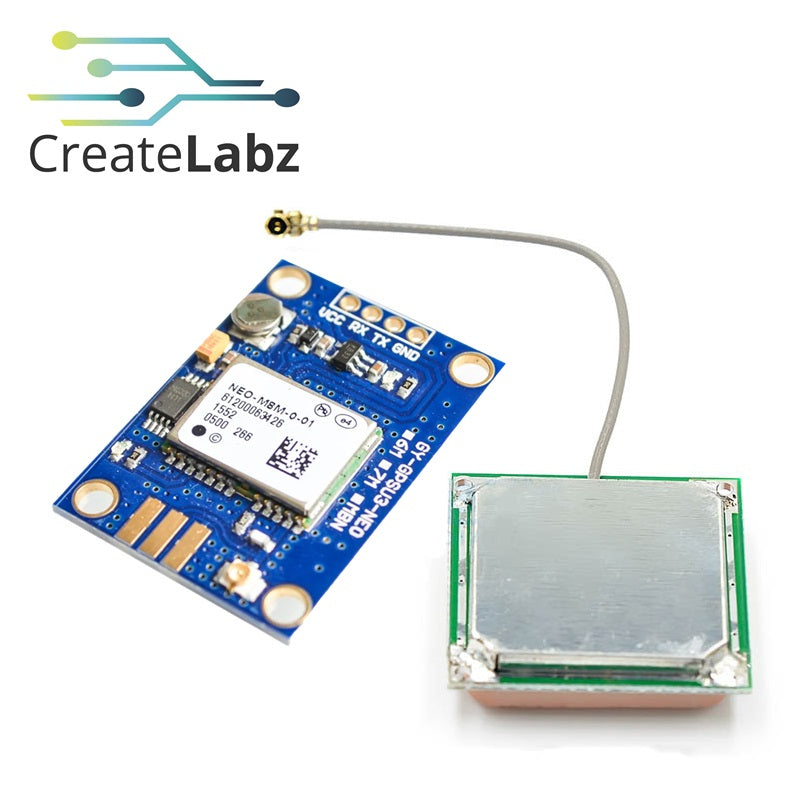

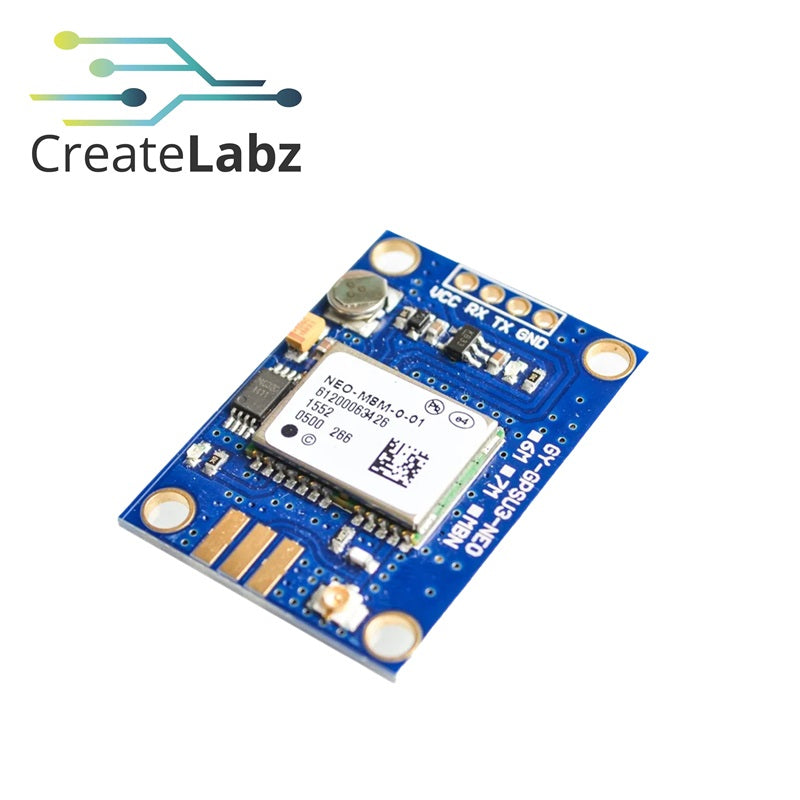

1 x GPS Module, Ublox NEO-8M

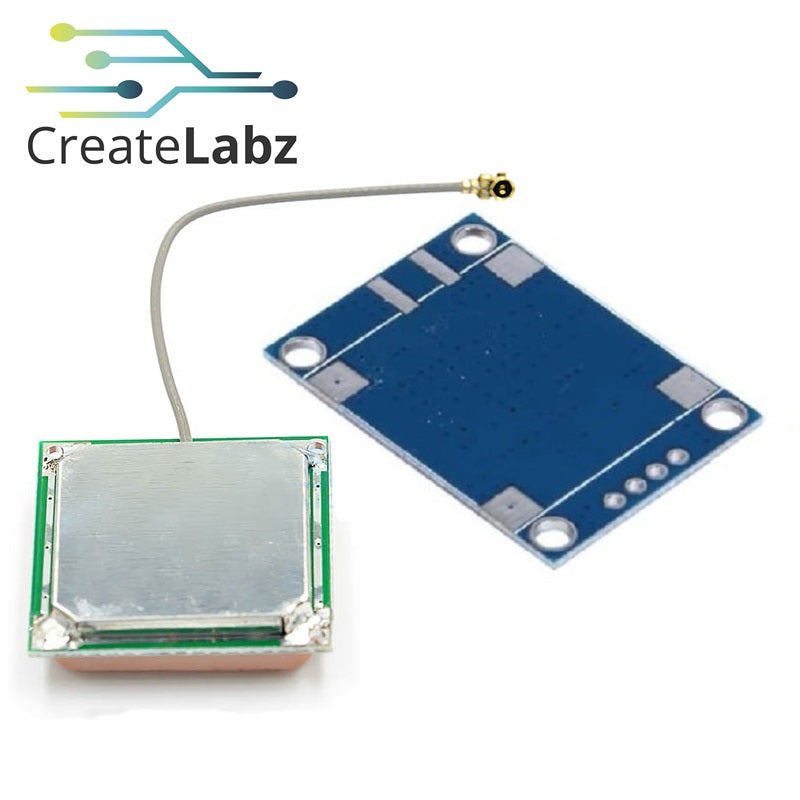

1 x Antenna
Note: Product Images are shown for illustrative purposes only and may differ from the actual products
