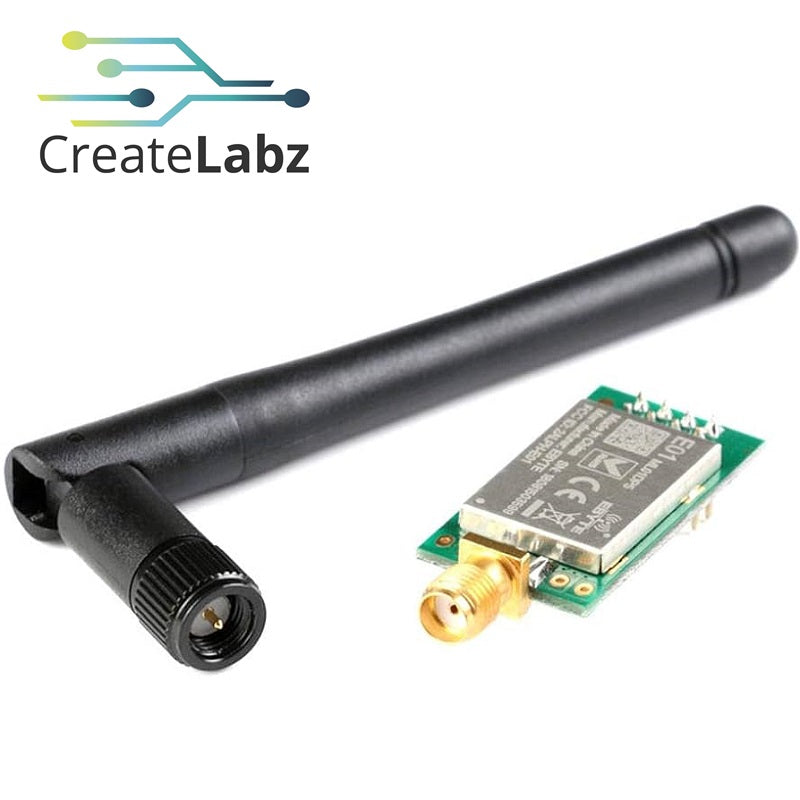

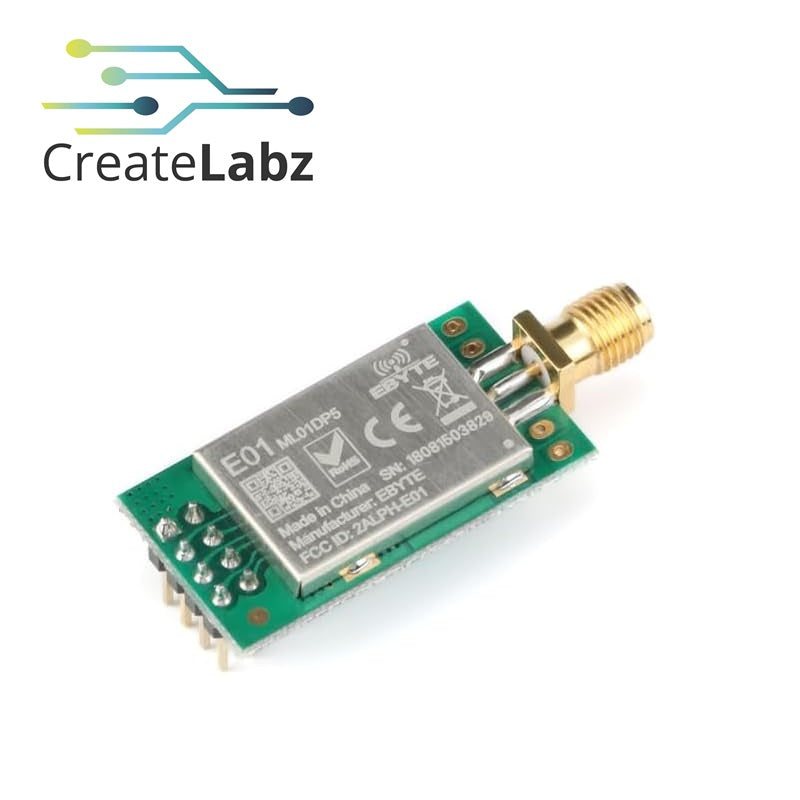

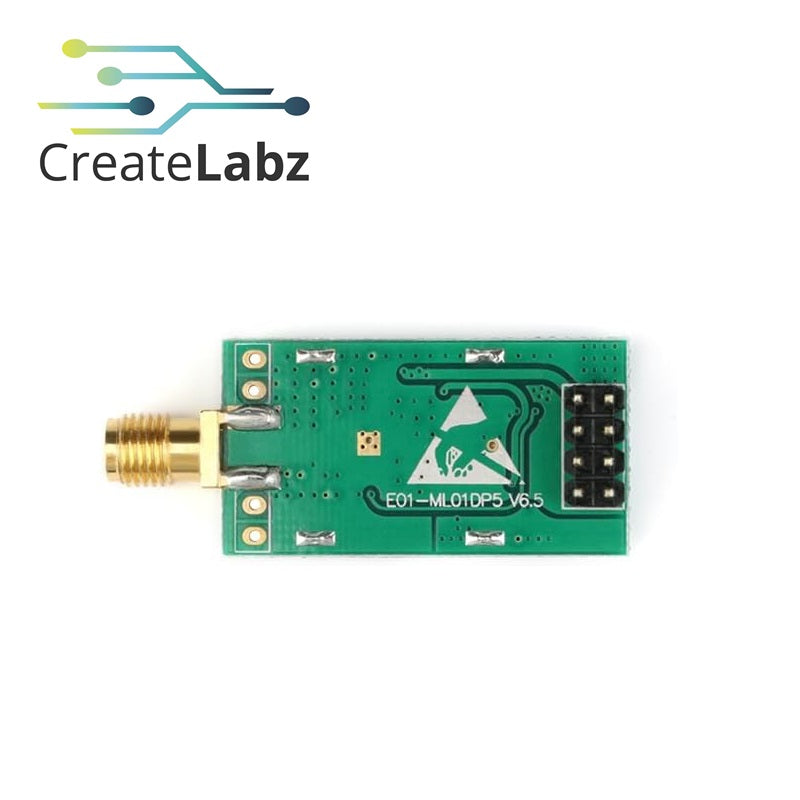

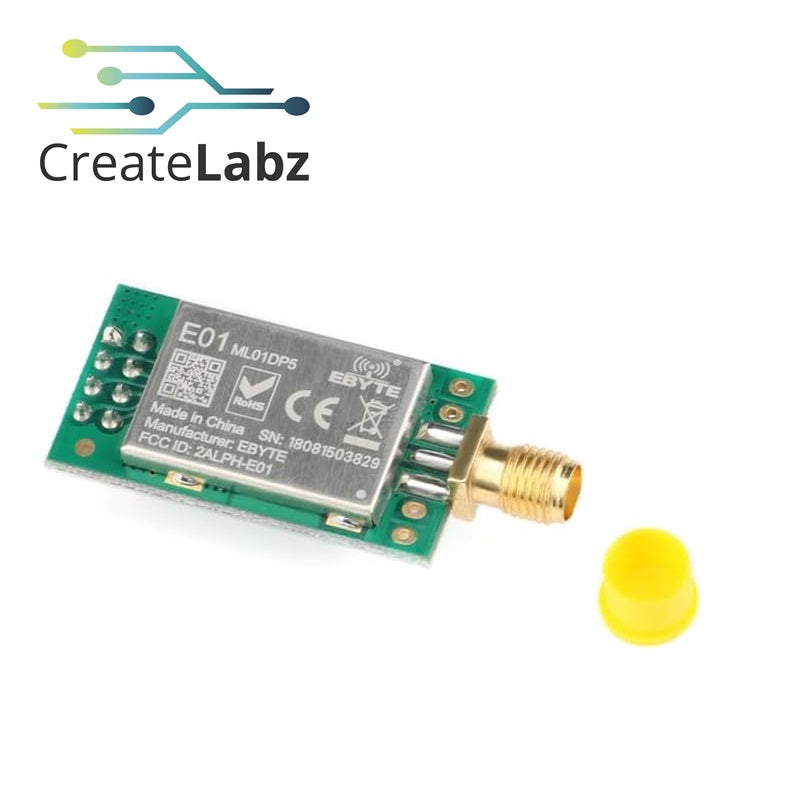

E01-ML01DP5 Ebyte 20dBm NRF24L01+PA+LNA 2.4GHz RF Wireless Transceiver Module

CreateLabz StoreSKU: 60-031A

Variant: Module only
Price:
₱395

Shipping calculated at checkout

Stock:
In stock (8 units), ready to be shipped

Description

ML01DP5 is based on original imported nRF24L01P form Nordic in Norway. And equipped with 20dBm power amplifier chip imported from USA, which makes the transmitting power achieves 100mW (20dBm) while the receiving sensitivity enhanced by 10dB.

Specifications:

  • Working frequency range: 2400-2525MHz (adjustable through software)
  • Interface method: 2 * 4 * 2.54mm (plug-in type)
  • Power supply voltage: 2.0-3.6V DC (note: above 3.6V voltage, it will cause permanent damage to the module)
  • Communication level: 0.7VCC-5V (VCC refers to the module power supply voltage)
  • Measured distance: approximately 2100m (clear and open, maximum power, antenna gain 5dBi, altitude greater than 2m, 250k airspeed)
  • MAX power: ≤ 20dBm (approximately 100mW)
  • Airspeed: Level 3 adjustable (250kbps.1Mbps, 2Mbps)
  • Shutoff current: 1.0uA (nRF24L01P set to power off, CE low level)
  • Emission current: 130mA@20dBm
  • Receiving current: 20mA (CE=1)
  • Communication interface: SPI (up to 10Mbps)
  • Transmission length: 32 bytes maximum for a single packet, level 3 FIFO
  • Receive length: 32 bytes maximum for a single packet, level 3 FIFO

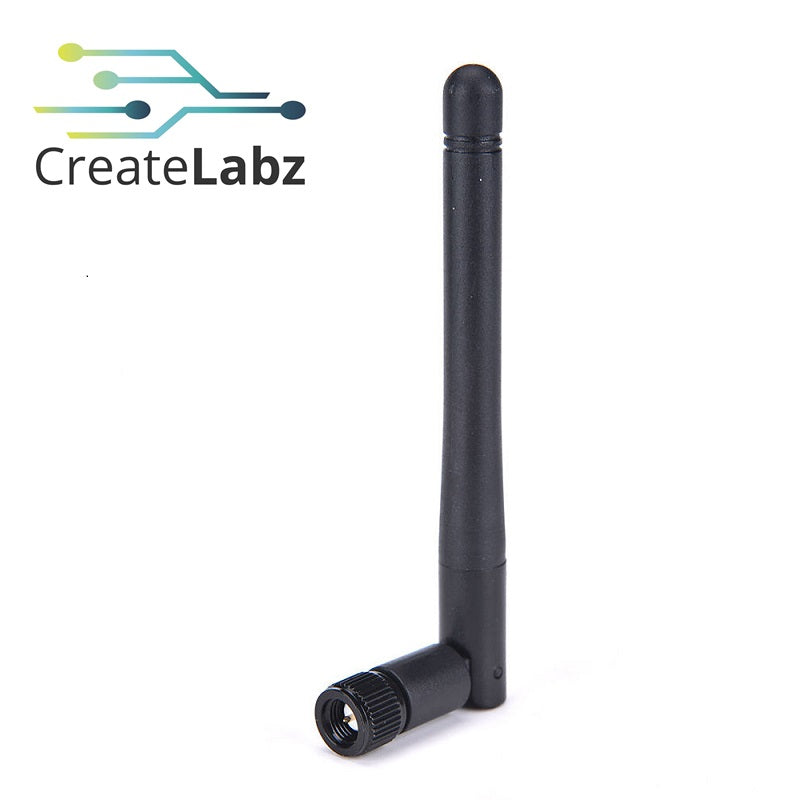

  • Antenna interface: SMA-K (external thread and internal hole)
  • Working temperature: -40~+85
  • Working humidity: 10%~90% relative humidity, non-condensing
  • Storage temperature: -40~+125
  • Receiving sensitivity: -106dBm@250kbps
  • Module size: 18 * 33.4mm (excluding SMA)

Application

  • Smart home and industrial sensors, etc;
  • Security and positioning systems;
  • Wireless remote control, drone;
  • Wireless game remote control;
  • Wireless voice, wireless headphones

Note: Product Images are shown for illustrative purposes only and may differ from the actual products
