Description
L298N motor driver standard
- This module uses L298N as the main drive chip, with strong driving ability, low heat, and strong anti-interference ability.
- Through this module can use the built-in 78 m05 drive power supply parts of their work, but in order to avoid the voltage regulator chip damage, when using the driving voltage is greater than 12 v, please use the external power supply 5 v logic.
- This module USES a large capacity filter capacitance, a continuation protection diode, which can improve reliability.
Features:
- Module name: dual H-bridge motor drive module
- Work mode: H-bridge drive (double road)
- Main control chip: L298N
- Logical voltage: 5V Drive voltage : 5v-35v
- Logical current: 0mA-36mA
- Driving current: 2A(MAX single bridge)
- Storage temperature : - 20 ° to + 135 °
- Maximum power: 25W
- Weight: 30 g
- Peripheral dimensions: 43*43*27mm

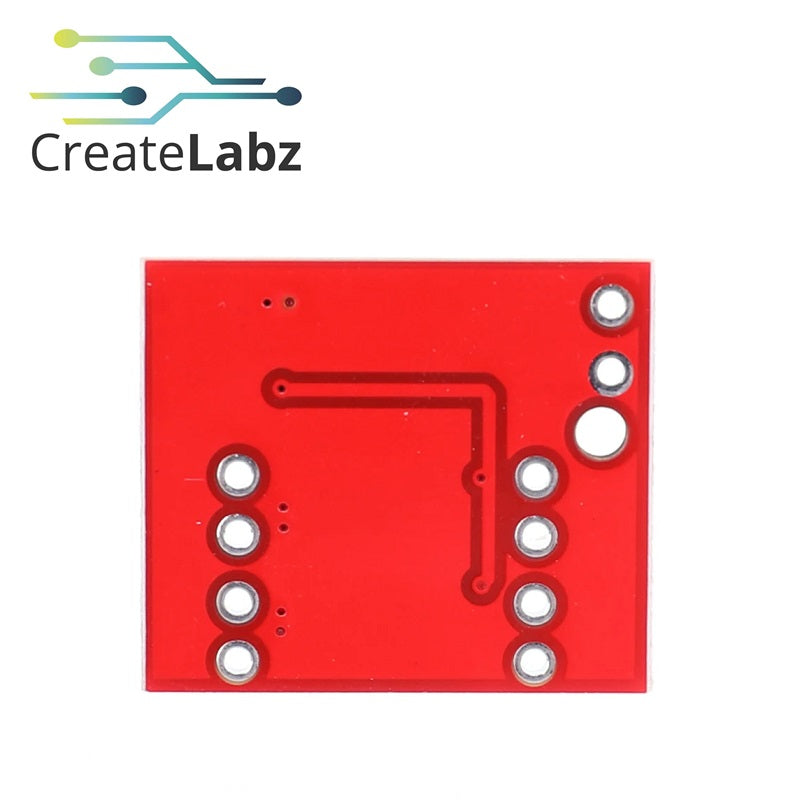

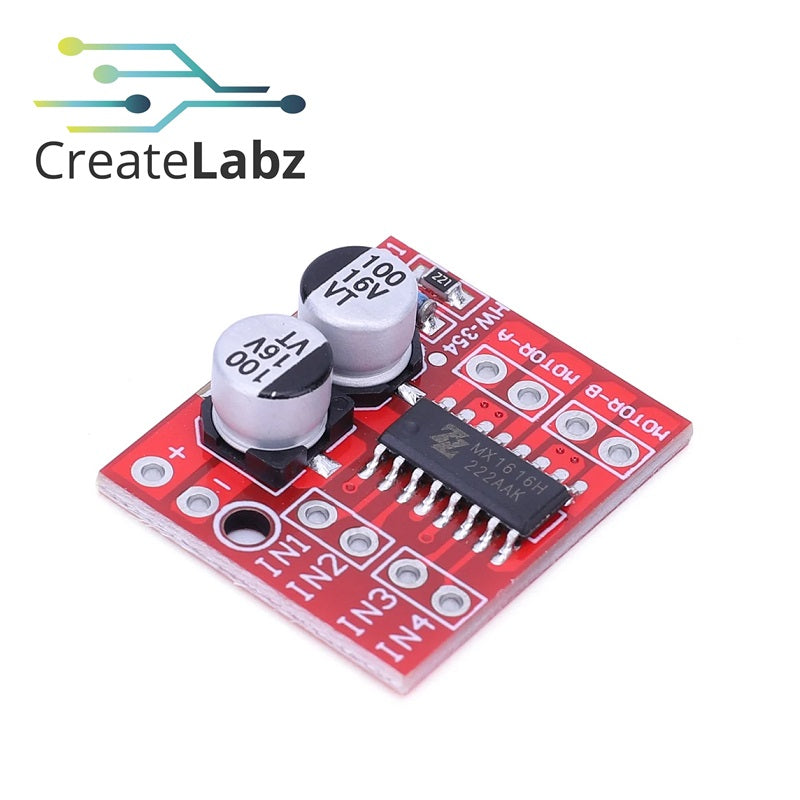

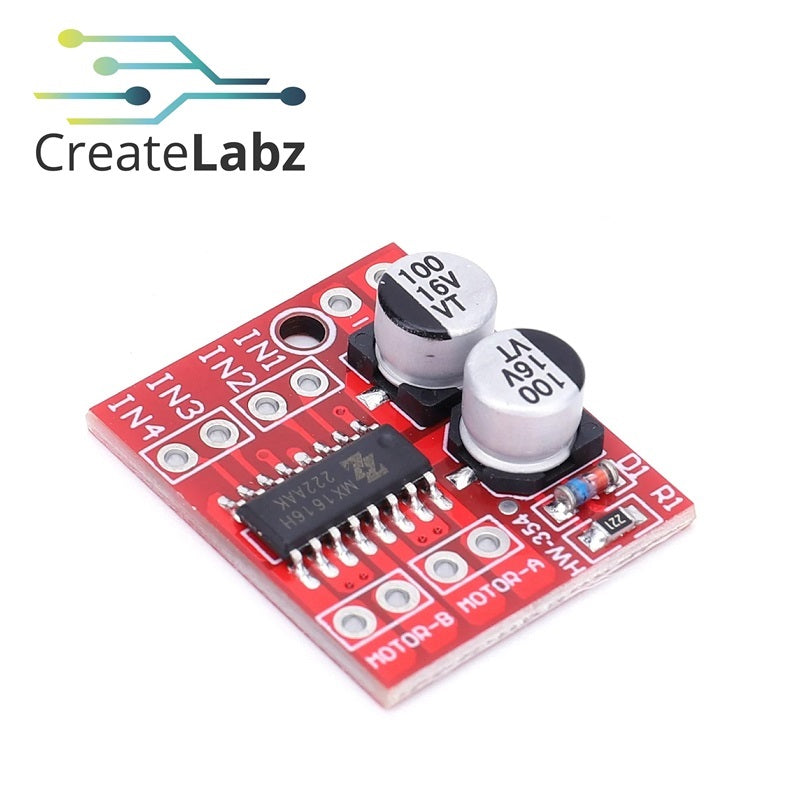

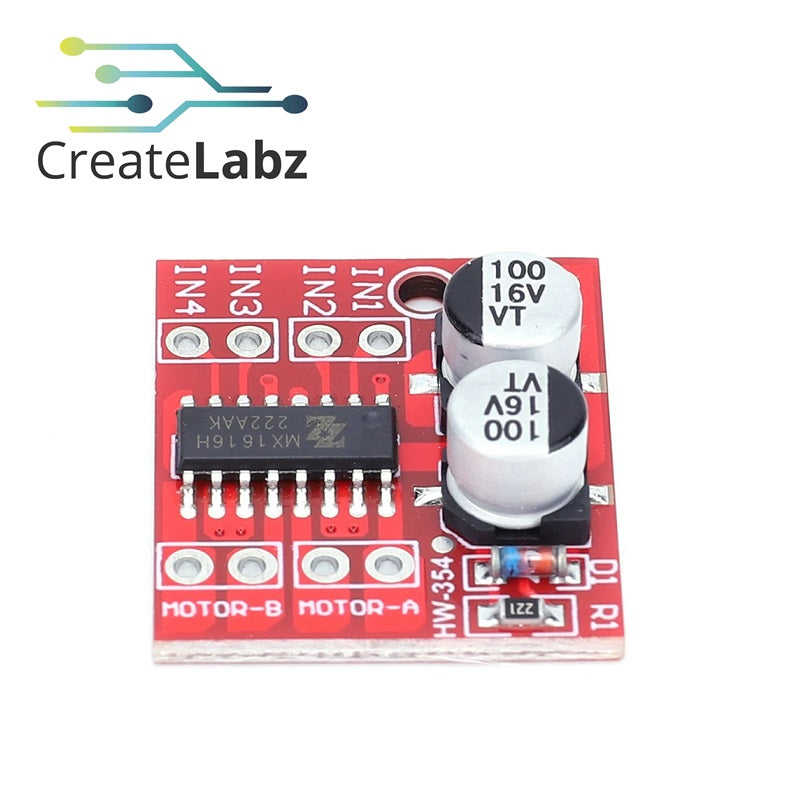

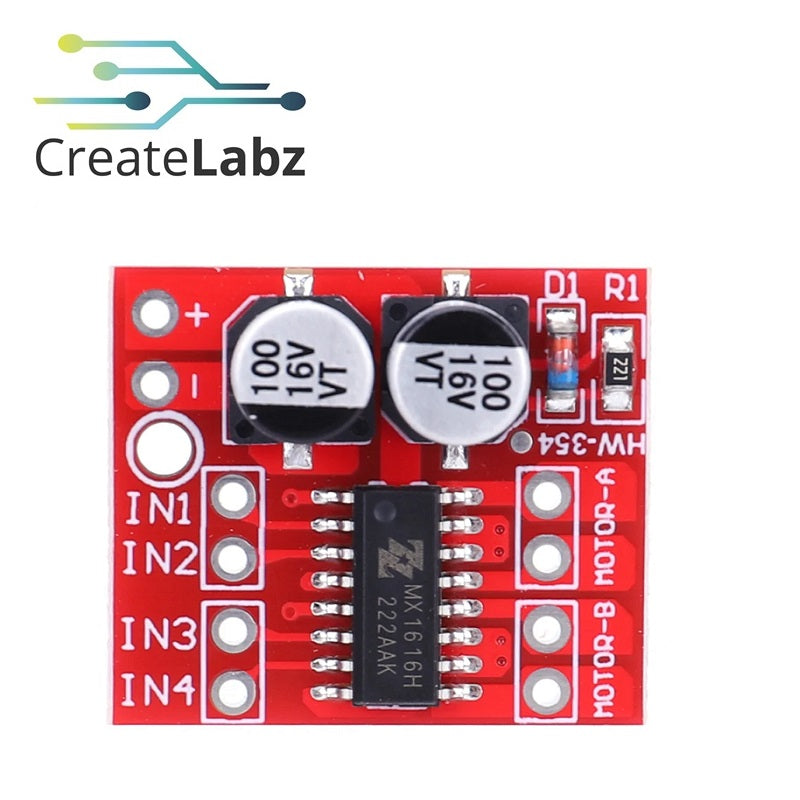

L298N motor driver mini
This motor drive module is ideal for use in battery-powered smart cars, toy cars, and robots. Supply voltage 2V ~ 10V, can drive two DC motors or 4-wire 2-phase stepper motors, can achieve forward rotation or reverse rotation, it is possible to adjust the rotation speed. Each can provide a continuous current of 1.5A, a peak current of up to 2.5A, thermal protection, and can be automatically restored.
Features:
- Dual H-bridge motor driver can drive two DC motors or a 4-wire two-phase stepper motor
- Low standby current (less than 0.1uA)
- Built-in common conduction circuit
- When the input pin is left floating, the motor does not malfunction
- Built-in thermal protection circuit with hysteresis effects (TSD), without worrying about the motor stall
- Small in size
- Lightweight
Specification:
- Supply voltage: 2V-10V
- Signal input voltage: 1.8-7V
- Single Operating current: 1.5A
- Peak current: up to 2.5A
- Mounting hole diameter: 2 mm
- Dimension (L x B x H): 24.7 x 21 x 5mm
NOTE:
- Power positive and negative reversed will certainly cause damage to the circuit.
- Output is shorted to ground or output short circuit, and the motor stall, the chip will heat protection, but in the near or exceeding 10V voltage and the peak current is greater than 2.5A situation can also cause chip burned.
Package Includes:
1x L298N motor driver board module
Note: Product Images are shown for illustrative purposes only and may differ from the actual products.
